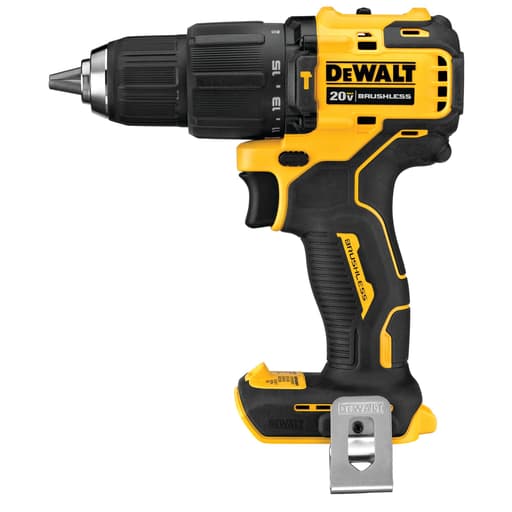

DeWalt ATOMIC 20V MAX 1/2 in. Cordless Compact Hammer Drill/Driver

A compact hammer drill that fits where others won’t

The Atomic compact hammer drill has lived in my tool bag for several months now, and it’s become the one I reach for when I’m crawling into cabinets, up on a ladder, or trying to get a hole started in a crowded stud bay. It’s built around a brushless 20V motor in a body that’s about 6.9 inches front-to-back, and that short length is the headline feature. In tight spaces, it makes a difference.

This is the tool-only version, so you’ll need your own 20V MAX battery and charger. I used it mostly with 2.0Ah and 5.0Ah packs; both pair well, though they change the balance and intended use a bit.

Below are my takeaways after using it for carpentry punch-list items, light electrical rough-ins, and the occasional masonry task.

Build, ergonomics, and controls

• Size and weight: At around 4 lb bare, it’s not featherweight, but for a hammer drill it feels compact and maneuverable. The short nose lets you square up to work in places where mid-size drills won’t fit.
• Grip and balance: The handle shape is classic DeWalt—comfortable, slightly rubberized, and grippy without being tacky. With a compact 2Ah battery the balance sits right above the trigger, which keeps fatigue low for overhead work. With a 5Ah pack it shifts rearward but remains well-controlled.
• Chuck: The 1/2 in. keyless, ratcheting chuck grabs bits securely, including smooth-shank bits. On my first sample, I noticed visible runout when spinning a long driver; I exchanged that unit and the replacement has been solid, with no confidence-sapping wobble. If you buy one, give the chuck a quick runout check before you put it to work.
• Controls: A two-speed gearbox (0–450 / 0–1650 RPM) and a variable-speed trigger provide predictable control. The mode ring toggles between drill, drive, and hammer modes. The clutch settings engage positively and slip consistently.
• Lighting: The LED foot light does a good job illuminating the immediate work area. It’s not a spotlight for deep holes, but for cabinet work and fasteners it’s effective, and it doesn’t cast much shadow from the chuck.
• Belt clip: Simple, sturdy, and properly placed. It holds on to a tool belt or a back pocket without grabbing fabric.

Performance in wood and metal

In low gear, the Atomic compact hammer drill is a confident driver. It sets 3–3.5 in. construction screws into SPF without complaint and maintains control in sheet goods and hardware installation. The trigger response is linear, which makes it easy to feather into delicate work like cabinet hinges and electrical boxes.

Switch to high gear and you’ll get the speed you want for twist bits up to about 3/8 in. in wood and thinner steel, but you do trade away torque. Like most compact hammer drills in this power class, it will stall on larger hole saws and heavy augers if you lean on it. The clutch and electronics intervene gracefully when you hit its limits—more of a polite stop than a harsh jerk—so there’s less wrist shock than with some compact drills.

For a quick sense of capacity:
- Driving fasteners: 2 to 3.5 in. screws are its sweet spot. For long structural screws or lags, I reached for an impact driver or a higher-torque drill.
- Boring holes: Spade bits up to 1 in. and augers up to 7/8 in. in softwood were comfortable in low gear. A 2 in. hole saw through 1/2 in. ply is doable with a steady hand, but it’s not the right tool for repeated large hole cutting.
- Metal drilling: In 1/8 in. mild steel, using quality cobalt bits and oil, it holds speed well up to 3/8 in. Keep it in low gear and let the bit do the work.

DeWalt lists 340 UWO and a top speed of 1650 RPM, and the real-world feel lines up with those numbers: fast enough for everyday drill tasks, with torque that’s appropriate for a compact form factor, not a mid-size bruiser.

Light masonry and hammer mode

Hammer mode delivers a listed 28,050 BPM, and it’s effective for the kind of masonry tasks a compact hammer drill is meant for:
- Tapcon pilot holes in mortar or brick
- Anchors for conduit clips and light fixtures
- Occasional holes in pavers or block for landscaping hardware

In clay brick and mortar joints, 3/16 to 1/4 in. holes went cleanly with proper masonry bits. In poured concrete, it will do the job for smaller anchors if you’re patient, but this is not a rotary hammer and shouldn’t be treated like one. If you regularly need to drill 3/8 in. holes in cured slab, a SDS-Plus rotary hammer is the better choice.

Vibration is reasonable for a compact hammer drill. The motor and hammer mechanism don’t transmit excessive buzz into the handle, so you can keep a steady grip without white-knuckling.

Clutch, precision, and bit retention

The clutch is well-calibrated for light finish work. Setting cabinet screws, electrical device screws, and hardware feels consistent, and the clutch breakaway point doesn’t wander as the battery discharges. I appreciate that subtle consistency on punch lists.

Bit retention from the ratcheting chuck has been excellent with hex-shank and round-shank bits alike. The knurling provides a good grip for hand-tightening, and I haven’t had a bit slip mid-cut. Again, do check for chuck runout on your unit—compact drills can be more finicky here, and a clean-spinning chuck pays dividends in accuracy.

Runtime and battery pairing

Brushless efficiency helps, but as with any compact, runtime depends on the battery you choose:
- 2.0Ah pack: Best for overhead and tight-space work. Keeps the tool nimble. Expect a morning’s worth of light fastening and small holes. For lots of drilling in masonry, you’ll drain it quickly.
- 5.0Ah pack: Extends runtime substantially and gives a small bump in sustained power. The added weight is noticeable but still manageable.

For mixed drilling and driving on a renovation day, one 5Ah and one 2Ah battery was a good pairing for me—use the 2Ah when you need compactness, swap to 5Ah for longer drilling sessions.

Noise, heat, and maintenance

Noise levels in drill and drive modes are unobtrusive. Hammer mode adds the expected percussion and raises the pitch, but it’s still quieter than most rotary hammers. Under heavy, continuous loads in low gear, the motor housing gets warm, not hot. Give it a minute between back-to-back hole-saw cuts and it stays in the comfort zone.

Maintenance is minimal: brushless motor, no belts, and the external surfaces wipe clean easily. Keep the chuck jaws free of dust, especially after masonry work, and it continues to clamp well.

What I’d change

• More torque headroom in high gear would broaden its drilling envelope with larger bits. It’s a compact class limitation, but the jump between low and high feels wide when you’re on the edge of a task.
• Quality control on chuck runout could be tighter. My first unit had noticeable wobble; the replacement has been accurate. It’s an easy return, but worth noting.
• A more focused LED option (or a low/high setting) would help for deep holes and darker work areas.

Best use cases

• Finish carpentry, cabinet installation, and hardware
• Service work where access and one-handed operation matter
• Light electrical and plumbing tasks in occupied spaces
• Occasional masonry anchoring in brick, block, and mortar

If your daily work involves frequent large hole saws, long timber screws, or drilling anchor holes in cured concrete, step up to a mid-size drill or a rotary hammer. The Atomic compact hammer drill complements those tools; it doesn’t replace them.

The bottom line

The Atomic compact hammer drill is a well-balanced, space-conscious driver/drill with a competent hammer mode for light masonry. It’s easy to control, comfortable to use, and delivers the right mix of speed and torque for everyday tasks in wood, metal, and the lighter end of masonry work. Its compact footprint is its superpower; that short nose gets you into places where even other “compact” hammer drills struggle.

Recommendation: I recommend this tool to tradespeople and serious DIYers who value compact size and control over brute force. Pair it with a compact 2Ah battery for trim and service work, and keep a 5Ah on hand when you need more runtime or sustained drilling. If your work skews heavily toward large fasteners, big hole cutting, or routine drilling in cured concrete, you’ll be better served by a higher-torque drill or a dedicated rotary hammer—and keep this Atomic as your lightweight, go-anywhere partner.
