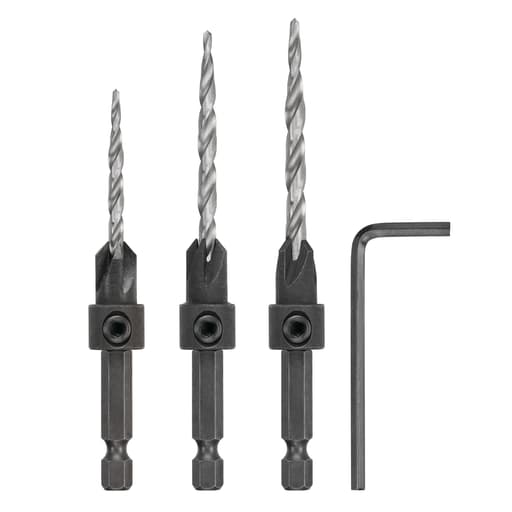

DeWalt 3 Pc. Countersink Set (#6, #8, #10)

Why I reach for a combo countersink

I reach for combination drill/countersink bits constantly in the shop. One tool that pilots, countersinks, and counterbores in a single pass keeps assembly moving and the finish looking clean. On paper, this DeWalt countersink set promises exactly that: three tapered bits sized for common wood screws (#6, #8, #10), a four-cutter countersink for crisp rims, and replaceable drill sections to extend life. After using it across several small furniture and trim projects, I’ve got a balanced take: it can be fast and tidy in softer woods and straightforward applications, but there are durability and retention quirks you’ll want to understand before you commit.

Design and setup

The set is built around a 1/4-inch straight shank that fits standard drill chucks, backed by high-speed steel tapered bits captured in a steel countersink/counterbore body. The countersink has four cutting edges rather than the two you often see, and that geometry matters—it tends to chatter less and leaves a cleaner rim. Depth is set by sliding the countersink head along the tapered bit and tightening small set screws. Replacement tapered bits are easy to source and install.

A few notes from setup:

• Shank and compatibility: The straight 1/4-inch shank runs fine in both 3/8-inch and 1/2-inch drill chucks. If you’re using a quick-change holder, make sure your holder positively grips smooth round shanks; some rely on sleeves that can slip under heat and torque.
• Adjustment: The set screws clamp on a round section of the tapered bit. It makes fine-tuning the projection simple, but it also means the clamping force is doing a lot of work with limited surface to bite.

In use: speed, finish, and chip control

In pine, poplar, and plywood, the set is fast. The tapered pilots feed easily without walking, the countersink produces a neat, symmetrical cone, and the two-diameter geometry makes short work of quick cabinet assemblies. The four-cutter head earns its keep here: even across reversing grain at ply edges, I got crisp edges with minimal fuzz. In softer hardwoods like alder and cherry, results were similarly tidy.

Hard maple and white oak told a different story. The tapered pilots still cut straight, but heat builds quickly in dense stock. Run too fast or push too hard and you’ll feel the countersink start to squeal and the chips pack in the flutes. Backing out to clear chips every hole or two, dropping the speed, and waxing the flutes mitigated that. Finish quality in hardwood remained good, but feed pressure needed to be moderated to keep things smooth.

The counterbore function is useful when you want to plug a hole. With the head set deeper on the bit, I could bury a screw beneath the surface and plug it later with a 3/8-inch dowel. It’s not a dedicated plug-cutter system, but it’s handy for furniture base rails and face frames.

Bit life and sharpness

The bits are high-speed steel (HSS). In softwoods, they hold up fine for a weekend of trim or a couple of shop projects. In hard maple and oak, I noticed the leading edges of the tapered pilots dulling sooner than I’d like—by the time I’d drilled 40–50 holes in maple rails, feed rate slowed and heat climbed. A quick touch-up with a small slipstone on the pilot and a deburr on the countersink flutes brought performance back, but this isn’t a set I’d choose for heavy, repeated hardwood use without expecting some maintenance or replacement.

Retention and durability concerns

Two areas deserve attention: how the bit is retained in the countersink head, and how the assembly interfaces with the drill.

• Set screw grip: Because the screws bite onto a round tapered bit, aggressive feed or full-depth pre-drilling can coax the bit to creep. I ran into this when I used the #8 setup to pilot deep into 8/4 maple for lag screws; after a dozen holes, the projection shortened by a millimeter or two. Retightening with a dab of blue thread locker on the screws helped, as did scuffing a tiny flat where the screw contacts the bit. Still, it’s a design compromise—easy adjustability versus mechanical security.
• Side loading and breakage: Drilling at an angle (toe-screws into framing or face-frames) puts lateral stress on a very slender tapered pilot. In pine it was fine; in oak I snapped one when I got sloppy with alignment. This is true of many tapered pilots, but with this set the margin for error felt smaller than on heavier, single-piece countersinks.
• Shank interface and quick-change use: In a standard chuck, the 1/4-inch shank held securely and never slipped. However, when I paired the bit with a quick-change accessory that relies on a sleeve or collar to present a hex profile, the interface loosened after extended use and heat. If you rely on rapid bit changes, choose a holder designed to clamp round shanks, or stick with the drill chuck.

As a whole, the assembly is best treated as a precision cutter, not a beater. If you push it like a construction bit, its weak points show up fast.

Adjustability and replaceable parts

Adjusting the countersink depth is simple and repeatable. The replaceable tapered pilots are a meaningful advantage: when you do eventually dull or snap a pilot, you don’t have to toss the entire head. I like that I can keep a couple of spare pilots in the kit and swap them in minutes. Do make sure you clean the bore and seat the pilot fully before tightening—any chips trapped inside translate into runout and chatter.

Real-world applications

Where this set performed best for me:

• Cabinet carcase assembly in plywood with #8 screws
• Face frames and trim in softwood and softer hardwood
• Pre-drilling for pocket-screw plugs where I wanted a clean countersink face
• Light furniture assembly where I needed countersinks for #6 screws

Where I’d reach for something else:

• Repeated angled drilling (toe-screwing) in hardwoods
• High-volume runs in dense stock where heat and dulling accumulate
• Situations requiring a positive mechanical stop collar to control depth absolutely

Tips for better results

• Slow the drill down. 1,200–1,800 RPM in hardwood, 2,000–2,500 in softwood is a good starting point.
• Clear chips frequently. Peck the hole, especially in hardwoods, to keep the flutes from packing.
• Wax the flutes. A swipe of paste wax or paraffin reduces heat and improves cut.
• Tighten smart. Clean the pilot and bore, then snug the set screws firmly. Consider a tiny flat for the screws to bite if you’re seeing creep.
• Avoid side-loading. Keep the drill aligned; for toe-screws in hard stock, pre-drill with a straight bit and follow with a separate countersink.

Alternatives to consider

If you need rock-solid retention and durability for daily hardwood work, a one-piece countersink with a fixed or collet-held pilot and a stop collar tends to be more robust, though less convenient to adjust. Self-centering hinge bits (Vix-style) are better for hardware but don’t replace a true tapered pilot for screw holding. There are also premium countersink systems with replaceable pilots that use positive flats or collet clamps—those cost more but handle side-loads and heat better.

Bottom line

This DeWalt countersink set is fast and clean in softwoods and general shop tasks, with the convenience of a tapered pilot, four-cutter countersink, and replaceable bits. Its limitations show up under side-load, heat, and heavy hardwood use: the tapered pilots can snap if angled, sharpness fades faster in dense stock, and the set-screw/round-shank interface can creep under high load. Treat it as a finesse tool and it performs; treat it like a framing bit and it protests.

Recommendation: I would conditionally recommend this set for occasional to moderate use in softwoods and lighter hardwood tasks—trim, cabinetry, and general shop projects—especially if you value the clean finish of a four-cutter countersink and the convenience of replaceable pilots. If your work involves frequent toe-screws, dense hardwoods, or high-volume runs, I wouldn’t recommend it; invest in a more robust countersink system with a more secure pilot retention method and a positive stop.
