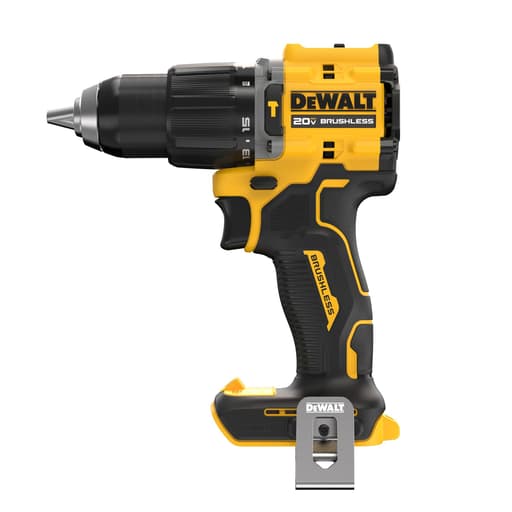

DeWalt ATOMIC 20V MAX 1/2 in. Hammer Drill

I spent the past few weeks putting this compact hammer drill to work on a punch list that ranged from cabinetry installs to setting Tapcons in a garage slab. What surprised me most wasn’t a single headline spec, but the way the size-to-power equation plays out in daily use. This is a small drill that rarely feels like a compromise—until you ask it to be something it’s not.

What stands out

• Compact, go-anywhere form factor. At roughly 6.5 inches long and about 2.5 pounds bare, it goes places full-size hammer drills struggle. Between studs, under sinks, overhead—no drama.
• Strong output for its size. Paired with a decent 20V MAX pack, the brushless motor delivers meaningful torque and up to 1,650 RPM. The “585 UWO” rating isn’t directly comparable to torque numbers, but in the real world it translates to confident drilling and sinking fasteners without feeling anemic.
• Legit light-masonry capability. The hammer mechanism (up to 28,050 BPM) is effective on smaller anchors, which is really what most users need from a compact hammer drill.

Wood, metal, and everyday driving

I ran it through softwood framing with spade and auger bits, shelf installs, and a batch of cabinet handles in hardwood. In low gear, hole saw starts are controllable; in high gear, twist bits clear chips cleanly. The trigger is nicely linear, so creeping a fastener in or feathering a bit to start on a mark is easy. The 15-position clutch engages predictably—no lurches—so I could dial in cabinet screws without snapping the smaller ones.

On sheet metal, a fresh step bit and high gear worked as expected; I didn’t have to lean on the tool to maintain speed. For larger wood holes and self-feeding bits, stay in low gear and let the drill work—force it and you’ll trip protection or stall. That’s not a knock; it’s the reality of a compact, short-head drill without an auxiliary handle.

Concrete and masonry

This isn’t an SDS-plus rotary hammer, and it doesn’t pretend to be. Within its lane, though, it’s genuinely useful. I drilled 3/16- and 1/4-inch holes for concrete screws in cured slab and block. With quality carbide bits and high gear in hammer mode, holes start quickly and eject dust well. It’s most comfortable on the smaller anchors you use for strapping, shelves, electrical clips, or light plumbing brackets.

Two practical tips:
- Let the hammer action do the work. Press just enough to maintain bit engagement, and clear the flutes periodically to reduce heat.
- For harder aggregate or larger diameters, step up or grab an SDS-plus. You’ll finish faster, and you won’t beat on a compact drill that wasn’t built for heavy repetitive masonry.

Ergonomics and control

DeWalt’s handle geometry here is excellent. The grip sits naturally, and with a compact 2.0Ah-style battery it’s well-balanced for overhead work. With a 5.0Ah pack, it gets tail-heavy but runtime obviously improves. The electronic brake stops the chuck quickly, which helps with accuracy on layout-critical tasks.

There’s no auxiliary handle, so mind kickback when a bit binds. In low gear with larger spade bits or hole saws, brace the tool against your body or a joist when possible and keep your wrist neutral.

Chuck and bit retention

The 1/2-inch ratcheting chuck has solid bite and minimal runout in my sample. Long bits spun true enough for dowel alignment and hinge drilling. It’s easy to snug one-handed, and I didn’t experience loosening on repeated forward/reverse cycles when removing stubborn fasteners. As with any drill, especially compact ones, avoid shock-loading the chuck with sudden stalls; that’s what loosens jaws and stresses fasteners inside the nose.

A quick habit that helps: give the chuck a final click-tighten after the first light snug. That extra click keeps smooth-shank bits from creeping under vibration in hammer mode.

LED and on-tool details

The work light is bright for its size and well-placed, illuminating the bit tip without casting a strong shadow in typical cabinet and under-sink scenarios. The belt hook is sturdy and reversible. The mode selector ring clearly distinguishes clutch driving, regular drilling, and hammer drilling, so you’re less likely to strip screws by accidentally staying in drill mode.

Battery pairing and runtime

Because this is sold as a bare tool, your battery choice matters. Here’s what I noticed:
- Compact packs keep the balance superb and are great for punch-list work, hardware installs, and periodic Tapcon holes.
- Larger packs extend runtime significantly and help the tool feel more planted on bigger hole saws, but add bulk.

To get the best performance envelope—snappier starts and fewer stalls—use a healthy pack with good discharge characteristics. DeWalt’s higher-capacity packs and their newer compact “stacked” cells both pair well here.

Heat and protection

The brushless motor and electronics manage heat sensibly. Under repeated large-bit drilling in low gear, the housing got warm but never alarming. If you lean too hard, it will politely ask you to back off by slowing or stalling. That’s your cue to drop the feed pressure, sharpen the bit, or change the approach. I didn’t notice any hot electrical smell or sparking under normal loads, even during extended Tapcon runs.

A note on misuse: this is not a mixing drill. High-viscosity materials like drywall mud or thinset impose sustained torque loads and impulse spikes that compact drills aren’t intended to handle. If mixing is on your docket, use a dedicated mixer or a high-torque drill with an auxiliary handle.

Durability and serviceability

Over the test period, nothing loosened up, and there were no odd noises from the gearbox. The clutch remained consistent, and the chuck kept its bite. Like most pro-grade tools today, the expectation is that you’ll keep your receipt and note the date code if you ever need warranty service. DeWalt’s 3-year limited warranty, 1-year free service, and 90-day satisfaction policy apply here, and service centers handle repairs. Keep the tool clean, occasionally blow out dust from the vents, and don’t soak the chuck in solvents.

What it’s best at

• Tight-quarter drilling and driving where a full-size drill won’t fit
• Batch cabinet hardware, pocket holes, and general carpentry
• Light to moderate masonry anchors in the 3/16–1/4 inch range
• Everyday homeowner and pro service work where portability matters

Where it’s not the right choice

• Heavy, repetitive concrete drilling (step up to an SDS-plus rotary hammer)
• Mixing high-viscosity compounds
• Large-diameter hole saw work in dense materials for extended runs (a high-torque drill with an auxiliary handle is safer and faster)

Buying considerations

• It’s sold as tool-only. Budget for a battery and charger if you’re not already on the 20V MAX platform.
• If your work is mostly finish carpentry and service calls, a compact battery is fantastic. If you routinely run larger bits or longer sessions, add at least one higher-capacity pack.
• The 1/2-inch ratcheting chuck is a nice upgrade in this compact class—use it with quality bits to get the most out of the power on tap.

Recommendation

I recommend this compact hammer drill to anyone who needs a powerful, small-footprint driver/drill that can credibly handle light masonry without dragging a second tool to the job. It hits a sweet spot: real torque and speed, strong bit retention, and a form factor that actually fits where you need it. Pair it with the right battery and sharp bits, keep your expectations aligned—anchors and everyday drilling rather than heavy concrete or mixing—and it’s a reliable, efficient addition to a 20V MAX kit. If your work leans toward frequent large holes or constant masonry, you’ll be happier with a full-size hammer drill or an SDS-plus; otherwise, this one earns its keep.
