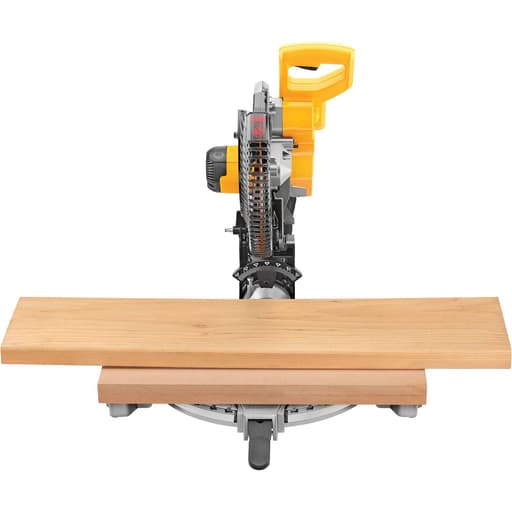

DeWalt 12 in. Double-Bevel Compound Miter Saw

A compact 12-inch workhorse with pro-level angles and approachable manners

Some tools earn their spot on the bench by removing friction from everyday tasks. This 12-inch double‑bevel miter saw did exactly that for me over several weeks of trim, decking, and small-shop projects. It offers the sweet spot of capacity, accuracy, and portability—without the footprint or cost of a slider.

Setup, build, and first impressions

Out of the box, the saw needed a standard tune-up—nothing out of the ordinary. I checked the factory settings with a reliable square and adjusted the fence, bevel zero, and miter detent pointer. The stainless miter detent plate locks positively at common angles (0°, 22.5°, 33.9°, 45°), and the cam‑lock handle with detent override makes it easy to sneak up on non‑standard angles without fighting the detents.

The base and fence machining are clean and flatter than I expected at this price. The tall, sliding fences are straight and square, and they support nested crown and vertical base really well. Some controls and covers are plastic, which helps keep weight down, and while the switchgear doesn’t feel indestructible, the critical parts—the table, pivot, detent plate, and fence—are solid. At roughly 44 lb, it’s light enough to carry one‑handed by the built‑in handle, but it still feels planted on a stand.

My sample includes DeWalt’s XPS shadow line LED, which throws a crisp silhouette of the blade on the workpiece. It’s fast, accurate, and unaffected by blade kerf or alignment—useful on both rough framing lumber and pre‑painted trim. Note: some versions omit this feature, so check your specific model.

Capacity and accuracy where it counts

This saw is unapologetically a non‑slider, but within that lane it stretches capacity smartly:

• 2x10 at 90° and 2x8 at 45° crosscuts with the back‑fence design
• 0°–48° bevels left and right, so there’s no flipping stock for compound cuts
• 0°–50° miter capacity left and right
• Tall fences that handle 6‑1/2 in. base vertically and crown nested

For trim and cabinetry work, those numbers matter. Being able to bevel in both directions saves time on repetitive molding runs, and the 33.9° miter stop is handy for standard crown spring angles. The detents are positive and repeatable; after calibration, I could return to 45° cuts and see consistent results on a digital angle gauge and with test cuts meeting cleanly.

Cut quality out of the box is construction‑grade with the included carbide blade. For finish work, swapping to a high‑tooth‑count 12‑in. blade (80T or so) tightened the cut dramatically—less tear‑out on pre‑finished casing and smoother miters on maple. There’s minimal blade deflection when you let the saw do the work and don’t overfeed.

Power, brake, and motor behavior

The 15‑amp motor spins at around 3,600–3,800 RPM and feels appropriately torquey for a belt‑drive 12‑in. saw. Startup is quick without the violent kick some direct‑drive units have, and under load it keeps pace through LVL rips, PT 2x material, and dense hardwoods like white oak. The belt‑and‑gearbox layout contributes to smoothness and helps with vertical capacity.

My unit has an electric brake that consistently stops the blade in a couple of seconds. It’s a real safety and productivity boost when you’re making lots of sequential cuts. On first runs, I watched for abnormal brush sparking and sniffed for that telltale overheated armature odor—both were fine on my sample. As with any brushed 15‑amp motor, you’ll see a touch of arcing at startup; it should be brief and blue‑white, not sustained or smoky. If you notice persistent sparking or a hot electrical smell, stop and address it under warranty.

Noise is typical for a 12‑in. tool—loud but not shrill. Use hearing and eye protection as usual.

Dust collection: workable with a vac, better with a shroud

The included bag captures a portion of the chips on straight crosscuts, but anything compound or beveled throws dust wide. Hooking up a shop vac made a clear difference, especially when I added a simple hood behind the saw on my stand. The rear port pairs easily with common vac fittings; sealing the connection with a rubber adapter prevents blow‑back. If dust containment is a priority, plan for a vac and consider a shroud/hood—no bag-only setup will keep a 12‑in. miter saw truly tidy.

Controls and ergonomics

• The cam‑lock miter handle is excellent. Flick it open, slide to angle, lock—done. The detent override is intuitive when you’re aiming for 1/2° tweaks.
• Bevel adjustments are straightforward, with clear scales and stops to 48° in both directions. The double‑bevel feature saves a lot of time on mirrored parts.
• The included vertical clamp is genuinely useful; the threads are quick and it seats securely without shifting the workpiece.
• Sightlines are good, and the blade guard is predictable in operation—not grabby on small offcuts when you respect minimum piece sizes.
• The carrying handle and overall balance make it comfortable to move between truck and stand.

A miter saw stand is worth it here. Even though the saw is manageable on a bench, proper outfeed support and repeat stops multiply its accuracy and speed.

Reliability, maintenance, and compatibility notes

• Brushes are accessible, and the belt drive is serviceable. Keep the rails and detent plate dusted, and blow out the motor periodically.
• The arbor is 1 in., which is common for 12‑in. blades. If you’re migrating blades with 5/8 in. bores, use proper bushings and double‑check balance.
• The stainless detent plate resists wear well. I didn’t see slop develop during testing, and the fence stayed true once set.
• Warranty coverage is solid: a 3‑year limited warranty, 1 year of free service, and a 90‑day satisfaction period. If you rely on service centers, confirm proximity; shipping a 44‑lb tool isn’t fun.

What it does best—and where it falls short

Strengths:
- Accurate, repeatable angles with a robust detent system and cam‑lock
- Double‑bevel convenience without a slider’s size, weight, and complexity
- Tall fences that genuinely help with crown and base
- Portable and well‑balanced for jobsite moves
- Shadow‑line cut indication (if your version includes XPS) is more precise than laser pointers

Limitations:
- Not a slider; if you routinely need to crosscut wider than 2x10, you’ll want a sliding saw
- Dust collection is average without a vac/hood
- Some components are plasticky; durability is fine in critical areas, but it’s not a tank
- The included blade is a starter; upgrade for finish work

The bottom line

I like this saw because it hits a practical target: real 12‑inch capacity, double‑bevel versatility, and dependable accuracy in a compact, affordable package. It’s ideal for trim carpenters, remodelers, and serious DIYers who value consistent angles and nested molding support more than the extra width of a slider. Pair it with a good stand, a quality finish blade, and a shop vac, and it punches above its weight.

Recommendation: I recommend this saw for anyone who needs accurate, repeatable miters and bevels in a portable 12‑inch format, especially for trim and general carpentry. If your work demands frequent crosscuts wider than 10 inches, or you require top‑tier dust capture without add‑ons, a sliding model or a saw with a more comprehensive collection shroud will suit you better. Otherwise, this is a reliable, space‑savvy choice that earns its keep on site and in the shop.
