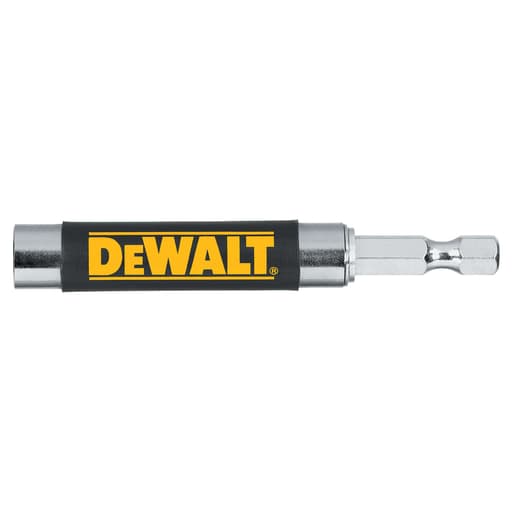

DeWalt Magnetic Drive Guide (Compact)

Why I reached for this drive guide

I probably use a magnetic bit holder more than any other accessory in my kit. A compact guide that helps me start screws cleanly and keeps them from wobbling is worth its weight in stripped fasteners avoided. After a steady run of cabinet installs, bracket mounting, and some light framing punch-list work, I put this compact magnetic drive guide through its paces on both a drill/driver and an impact driver. It’s a simple accessory that solves an everyday problem, and it largely delivers—though not without caveats.

Setup and first impressions

This guide is a straightforward 1/4-inch hex accessory: snap it into your chuck, pop in a 1-inch insert bit, and you’re off. The self-retracting sleeve is the headline feature. It slides forward over the screw head to corral it, and retracts automatically as you drive. Out of the box, the sleeve on my unit moved smoothly with just enough resistance to stay where I set it. The overall size is, as advertised, compact—short enough to stay out of the way in cabinets and between studs, but long enough to keep my fingers clear of the chuck.

The magnet centers and retains standard 1-inch insert bits reliably. I swapped among #2 Phillips, T20/T25 Torx, and square bits without any slop. If you’re accustomed to 2-inch “power bits,” note that this guide is designed for the 1-inch inserts; 2-inch bits won’t play nicely with the sleeve.

In use: faster starts and less wobble

The sleeve does what it’s supposed to do. When I’m starting screws one-handed—perched on a ladder or holding a level with the other hand—the sleeve captures the screw head and keeps the bit tip planted. That means fewer cam-outs and fewer chewed screw heads, especially with Phillips fasteners. With Torx and square-drive screws, the guide feels like a cheat code for speed: align, press the sleeve, go.

The wobble reduction is most noticeable with longer screws and when running in at an angle. The sleeve gives you a “pilot” that keeps the screw head from skating, and the bit runs truer as a result. It doesn’t turn your drill into a screw gun, and you can still induce wobble with aggressive side-load, but the improvement is real compared to a bare magnet holder.

Magnetic hold: good, not great

The magnet is strong enough to hold a typical #8 or #10 screw on the bit while you position the driver. In vertical and slightly overhead work, it’s adequate. Where it shows limitations is with heavier fasteners or in full overhead scenarios: gravity wins. The sleeve helps here by physically trapping the screw head, but if you’re expecting the magnet to suspend a 3-inch structural screw upside-down on its own, you’ll be disappointed.

I also noticed that oily-coated or stainless screws don’t “stick” as confidently as standard zinc screws. That’s normal with magnets, but it’s worth knowing. My workaround is to rely more on the sleeve and less on the magnet when working overhead or with slick fasteners: capture the head with the sleeve, get the tip started in the pilot hole, then keep steady pressure as you drive.

Bit changes and workflow

One quiet advantage of using a compact guide is how quickly you can swap bits without backing a long accessory out of the chuck. This one makes that workflow smooth. I keep a small bit strip in a pocket, and switching from a T25 to a #2 Phillips is a one-handed pluck-and-push. There’s no quick-release collar here—just friction and the magnet—but retention is secure. Bits don’t fall out, and they don’t take two hands and a prayer to remove.

Because the guide is short, it doesn’t add a lot of leverage or length to the tool. That’s great in tight cabinets where a 6-inch holder is clumsy, and it also keeps your sightline clear. On the flip side, the compact length doesn’t help you reach past deep face frames or into recesses—if you need reach, bring an extension.

Accuracy and feel

Runout (the tiny eccentricity you feel as a bit spins) is minimal on my sample. There’s always going to be a hair of play between the bit and the holder, but I wasn’t fighting visible wobble from the tool itself. The sleeve contributes to accuracy by limiting side-to-side drift as you start the screw. I also appreciate that the sleeve’s face is flat and broad enough to stabilize on the work surface without marring paint or veneer, provided you don’t grind it in.

One tip: don’t force the sleeve all the way down at the start. Let it float against the screw head, pull the trigger lightly, and let the screw pull itself home. The sleeve retracts as you drive, keeping everything aligned without binding.

Durability and maintenance

After a few weeks of use, the sleeve still retracts cleanly and hasn’t developed sloppy play. The magnet hasn’t weakened. The shank shows normal scuffing from chuck jaws, nothing unusual. Realistically, this is a wear item—drop it on concrete often enough or let drywall dust cake the sleeve and you’ll compromise performance.

A couple of basic habits help it last:
- Keep the sleeve channel clean. A quick blast of compressed air clears sawdust and drywall fines that can make the sleeve gritty.
- Avoid prying with it. It’s a bit holder, not a lever.
- Use good insert bits. Cheap, soft bits deform and cause extra friction in the holder.

Where it shines—and where it doesn’t

Use it for:
- Fast, one-handed screw starts in cabinets, brackets, and hardware installs.
- Reduced cam-out on Phillips screws.
- Working in tight spaces where a long bit holder gets in the way.
- Quick bit swaps during mixed fastener runs.

Skip it for:
- Heavy structural screws overhead where you want a truly aggressive magnet or a dedicated collated system.
- Deep recesses that require a long extension.
- Nut-driving—this is for insert bits and screw heads, not hex nuts.

Comparisons and value

There are fancier holders with quick-release collars and longer shanks, and there are “impact-rated” versions with beefier sleeves. This compact guide splits the difference with simplicity and size. If you primarily install cabinets, hardware, or electrical boxes, a compact guide is more useful day-to-day than a 6-inch holder. If you’re framing all week or hanging deck boards overhead, you might prefer a longer, more aggressive guide or one with a true locking feature.

As for value, it’s an inexpensive upgrade that buys you smoother starts and cleaner finishes. You’ll feel the benefit most with Phillips screws and in awkward positions. If your work is mostly bench-height and Torx-driven, the gains are smaller but still noticeable.

Gripes and small wins

Gripes:
- The magnet could be stronger. It’s fine for typical interior screws, less impressive overhead or with heavier fasteners.
- The compact length limits reach. Fair trade-off, but worth noting.
- With gloves, the sleeve can be a little slick; knurling or a textured collar would help.

Small wins:
- The sleeve genuinely protects fingertips. On cold mornings or with delicate finishes, that matters.
- It reduces the “walking” you get on painted or prefinished surfaces.
- Bit changes are quick and reliable, with no fiddly mechanisms to jam.

Recommendation

I recommend this compact magnetic drive guide for anyone who installs hardware, cabinets, fixtures, or does general interior carpentry and punch-list work. It’s small, simple, and it improves the part of the job that most often wastes time: starting screws cleanly and driving without wobble. The sleeve is the star—it steadies the bit, protects your fingers, and makes one-handed starts far easier. The magnet is adequate but not exceptional; if your work demands holding heavy screws upside-down, look for a stronger magnet or a different style of guide. For most day-to-day tasks, though, this guide earns a permanent spot in the pouch because it speeds up the workflow and reduces mistakes without getting in the way.
