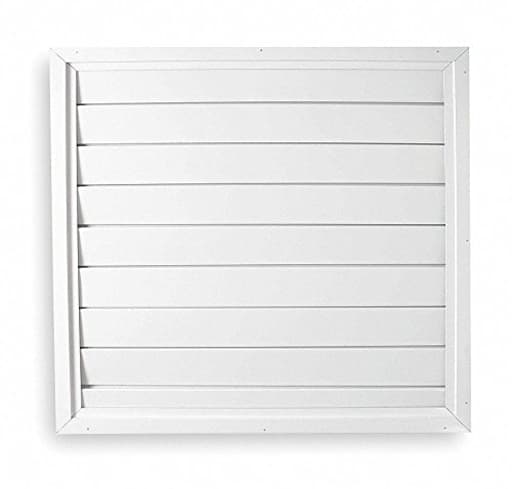

Dayton 36" Whole House Fan Economy Ceiling Shutter/Ceiling Shutter, 34" x 34" Opening Required

What it is

The Dayton 36-inch ceiling shutter is a simple, economical way to finish off a whole-house fan opening. It’s a passive set of louvers that sit in your ceiling and swing open when the fan is running, then fall closed when the fan stops. Mine fit a 34 x 34-inch rough opening and arrived in a clean white finish that blends with standard ceilings. To be clear, this is the shutter assembly only—no motor or fan—so you pair it with an existing or new whole-house fan.

Installation experience

I installed it as a replacement for an older louver that had seen better days. My opening was not a perfect 34 x 34 due to a previous 36 x 38 unit, so I had to square and resize the framing. Shimming the opening to true square made the biggest difference in how smoothly the louvers operate. Once square, the shutter dropped in without a fight.

A few notes from the process:
- Fasteners weren’t included with mine, so plan on wood screws suitable for your framing and some finish washers if you want a cleaner look.
- I added thin adhesive-backed foam weatherstripping on the flange to improve the seal and prevent any minor rattles.
- Check that the louvers swing freely before final tightening. A slightly twisted frame will keep them from closing reliably.

All told, the install took under an hour, most of which was spent squaring the opening and painting the trim ring to match the ceiling. If your opening is already 34 x 34 and true, this is a straightforward swap.

Build and design

This is an “economy” shutter, and that’s accurate: simple sheet-metal louvers on piano-style hinges with coil springs to assist closure. The white enamel finish is even and presentable. Edges are decently hemmed, though I still wore gloves when handling it overhead—there are a few spots where you can feel the raw cut edge.

The louvers sit flush and align well within the frame. The spring tension on mine was set properly from the factory. If you’re picky about air sealing, note that there’s no insulated core or heavy gasket; this is a basic gravity/spring-closed design. You can, however, improve the seal with thin foam tape around the perimeter (as I did) without impeding operation.

Performance in use

With the fan running, the louvers swing open smoothly and fully. They don’t chatter or flap at typical whole-house fan speeds, and the metal feels stiff enough that it doesn’t oil-can under pressure. The opening area is generous for a 36-inch class fan, and I didn’t notice any significant restriction compared to my previous louver.

When the fan powers off, the louvers settle closed in a second or two. On my first test, one blade hesitated and left a small gap. The fix was simple: loosen the mounting screws, square the frame, and lightly lubricate the hinge pins with a silicone-safe spray. After that, the louvers closed reliably every time. If your fan has any backdraft or attic air movement, you may also want to verify that your attic ventilation doesn’t hold the blades open slightly.

Noise-wise, the shutter itself is unremarkable—which is what you want. There’s no squeak, clank, or rattle as long as the frame isn’t skewed. During operation, the dominant sound is from the fan motor and airflow, not the shutter.

Air sealing and energy considerations

This is the area where economy shutters typically show their limits. The Dayton closes cleanly, and the overlap between blades is decent, but it’s not an airtight or insulated assembly. If you live in a hot or cold climate and use the fan seasonally, you’ll still want an attic side cover or winterized insulated box when the fan is out of rotation. For shoulder-season use, the stock seal is fine and it does a respectable job of reducing light leaks from the attic.

I measured a modest reduction in air leakage compared to my older, warped louver, mostly due to better blade alignment and the fresh foam I added on the frame.

Fit and compatibility

This shutter requires a 34 x 34-inch rough opening. If you’re replacing an older 36 x 38 unit (a common size from certain older fans), expect to resize the opening with blocking or trim. The flange sits proud of the ceiling by a small lip, which helps hide minor drywall imperfections but also means you should run a bead of caulk if you want a flawless transition.

Because it’s a passive shutter, it should play nicely with most whole-house fans in the 36-inch range. Just make sure the fan’s airflow path aligns with the louver opening and that nothing protrudes into the blade swing.

Durability and maintenance

The finish has held up well so far. I wiped a light film of dust off the louvers after unpacking and again after a few weeks of use. Hinges are basic but adequate; a tiny spritz of dry silicone on install is a good idea. Springs feel stout and seat properly, and I don’t anticipate stretching under normal use.

As with any ceiling shutter, plan on periodic dusting. A microfiber duster or vacuum brush attachment makes quick work of the blades.

What I liked

• Clean, neutral appearance that blends with most ceilings
• True 34 x 34 fit once the opening is squared
• Smooth, quiet operation with minimal fuss
• Simple mechanics that are easy to adjust and maintain
• Reasonable price for a functional replacement

What could be better

• No supplied screws or hardware
• Packaging could be more protective; mine had minor scuffs
• No insulation or substantial gasketing (expected for “economy,” but worth noting)
• Louvers can hang if the frame isn’t perfectly square—install precision matters

Tips for a smoother install

• Verify the opening is both the right size and square; shim as needed.
• Test-fit and operate the louvers before fully tightening the screws.
• Add thin foam weatherstrip under the flange for a better seal and to prevent buzz.
• Lightly lubricate hinge pins with a silicone-safe dry lube.
• If the louvers don’t close after shutdown, re-check for racking and ensure no fastener is pinching the frame.

Who it’s for

This shutter suits homeowners and pros who need a straightforward, budget-friendly replacement for a 34 x 34 opening on a 36-inch whole-house fan. If you prioritize airtightness or off-season thermal performance, you’ll want to step up to an insulated model or add an attic cover. For everyday spring/summer use, the Dayton gets the job done without drawing attention to itself.

Final recommendation

I recommend the Dayton 36-inch ceiling shutter for anyone replacing a worn or noisy louver in a standard 34 x 34 opening and who values simple, reliable function over premium insulation. It installs quickly, looks clean, and operates quietly once properly squared and secured. The lack of included hardware and basic packaging are minor annoyances, and it won’t satisfy those seeking an airtight barrier, but for its intended role as an economy shutter, it performs well and represents solid value.
