DeWalt 3" Short Replacement Pilot Bit

Why I reached for this pilot bit

I keep a small box of hole saw mandrels and replacement pilots in the shop because pilot bits are consumables. They get blunted by steel studs, twisted by a grabby hole saw, or simply disappear when someone borrows a mandrel and forgets to return the pilot. I picked up this short DeWalt pilot bit as a straightforward replacement and have been using it across a few weeks of cabinet installs, light electrical cutouts, and a handful of steel and aluminum tasks.

What it is

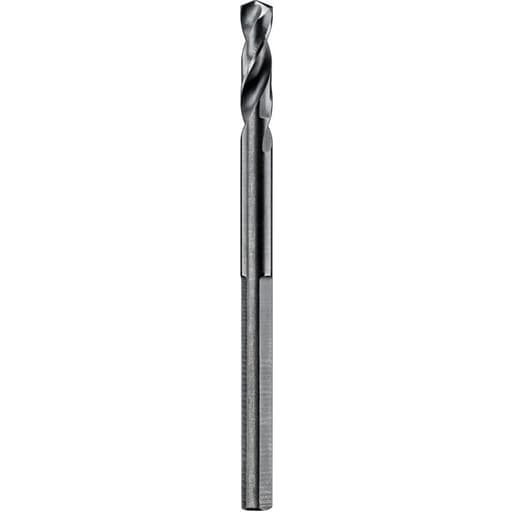

This is a 3-inch, short-format pilot bit with a 1/4-inch shank and a pilot-point tip. The short length matters—it keeps the bit stiffer, so it deflects less when you’re starting a hole or guiding a hole saw. It’s hardened steel, not cobalt or carbide, so it’s meant for general-purpose work in wood and common metals. Importantly, it fits standard 1/4-inch shank arbors and quick-change mandrels; I used it in a couple of different DeWalt and third-party mandrels without issue.

Fit and compatibility

The shank is ground consistently and seats true in my Rapid Load quick-change chuck. In a set-screw style hole saw arbor, the flats are positioned correctly, so the screw bites without camming off the edge. There’s no wobble from the bit itself; any runout I saw came from the mandrel or drill, not the pilot.

Swapping it into different mandrels was painless. If you’ve ever fought with pilots that are just a hair too long for a particular cup depth, you won’t have that problem here. The short length clears the hole saw body on standard 1-7/8 to 4-1/8 inch cups with room to spare, and it’s short enough that you’re not drilling a pilot hole three inches deep before the teeth engage.

Starting accuracy and “walking”

The pilot-point geometry is the standout feature. On sheet metal, painted electrical panels, and hardwood face frames, the bit starts predictably without skating. On slightly curved or coated surfaces (think EMT couplers or powder-coated rack rails), I still prefer a quick center punch, but I did a number of starts without one and didn’t have to fight the bit for control.

In wood, the pilot point grabs quickly and tracks well, which is exactly what you want when a hole saw first touches down. With handheld drilling, that matters. A wandering pilot translates to oval or oversized cutouts once the cup bites. With this pilot in my mandrel, the first contact is confident and centered.

Cutting performance in wood

When used alone (not in a hole saw), it performs like a general-purpose pilot-point drill. In pine, poplar, and plywood, it drills clean entry holes with moderate feed pressure. For clean exit holes in veneer or splintery stock, a backer board still makes the difference. In hardwoods like oak and walnut, it prefers a steady feed and lower RPM to keep heat down. It’s not a brad-point bit, so if your goal is glass-smooth edges in visible joinery or dowel work, a brad-point will still beat it on surface cleanliness. As a pilot for hole saws, though, it does exactly what it should: keeps the saw on line and resists wandering without tearing up the work.

One notable benefit of the short length is reduced deflection. On a few tall face frames where I had to reach at an angle, the bit stayed on path better than longer pilots I’ve used, and I wound up with fewer “egg-shaped” starts when the saw teeth made first contact.

Cutting performance in metal

I ran it through 18–20 gauge steel studs, a couple of 1/8-inch aluminum plates, and a few HVAC panels. With light oil and a sensible speed, the pilot point bites and forms a clean lead hole. It won’t match a cobalt jobber bit’s longevity in continuous steel work, but for guiding a hole saw in metal boxes or making pilot holes for self-tappers, it’s more than adequate. On thicker steel, I recommend a quick center punch and a slow start; the pilot point engages nicely once you’ve created that initial divot.

Chip evacuation is decent. On deeper pilot holes, pecking helps keep the flutes from loading. Heat buildup wasn’t problematic in aluminum; in mild steel, I used a few drops of oil and it stayed sharp through a day’s worth of cutouts.

Durability and edge life

For a hardened-steel, non-cobalt pilot, edge life is solid. After several dozen starts in wood, a handful in aluminum, and about ten in steel, the cutting lips still feel keen. Pilot bits live a rough life—binding hole saws, side-loading while the cup chatters, occasional abuse in a drill/driver—and this one handled that without chipping. It’s not indestructible; if you bury a hole saw and twist your wrist, any pilot can bend or snap. But in normal use, wear has been predictable.

Resharpening is possible if you’re comfortable maintaining the pilot-point geometry on a grinder, though it’s fiddly. At the price these typically sell for, I treat them like serviceable consumables and replace rather than regrind unless I’m in a pinch.

Practical limitations

• Finish-critical woodworking: If you’re drilling visible dowel holes or through-holes in splinter-prone veneers, a brad-point bit gives cleaner shoulders. This pilot bit can drill those holes, but it won’t leave as crisp an edge on exit without a backer.
• Heavy steel: For lots of carbon steel or stainless, a cobalt pilot or a step bit is a better choice. This bit will do the job, but it’s not optimized for extended hard-metal duty.
• Reach: The short format is a feature for rigidity, but it limits depth if you intend to use it standalone for deeper pilot holes. For guiding a hole saw, the short length is ideal; for deep piloting, you may want a longer bit.

Tips for best results

• Use a backer board when drilling through plywood or brittle veneers to reduce exit tear-out.
• In metal, a quick center punch plus a drop of oil goes a long way toward accuracy and tool life.
• Let the pilot establish the center before bearing down with a hole saw; once the cup is tracking, increase feed pressure.
• Peck to clear chips on deeper holes, especially in resinous softwoods and aluminum.
• Check your mandrel set screw; a loose screw can make even a good pilot wobble.

Value

At around the price of a cup of coffee, keeping a couple of these in your hole saw kit is inexpensive insurance. The short, rigid format improves starts, the pilot-point minimizes walking, and compatibility is broad across standard 1/4-inch arbors and quick-change systems. I’ve spent more to get less predictable performance from no-name pilots; this one earns its keep.

Alternatives to consider

• For cleaner woodworking holes: a dedicated brad-point bit set in the sizes you use most.
• For frequent steel work: a cobalt pilot or a quality step bit to establish pilot and enlarge cleanly.
• For abrasive materials like fiber cement: a carbide-tipped pilot matched to your hole saw system.

Bottom line

This short DeWalt pilot bit does the fundamental things right: it starts accurately, guides a hole saw without drama, and holds an edge respectably across wood and moderate metal work. The pilot-point geometry reduces walking in real-world conditions, and the short length keeps things rigid. It won’t replace a brad-point for furniture-grade holes or a cobalt bit for heavy steel, but as a general-purpose pilot and hole saw companion, it’s reliable and cost-effective.

Recommendation: I recommend this pilot bit for anyone who needs a dependable, short-format pilot for hole saws and everyday pilot holes in wood and common metals. It’s accurate, sturdy for its size, and inexpensive to keep on hand. If your work demands the cleanest possible wood holes or extended steel drilling, pair it with task-specific bits, but keep this one in your kit for the jobs it’s designed to do.
