Features
- Up to 220 ft-lbs of nut-busting torque
- Compact 2.2" head profile for access in tight spaces
- 4-mode drive control for precision in fastening and bolt removal
- Auto shut-off mode to prevent over-tightening
- Bolt removal mode for controlled loosening of bolts
- REDLINK PLUS™ Intelligence for performance and protection
- LED light for illuminating the work area
Specifications
Voltage | 12V |
Battery Type | 12 Volt Lithium Ion |
Wrench Type | Right Angle |
Anvil Type | Friction Ring |
Ipm | 0 - 3,600 |
Maximum Torque | 220 ft-lbs |
Fastening Torque | 200 ft-lbs |
Head Profile | 2.2 in |
Tool Warranty | 5 Year Tool, 2 Year Battery |
Power Source | Cordless |
Motor Type | POWERSTATE™ Brushless |
Material Composition | Aluminum |
Length | 13.89 in |
Weight | 3.05 lb |
Height | 2.98 in |
Width | 2.32 in |
Brushless | Yes |
Battery System | M12 |
Chuck Type | Not Applicable |
Chuck Size | Not Applicable |
Drive Control | 4-Mode |
Maximum Rpm | 3000 rpm |
Rpm Range | 0 - 3,000 |
Related Tools
Related Articles
This right angle impact wrench is designed for ease of use in tight spaces, offering a compact head profile for better accessibility. It delivers a maximum of 220 ft-lbs of torque for effective bolt and fastener removal.

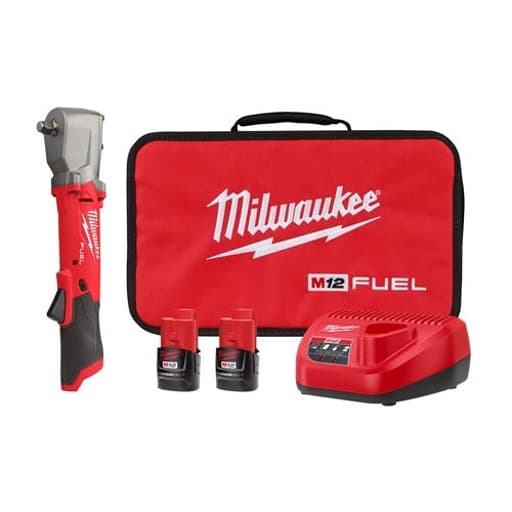

Model Number: 2565-22
Milwaukee 1/2" Right Angle Impact Wrench w/ Friction Ring Kit Review
Navigating tight spaces and stubborn bolts can be a real challenge, but the Milwaukee 1/2" Right Angle Impact Wrench w/ Friction Ring Kit (model 2565-22) has proven to be a game-changer in my toolkit. This tool is designed to bring power and convenience to those hard-to-reach spots, and it delivers on many fronts.
From the moment I picked up the Milwaukee Right Angle Impact Wrench, I could feel its robust build quality. The compact head profile, measuring just 2.2 inches, is a standout feature that allows it to access areas where traditional impact wrenches would struggle. This has been particularly useful in automotive settings, where space is often at a premium. For instance, replacing O2 sensors on a cramped engine bay became a straightforward task, thanks to this tool's design.
One of the most impressive aspects of this impact wrench is its torque. With up to 220 ft-lbs of nut-busting torque, it has handled everything I've thrown at it. Whether it's removing lug nuts or tackling rusted bolts on a lawnmower, the power is more than sufficient. The tool features a 4-mode drive control, which is incredibly useful for managing the torque and speed according to the task at hand. The auto shut-off mode is a particular favorite, preventing over-tightening and ensuring a precise finish.
Battery life is always a concern with cordless tools, but the 12V Lithium-Ion batteries included in this kit have exceeded my expectations. The tool comes with two batteries, allowing for continuous use without significant downtime. I appreciated the LED fuel gauge, which provides a clear indication of remaining battery life, ensuring I'm never caught off guard. On a single charge, I was able to tackle multiple tasks, including tire rotations and small engine repairs, without needing to recharge.
The Milwaukee Right Angle Impact Wrench is also equipped with REDLINK PLUS™ Intelligence, which optimizes performance and provides overload protection. This feature adds a layer of confidence, knowing that the tool is safeguarded against potential damage during heavy use. The built-in LED light is another thoughtful addition, illuminating the work area and making it easier to see what I'm doing in low-light conditions.
Comfort and ergonomics are crucial for any handheld tool, and Milwaukee has done a commendable job here. The tool weighs in at just over 3 pounds, making it lightweight enough for extended use without causing fatigue. The handle design is comfortable, and all controls are easily accessible, allowing for one-handed operation. The friction ring anvil simplifies socket changes, which is a small but significant time-saver.
While the tool has many strengths, it's not without its drawbacks. Some users might find the 220 ft-lbs torque claim to be a bit optimistic. In my experience, it handled most tasks well but struggled with extremely tight fasteners, such as lug nuts torqued beyond 76 ft-lbs. This limitation might be a deal-breaker for those seeking a tool for heavy-duty applications. Additionally, the head size, while compact, is still bulkier than some air-driven right-angle wrenches, which could be a consideration for those working in very tight spaces.
Despite these minor shortcomings, the Milwaukee Right Angle Impact Wrench remains a highly versatile and valuable addition to any toolkit. Its cordless nature offers unparalleled portability and convenience, freeing me from the constraints of air hoses and power cords. The included carrying case is well-designed, with Velcro straps to secure the tool and accessories, making it easy to transport and store.
In conclusion, the Milwaukee 1/2" Right Angle Impact Wrench w/ Friction Ring Kit is a solid performer that brings together power, convenience, and thoughtful design. While it may not replace a more powerful impact wrench for the toughest jobs, it excels in versatility and ease of use, making it an excellent choice for a wide range of applications. Whether you're a professional mechanic, a DIY enthusiast, or someone who occasionally needs to tackle tight spots, this tool is worth considering.
I highly recommend the Milwaukee Right Angle Impact Wrench for its combination of power, portability, and user-friendly features. Its ability to handle a variety of tasks with ease, coupled with the convenience of a cordless design, makes it a valuable asset in any toolkit.
Project Ideas
Business
Mobile Repair Service
Start a mobile repair service for vehicles or machinery. The right angle impact wrench is perfect for on-site repairs, allowing you to fix issues in tight spaces efficiently.
Custom Furniture Business
Launch a custom furniture business, using the impact wrench to quickly assemble unique pieces for clients. The precision and power of the tool ensure high-quality, durable products.
Construction and Renovation
Offer specialized construction and renovation services, focusing on tasks that require precision in tight spaces, such as installing HVAC systems, plumbing, or electrical work.
Tool Rental Service
Start a tool rental service that includes specialized tools like the right angle impact wrench. This allows DIY enthusiasts and small businesses to access high-quality tools without the upfront cost.
Automotive Workshop
Open an automotive workshop that specializes in quick and efficient repairs. The impact wrench's high torque and compact design make it ideal for a variety of automotive tasks, from tire changes to engine repairs.
Creative
Furniture Assembly
Use the right angle impact wrench to assemble and disassemble flat-pack furniture quickly and efficiently. The compact head and powerful torque make it ideal for tightening and loosening bolts in hard-to-reach spaces.
Automotive Restoration
Restore vintage cars and motorcycles by using the impact wrench to remove rusted and stubborn bolts. The precision drive control ensures you won't over-tighten or strip delicate parts.
Custom Metalwork
Create custom metalwork projects, such as sculptures or furniture, by using the impact wrench to assemble metal components securely. The LED light helps illuminate your work area for precision.
Home Improvement Projects
Undertake various home improvement tasks, such as installing cabinetry, fixing garage doors, or assembling outdoor furniture. The auto shut-off feature prevents over-tightening, ensuring a professional finish.
Bicycle Maintenance
Maintain and repair bicycles by using the impact wrench to remove and install bolts on frames, handlebars, and wheels with ease. The compact design allows access to tight spots.
