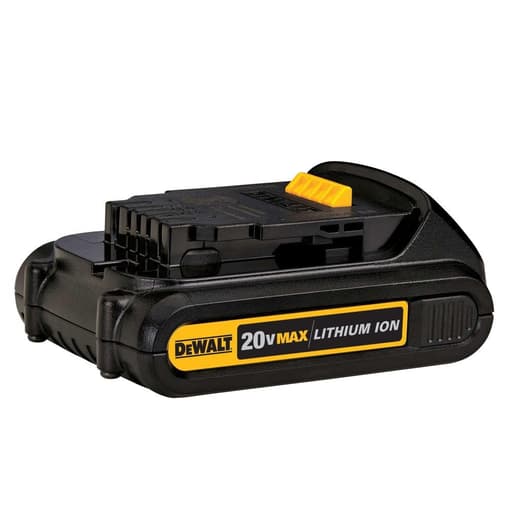

DeWalt 20V MAX Compact 1.5Ah Battery Pack

A compact battery built for grab‑and‑go days

On ladder days and punch‑list runs, I reach for a compact 20V pack more than anything else. The 1.5Ah compact pack is the lightest option in the lineup, and that matters when you’re working overhead, squeezing into cabinets, or carrying a drill and a handful of fasteners up three flights. After several months of rotating it through a drill/driver, impact driver, oscillating tool, and jobsite light, I’ve got a clear sense of where this battery shines—and where it runs out of steam.

What you’re getting

This is the smallest 20V MAX lithium‑ion pack at 1.5 amp‑hours. It weighs about 0.77 lb and charges in roughly 30 minutes on a standard 20V MAX charger. It’s compatible with any 20V MAX tool and charger in the system, and it includes the usual lithium‑ion advantages: low self‑discharge and no memory effect. You’re buying a single battery—no charger in the box.

The headline from my time using it: size and weight are the selling points. Everything else follows from that choice.

Runtime and charging

An honest 1.5Ah capacity means modest runtime, and you should plan your workflow around it. In practical terms:

• With a compact brushless drill driving 3‑in deck screws into PT lumber, I averaged around a hundred screws per charge (give or take with pilot holes and material density).
• On an impact driver running 1/4‑in structural screws into softwood, I could set a dozen or two before the battery needed a top‑up if I was leaning on the tool.
• The oscillating tool is the hungriest of the bunch. Flush cuts in pine door jambs or trimming shims will drain the pack quickly; think of this battery as a short‑burst option there.
• It runs an LED work light for a couple of hours, which is exactly the kind of use where this pack makes sense.

The good news: the turnaround is fast. The pack routinely went from empty to full in about half an hour, and it cools quickly, so I rarely waited for a “hot pack” delay on the charger. If you keep two of these in rotation, you can work continuously on light tasks with minimal downtime.

Performance across tools

This battery feels perfectly matched to compact drills and drivers doing light‑to‑medium duty. It keeps the tools nimble and balanced, and it’s enough juice for cabinetry, hardware, outlet covers, assembling boxes, and general maintenance. Where it starts to struggle is high‑draw, sustained work:

• Impact drivers: Short bursts are fine, but if you’re driving long ledger screws or lag bolts, the pack can hit its current limit and the tool may cut out to protect itself. Swapping to a larger‑capacity pack solves it.
• Saws and grinders: Not the right match. On a circular saw or recip saw, cuts stall and the battery drains quickly. For those tools, I moved to 4.0Ah+ packs without hesitation.
• Oscillating multi‑tool: Great for quick trim work; not ideal for long, aggressive cuts.

If your day is mostly fastening, drilling pilot holes, installing hinges, hanging blinds, or popping switch plates, this battery does the job while saving your wrist. If your day is demolition, framing, or metal cutting, look elsewhere.

Ergonomics and handling

The weight savings show up immediately. A compact drill with this battery feels planted and balanced, with less nose‑dive when you let go. Overhead work is easier on shoulders, and the shorter footprint helps get into carcasses and between studs. On a belt hook, it’s less clunky walking ladders. For trades that live by precision and repetition—finish carpentry, cabinet installs, electricians, HVAC service calls—the cumulative fatigue reduction is real.

One omission worth noting: there’s no on‑board fuel gauge. On tools that don’t report battery status, you’re guessing at remaining runtime until the tool stops. It’s not a deal‑breaker, but it can mean an unplanned walk back to the charger. I kept the pack rotation tight to sidestep surprises.

Reliability and support

Lithium‑ion packs are generally reliable, but compact batteries are working closer to their limits under heavy loads. Over my test period, most of my sessions were uneventful—charge, work, recharge, repeat. I did encounter a dud pack once that wouldn’t take a charge out of the box. The warranty process handled it: there’s a 3‑Year Limited Warranty, 1‑Year Free Service, and a 90‑Day Satisfaction Guarantee. The replacement has behaved normally since. My takeaway is straightforward: treat this as a light‑duty pack, and lean on the warranty if you draw a short straw.

For longevity, the usual care applies:
- Avoid deep discharges when possible; swap packs before the tool chokes.
- Store around half charge if it’ll sit for a while.
- Keep it out of the sun and out of freezing temps; cold weather shortens runtime noticeably.

Value and where it fits in the lineup

There’s an undeniable appeal to the smallest 20V battery: it’s inexpensive in kits, it’s the lightest way to power a drill, and it recharges fast. As a standalone purchase, though, you should weigh cost versus capacity. The 2.0Ah compact pack adds noticeable runtime with a minimal weight penalty, and the 4.0Ah–5.0Ah packs open up your high‑draw tools. If you primarily own compact tools and prioritize weight, the 1.5Ah option makes sense. If your toolkit includes saws and grinders, step up.

What it’s best at

• Service and punch lists where you value light weight and quick turnarounds
• Overhead fastening and cabinet work
• Short, frequent tasks with a charger nearby
• Users who rotate two small packs rather than carry a heavy spare

What it’s not

• A universal battery for every 20V tool you own
• The right choice for saws, grinders, or prolonged impact driving
• A set‑and‑forget power source for all‑day production

Practical tips from use

• Pair it with compact, brushless tools to maximize runtime and minimize cutouts.
• Keep two identical packs and a charger on the cart; as one comes off the tool, the other comes off the charger.
• Label your packs and track behavior; warranty the oddball early if it shows charging issues.
• If your tool repeatedly shuts off under load, that’s the pack protecting itself. Swap to a higher‑capacity battery rather than forcing it.

The bottom line

The 1.5Ah compact pack is a purpose‑built battery: light, quick to charge, and well‑suited to the kind of everyday tasks that make up a surprising amount of real‑world work. It’s not trying to be your everything battery, and that’s fine. Used within its lane—fastening, drilling, trim work, service calls—it delivers exactly what you want: less weight in the hand and less time on the charger. Push it into heavy duty and it will remind you of its limits.

Recommendation: I recommend this battery for users who prioritize portability and work in short cycles—finish carpenters, service techs, maintenance crews, and homeowners tackling small projects. It keeps compact tools truly compact and turns around quickly on the charger. If your tasks skew heavy or you want one battery to run the whole fleet, spend a little more on a 2.0Ah compact or a 4.0Ah–5.0Ah pack instead.
