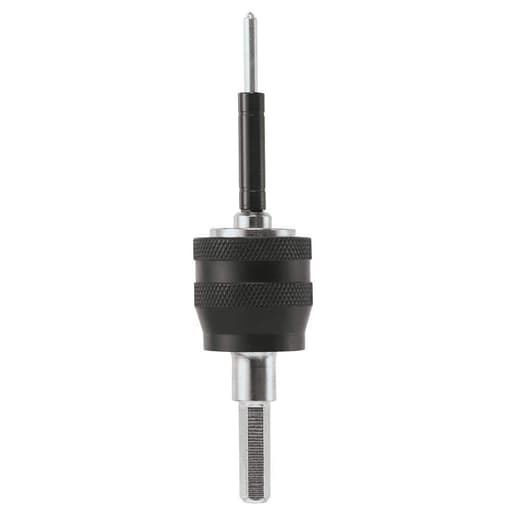

Bosch Quick Change Mandrel

A hole saw is only as trustworthy as the mandrel holding it together. After several weeks of drilling everything from polished porcelain tile to MDF and light-gauge steel studs, I put this quick-change mandrel through the kind of mixed material work that tends to expose strengths and weak points. Overall, it’s a thoughtfully designed accessory that speeds up setup and improves accuracy, with a few caveats around care and technique.

What stands out in the design

• Quick-change interface: Swapping hole saw cups is genuinely fast and positive. The collar locks with a reassuring click, and I never felt the cup backing off during a cut.
• Retractable pilot: The retractable shaft is the headline feature. You can start a hole with the pilot engaged, then retract it mid-cut to continue without a pilot bit. That’s exactly what you want for brittle, glazed surfaces where a pilot can chip, or when you need a clean core without a center plug.
• Carbide-tipped pilot: The pilot bit itself is ground and carbide-tipped, which helps it bite into harder surfaces and keep its edge longer than a standard HSS pilot.
• Broad compatibility: It’s rated for hole saws from 3/4 inch up to 4-1/8 inches and uses a hex shank, so it’s stable in a standard drill chuck and plays well with quick-change chucks. I used it with diamond-grit tile hole saws and bi-metal cups without fit issues.

The body is mostly metal with a knurled surface on the collar that makes it easy to grip with gloves on. Tolerances on my unit were tight—no wiggle between the mandrel and the saw cups I tried, and runout stayed low enough that the cups didn’t chatter, even on delicate tile.

Setup and compatibility

Fitting hole saws is straightforward: thread the cup on, engage the drive pins, and lock it with the collar. The hex shank kept the bit from slipping in keyed and keyless chucks alike. I did all testing in drill/driver mode—not impact—and I’d recommend the same. An impact driver’s hammering action isn’t ideal for mandrels or hole saws, especially in tile and metal.

The size coverage is practical. Most of my day-to-day sizes for plumbing penetrations, junction boxes, and cabinet hardware fall well within the 3/4 to 4-1/8 inch range. If you frequently run larger HVAC penetrations, you’ll likely need a different setup, but for common trades work this covers the bases.

Performance in different materials

• Porcelain tile: This is where the retractable pilot shines. My approach was to mark the hole, apply water, start at a low speed with the pilot engaged to establish a shallow scoring groove, then retract the pilot and continue with gentle pressure. The mandrel’s mechanism let me retract without disassembling anything, and the cut stayed centered. No chips or spider cracks on polished surfaces when I kept speeds down and water flowing.
• Granite and stone: Similar technique as tile, with even more emphasis on low RPM and lubrication. The carbide pilot didn’t glaze over, and the mandrel held the diamond cup steady. The retractable feature makes a clean difference—no pilot means you avoid a stress riser in brittle stone.
• Wood and MDF: With a bi-metal cup, the pilot kept holes true and minimized grabbing as I broke through veneer. Speeding up the drill and clearing chips as I went made for clean edges. The mandrel held tight under the higher torque of larger cups.
• Thin steel studs: The hex shank helped resist slip under torque. For shallow penetrations, accuracy stayed good. As always with metal, a little cutting fluid improves both the hole saw and the pilot’s life.

Across materials, the mandrel’s quick-change action reduced downtime. Swapping from a 1-3/8 inch tile cup to a 2-1/8 inch wood cup was a 10-second job with gloved hands and no fumbling.

Accuracy and control

The ground pilot bit starts cleaner than generic pilots I’ve used. On painted surfaces and laminates, it tracked precisely without skating. In tile work, accuracy is really a function of that first 1/16-inch score: the retractable mechanism lets you pilot long enough to establish a groove, then retract to avoid forcing a center hole. That flexibility reduces blowout and helps you hit your layout lines.

Runout on my setup was low. I measured less than a millimeter of lateral wobble at the rim of a 2-inch cup, which is perfectly acceptable for most hole saw tasks and contributes to smoother, quieter cuts.

Durability and maintenance

A mandrel lives a hard life, and this one feels robust overall. The locking collar and body are stout, and the pilot’s carbide tip holds up well against glazed tile—and will outlast standard HSS pilots in wood and metal. The retractable mechanism is the spot to monitor. Dust and slurry can sneak into the moving section and make the action gritty over time. A quick rinse and a tiny drop of light oil after tile work kept mine retracting smoothly.

I didn’t experience any mechanical failures, but I can see how neglecting to keep the mechanism clean—or operating at too high an RPM in tough material—could stress small components. Treat it like a precision piece, not a demolition tool, and it should have a good service life.

Ergonomics and workflow

• The knurled collar is easy to lock and unlock with wet hands.
• The hex shank is simple but effective; no mystery adapters, just reliable grip.
• Being able to retract the pilot mid-cut without removing the cup saves time and reduces the temptation to improvise on sensitive surfaces.

If you’re doing a series of holes at different sizes, the quick-change system earns its keep. I clocked a small but real productivity gain on a backsplash job because I wasn’t constantly fighting threads and set screws.

Limitations and cautions

• Not for impact mode: Keep it in drill/driver mode. Impact pulses can shorten the life of both the mandrel and the hole saw.
• Cooling and speed matter: Especially for tile and stone, stay slow and wet. Running dry or fast will shorten the life of the pilot and can overheat the retractable assembly.
• Keep it clean: Slurry and metallic chips will migrate into the collar and retractable shaft. Rinse and dry after use in abrasive materials.
• Size ceiling: If you regularly run hole saws larger than 4-1/8 inches, look elsewhere.

Tips from use

• On tile, mark, tape the surface, and start at a slight angle to create a crescent score, then square up. Once the ring is established, retract the pilot and continue flat with minimal pressure.
• In wood or laminate, retracting the pilot for the last 1/8 inch can reduce blowout on the exit side—just back up the cut with scrap for best results.
• For metal, use a lower speed and a drop of cutting fluid. Let the cup do the work; forcing it only adds heat and wear.

Value and who it’s for

For anyone moving between materials—remodelers, plumbers, electricians, tile installers—the combination of quick-change convenience and a retractable pilot is genuinely useful. If you only cut wood and never touch tile or stone, a basic fixed-pilot mandrel will do the job for less. But if accuracy on slick surfaces and quick cup swaps are part of your day, this mandrel justifies its place in the kit.

Final recommendation

I recommend this mandrel. It’s accurate, quick to use, and the retractable pilot is a real advantage on brittle materials where a center hole is a liability. The carbide-tipped, ground pilot starts cleanly, and the hex shank and locking collar keep everything secure under load. Respect the mechanism—avoid impact mode, keep speeds appropriate, and clean it after abrasive work—and you’ll get reliable, repeatable results across tile, stone, wood, and light metal. If your work demands clean starts on hard surfaces and fast transitions between hole sizes, this is a smart, capable choice.
