Features
- Line lock to maintain string tension when snapping lines
- 4:1 planetary gear for faster rewind
- 1.0 mm precision braided string for fine, visible lines
- Rubber overmolded compact case for grip and impact protection
- Flush handle design to help prevent accidental unwinding
- Twist-cap for quicker chalk refills
- Includes 4 oz. bottle of red chalk
Specifications
Chalk Line Length (Ft.) | 100 |
Gear Ratio | 4:1 |
Line Diameter | 1.0 mm braided string |
Case | Rubber overmolded compact housing |
Included Chalk | 4 oz (red) |
Hand Tool Type | Chalk reel |
Package Quantity | 1 |
Returnable | 90-Day |
Manufacturer Warranty | Limited Lifetime Warranty |
Related Tools
Related Articles

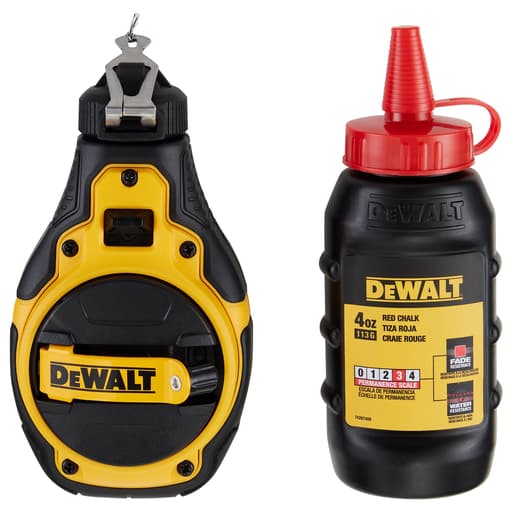

Chalk reel for marking lines up to 100 ft. It uses a 4:1 planetary gear for faster rewind, a 1.0 mm braided string for fine lines, and a line lock to maintain string tension. The case has a rubber overmold for improved grip and drop protection. The kit includes a 4 oz. bottle of red chalk.
DeWalt Bi-Material Chalk Reel Kit (Red) Review
Overview
I spent the past couple of weeks using this DeWalt chalk reel across framing layout, subfloor lines, and a few finish carpentry tasks in a remodel. It’s a compact, rubber-overmolded reel with a 100-foot capacity, a 4:1 gear ratio for faster rewind, and a 1.0 mm braided string that’s designed to leave a finer, more precise line. It ships as a kit with a 4 oz bottle of red chalk. That combination—fine string and permanent red—puts it squarely in the “precision layout” camp, with just enough speed and ruggedness for jobsite work.
Setup and First Impressions
Out of the box, the case feels solid and pleasantly grippy. The rubber overmold isn’t window dressing; it actually improves control when you’re chalking one-handed or fishing the line out with gloves on. The handle folds flush into the body, which I appreciate, because it prevents the reel from unwinding in your pouch or rattling around in a bin.
Filling the chalk was straightforward. The twist-cap opens quickly and seals well, and the fill port is large enough that you’re not wearing half the bottle by the time you’re done. I primed the line with a few short pulls and snaps before the first use—always a good move with new reels—until the line was consistently coated from hook to spool.
In Use: Line Quality and Control
The highlight here is the 1.0 mm braided string. It leaves a crisp, narrow mark that’s noticeably finer than on general-purpose reels. On smooth surfaces—painted drywall, primed trim stock, cabinet plywood—the line is sharp and easy to see. On rougher sheathing or dusty subfloors, you still get a legible line, but any fine string will drop a bit of chalk density compared with thicker cords. If you’re doing framing layout on dirty or windy sites, a broader line (and a less permanent chalk color) can sometimes be more forgiving.
The line lock is simple and effective. Engage it, and the string stays put with good tension. That’s useful when you’re snapping solo and need to control slack near the hook. I used the lock regularly to keep the line from creeping while I repositioned the reel on long pulls, and it held up without slipping.
Rewind and Gearing
DeWalt spec’d a 4:1 planetary gear, which is a sweet spot for a compact reel. It’s clearly faster than a 1:1 drum without becoming fragile or overly racy. That said, my sample felt a bit stiff for the first couple dozen rewinds—return was smooth enough, but not what I’d call effortless. After a few days of use and a light shot of dry silicone, it loosened up and settled into a more agreeable feel. I wouldn’t call this the fastest reel in the category, and if speed above everything else is your priority, there are 6:1 reels built for production framing that will beat it. But the tradeoff here is consistency and control, and once broken in, the rewind was reliable and adequately quick.
The flush handle design deserves a callout. It snaps into the body positively and doesn’t pop out unless you want it to. This might seem minor, but accidental unwinding is one of those small annoyances that can waste time. With this reel, I didn’t have to think about it.
Durability and Ergonomics
The compact housing takes knocks well. I dropped it from waist height onto a concrete slab a couple of times, and the overmold did its job—no cracks or loose joints. Grip is excellent in wet conditions, and the body shape is easy to hold and reorient with one hand.
Cosmetically, the finish on the handle scuffed quickly. The reel remained fully functional, but if you care about keeping your tools looking new, expect the exterior branding paint to show wear early. Personally, I’ll take sturdy and scuffed over pristine and fragile every time, but it’s worth noting.
The braided string itself has held up well. It hasn’t fuzzed or flattened, which keeps the line narrow. I did make a point to avoid grinding the line over sharp edges or grit—common sense for any fine string.
Chalk and Refill Experience
The kit’s 4 oz red chalk is convenient for getting started, and the bottle design mates well with the reel’s fill port. Red chalk is high-visibility and largely permanent. That’s useful for exterior layout, rough-in reference lines that you don’t want to lose, or any area that won’t be painted. It’s not ideal for interior finish spaces where a permanent mark can become a problem. I used red on subfloors and exterior OSB, then switched to blue chalk (temporary) for drywall and trim. The reel handled both without issue.
Refilling is quick: twist, fill, twist to close. The cap seems reasonably dust-tight; I didn’t see chalk puffing out or caking around the threads after a day of work. As with any reel, resist the urge to overfill—too much chalk makes for messy snaps and can gum up the rewind. Filling to around two-thirds capacity gave me consistent coverage without clumping.
Maintenance and Tips
A few habits kept this reel feeling good:
- Prime the line after refills with several pulls and snaps to redistribute chalk.
- If the rewind feels stiff, a light application of dry silicone on the string near the exit and a few extended pulls helps. Avoid petroleum oils; they attract dust.
- Don’t overstuff the case with chalk; consistency beats volume.
- Engage the line lock during long pulls to maintain tension and prevent slack kinks.
- Store it dry. If the line gets wet, pull out 10–15 feet, let it air-dry, then rewind.
Who It’s For
- Finish carpenters, cabinet installers, tile setters: The 1.0 mm braided string leaves a clean, precise line that’s easy to follow with a saw or track.
- Remodelers and general contractors who want one compact reel that can handle both detailed layout and jobsite abuse.
- DIYers who value a finer line and a straightforward, durable reel.
Who might look elsewhere: production framers who want maximum rewind speed and a thicker, high-deposition line; anyone who hates permanent chalk or needs very bold marks on dirty surfaces.
Value and Warranty
The tool feels fairly priced for what it offers: a tough case, reliable features, and a precision string. The 100-foot capacity covers most residential tasks, and the included 4 oz chalk gets you working immediately. DeWalt backs it with a limited lifetime warranty, and there’s typically a 90-day return window from retailers. That’s reassuring for a hand tool that should last years with basic care.
The Bottom Line
This DeWalt chalk reel prioritizes precision and control in a compact, jobsite-ready package. The 1.0 mm braided line leaves crisp, narrow marks, the line lock is genuinely useful, and the rubberized case feels tough in daily use. Rewind speed is good—not class-leading—and my sample needed a short break-in period before it felt truly smooth. Cosmetically, the handle finish marks up quickly, but functionally the reel stays solid.
Recommendation: I recommend this reel for anyone who wants a durable, compact chalk box that lays down fine, accurate lines and doesn’t mind a modest break-in to smooth out the rewind. It’s a strong fit for finish and remodel work, and it holds up well on general jobsites. If you need the absolute fastest rewind or the boldest line for rough, dirty conditions, consider a higher-speed, thicker-line alternative—but for precision layout with dependable ergonomics, this one earns a spot in the pouch.
Project Ideas
Business
Accent Wall Layout Service
Offer a flat-fee service to homeowners to pre-mark geometric murals, board-and-batten, shiplap, and slat walls. Use the fine 1.0 mm line for precise spacing, and provide clients with labeled, snap-to-paint guides. Upsell: paint application or premium pattern templates.
Contractor Layout Subservice
Partner with local tile, decking, and paver installers to handle rapid, accurate site layout—centerlines, offsets, herringbone angles, and control lines. Bill per linear foot or per zone; your fast 4:1 rewind and line lock reduce crew downtime.
Event and Pop-Up Marking
Mark booth grids, queue lanes, and temporary court or game areas for markets and community events. The visible red chalk reads well outdoors. Package pricing for layout plus optional tape overlay to prolong markings.
Mural Grid Prep for Artists
Provide a niche service to artists: snap scaled grids and perspective guides on walls before they arrive. Offer add-ons like printed scale keys and protective clear coat lines for long projects. Charge per square foot with rush options.
DIY Kit + Content Bundle
Sell downloadable pattern packs (chevron walls, geometric murals, patio layouts) with step-by-step snapping sequences and spacing calculators. Monetize via Etsy or your site and drive traffic with short-form videos of satisfying chalk snaps; add affiliate links for tools and chalk refills.
Creative
Geometric Wall Mural Layout
Use the 1.0 mm braided string to snap ultra-fine, crisp guides for a geometric or color-block mural. The line lock keeps tension so long diagonals don’t sag, and the red chalk stays visible on primed walls. Tape along the snapped lines for razor-sharp paint edges, then wipe remaining chalk or seal with a clear coat.
Herringbone/Chevron Wood Accent
Lay out a herringbone or chevron pattern on plywood or a wall by snapping a centerline and repeating 45° guides every set distance. The fine line helps maintain tight pattern accuracy. The 4:1 rewind speeds up frequent re-snaps as you progress.
Street-Anamorphic Grid Transfer
Snap a large grid on pavement or a primed wall to transfer complex artwork at scale. The red chalk remains visible in bright light; the braided line yields precise intersections for accurate scaling. Great for big statement pieces or community art days.
Oversized String Art Panel
Snap layout lines on a wood panel to place nails precisely for string art (maps, typographic pieces, mandalas). Use the line lock to keep taut lines while marking nail positions, ensuring symmetry and clean geometry.
Paver Patio Pattern Guide
Create a modular paver guide by snapping baseline and course lines for running bond, basketweave, or herringbone. The fine line improves alignment and gap consistency; the rubber-overmolded case handles site drops and grit.
