DeWalt 12 in Right Angle Flex Shaft

Why I reached for a right‑angle flex shaft

Tight quarters are where otherwise capable drills go to die. Installing retrofit electrical boxes inside old plaster, running screws under cabinet lips, and reaching fasteners behind appliance frames—these are the moments that made me reach for DeWalt’s right‑angle flex shaft and wonder why I’d waited so long. Over the past several weeks I used it on cabinetry, electrical, and some light automotive work, and it repeatedly saved time and frustration. It isn’t a brute-force accessory; it’s a precision solution for awkward spaces. Used within its limits, it’s excellent. Push it beyond, and you’ll expose its few quirks fast.

Design and build

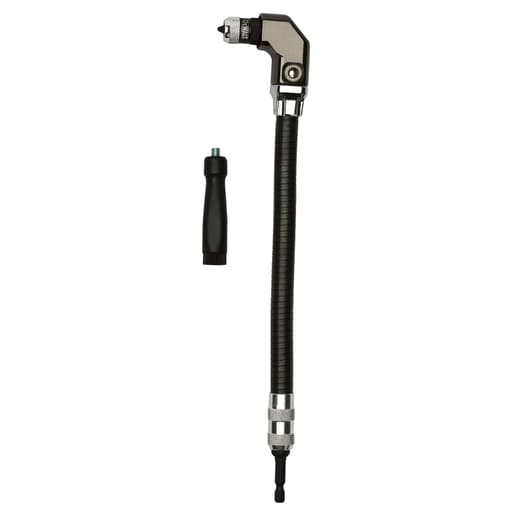

The flex shaft is essentially two tools in one: a compact, true 90° right‑angle head and a 12-inch flexible shaft that routes torque around obstacles. The head is all metal with a knurled push‑to‑release collar (DeWalt’s Rapid Load) and a magnetic bit holder. The 1/4" hex shank drops into any drill or impact driver. A removable side handle clamps around the shaft to give your off hand a place to stabilize and counter rotation.

The mix of materials is smart. The outer sheath of the shaft resists abrasion and cleans up easily, and the inner torsion section has enough “give” to smooth out impact pulses rather than snapping under sudden load. The head is compact enough to fit between studs and under toe kicks where a standard right-angle attachment (with no flex) still wouldn’t reach. The whole package is light and balanced.

Access and control in the real world

This is where the tool earns its keep. In a cramped cabinet install, I needed to drive #8 screws 1/2" from a back wall with less than 2" of overhead clearance. With the flex shaft, I parked the drill outside the cabinet, snaked the shaft into position, and used the side handle as a brace. Visibility is better than you’d expect because your hands and drill aren’t blocking the work. I repeated the trick under a sink to swap a hose clamp with the same success.

The side handle matters more than it looks. On straight runs you can leave it off, but once you introduce a bend in the shaft, torsional windup wants to twist the head. The handle gives you a second point of control so you can apply pressure exactly where you need it without fighting the drill. Be aware that in very tight recesses the handle can bump into surrounding surfaces; it’s easy to reposition or remove.

Rapid Load and bit retention

The head uses a push‑to‑eject collar and takes standard 1/4" hex bits. Bits with a detent groove (typically 1" power bits and longer) lock in with a positive click. Short insert bits without grooves are held magnetically. In practice, I had no trouble with groove-equipped bits locking or releasing, provided I fully pressed the collar forward to its stop. With insert bits, the magnet is strong enough to hold the bit and even a fastener at the same time during horizontal work, but if you’re working overhead the combination can drop out. Use groove-equipped bits wherever possible.

A note on technique: if a bit feels stuck, don’t pry with pliers. Fully depress the collar, rotate the bit a few degrees while pulling, and relieve any torque on the shaft (impact drivers can leave a little preload). Keeping the bit shank clean helps. After a day of drywall dust, I blew out the head and put a drop of dry lube on the detent; releases stayed crisp.

Torque handling and durability

You can use this with a drill or an impact driver. I ran it on a mid‑torque 18V impact at low to medium settings driving #8 and #10 screws into studs and sheet metal. The shaft’s torsion section soaked up impact pulses well, and the head didn’t chatter or walk off fasteners. Under heavy load you’ll feel windup proportional to the angle of the bend—more bend equals more spring. That’s normal for flexible extensions.

Know its ceiling. This isn’t for lag bolts, self-tappers into thick steel, or big spade bits. If a fastener requires high torque to break free or to seat, straighten the shaft as much as you can, drop your impact setting, and finish with hand tools if needed. I found that pre‑drilling pilots and setting a modest clutch on a drill gave the cleanest results in delicate materials.

Over a few weeks, nothing loosened, the head stayed tight, and the outer sheath resisted scuffs. I avoided kinking the shaft and kept bends to gentle radii—doing so will extend life. Treat it like a precision link, not a pry bar.

Accuracy and ergonomics

The true 90° head approaches corners cleanly. Because the head is compact, you can drive close to adjacent surfaces without the body of the tool interfering. The magnetic holder is especially helpful when you need to start a screw one‑handed: seat the screw on the bit, place it, and the magnet keeps things aligned while you get the first threads to bite.

The ergonomics are sensible. The knurling on the collar provides grip with gloves on, and bit changes are fast. Balance is better than on rigid right‑angle adapters when you’re reaching around obstructions because the drill’s weight is out of the way.

Compatibility and what it’s best at

• Screwdriving in cabinets, shelving, and casework
• Electrical boxes and hardware inside tight framing
• HVAC brackets and hose clamps in engine bays
• Brackets behind appliances and inside racks
• Light drilling with hex‑shank bits for pilots in wood and thin sheet

It’s compatible with any 1/4" hex bits and standard quick‑change chucks. Use good bits with true shanks; painted or oversized shanks can feel sticky in the chuck. Hex‑shank drill bits up to small diameters work fine for pilot holes; just keep speed moderate and avoid aggressive feed pressure when the shaft is bent.

Limitations and small annoyances

• Bit jamming is possible if debris gets into the Rapid Load mechanism or with out-of-spec bits. Keeping things clean and using proper groove-equipped bits minimizes the risk.
• The side handle can occasionally be in the way in very tight corners. It’s removable, but you’ll miss it when torque climbs.
• Like any flexible shaft, torque transmission drops as bend angle increases. Plan fastener access to keep bends smooth and shallow.
• The magnet collects metal shavings; clean it periodically so it doesn’t compromise bit seating.

One more consideration: there’s no stated warranty. I’d buy it from a retailer with straightforward returns, especially if you’re new to flexible extensions and still learning the limits.

Tips for best results

• Keep the bend radius gentle; avoid sharp kinks.
• Start screws at low speed and increase only after threads bite.
• Use groove-equipped 1" or longer bits for positive locking; reserve short insert bits for light duty.
• Fully depress the collar for bit changes; rotate the bit as you pull if it feels snug.
• Periodically blow out the head and wipe the magnet clean.

Value

You’ll find cheaper flexible extensions and separate right‑angle adapters. This one justifies its higher price by combining both functions in a compact, durable package that tolerates impact use better than budget options I’ve tried. If tight‑space work is a regular part of your week, the time saved quickly pays for the convenience.

Recommendation

I recommend the right‑angle flex shaft for anyone who regularly fights fasteners in confined spaces—cabinet installers, remodelers, electricians, HVAC techs, and DIYers working in finished spaces. It reaches where rigid right‑angle adapters can’t, the head is compact and easy to control, and the Rapid Load system makes bit swaps quick. Treat it as a precision access tool, not a high‑torque breaker bar, keep the mechanism clean, and it will perform reliably. If your work is mostly wide‑open framing or heavy structural fasteners, you can skip it; otherwise, it’s one of those accessories that earns a permanent spot in the bag after the first project.
