DeWalt Impact Ready Tap and Drill Bit 8-32

I first grabbed this 8-32 impact‑ready tap/drill bit on a ladder, one hand on the driver and the other trying not to drop a junction box. That’s exactly the kind of moment this little combo tool is made for: drill, tap, and clean up the hole with minimal tool changes. After a few weeks of putting it through its paces on mild steel panels, strut, and the occasional aluminum plate, I’ve got a clear sense of where it shines and where to rein it in.

What it is and why it matters

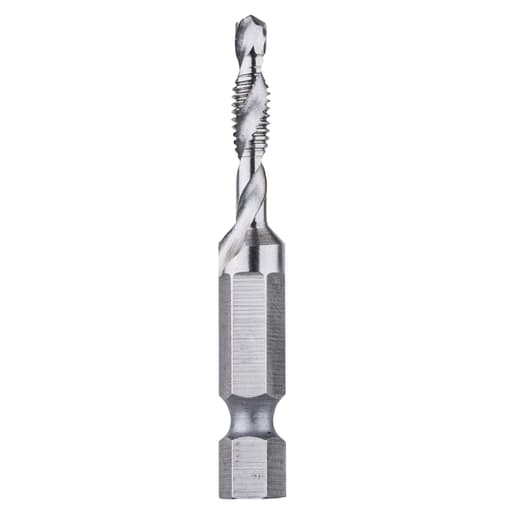

This is a single 8‑32 UNC combo bit that drills the pilot hole, taps threads, and adds a light countersink to break the edge—all in one go. It’s made from high‑speed steel, has a 1/4‑inch hex shank for quick‑change chucks, and is billed as impact‑driver friendly. There’s a “speed tip” ground on the drill end that helps it bite and stay centered, especially handy overhead or when you can’t get perfect pressure behind the tool.

If you do any kind of service work—electrical panels, controls, HVAC brackets, machine guards—8‑32 is everywhere. Not having to swap from a #29 drill to a hand tap to a countersink saves time and, just as importantly, keeps you from fishing around in a pouch for tiny taps that love to wander off.

Build and features

• Combination drill, tap, and countersink profile
• 1/4" hex shank that locks into impact drivers and quick‑change chucks
• High‑speed steel construction
• Ground “speed tip” for quicker starts
• Sized for 8‑32 UNC threads

The geometry is what you expect from a modern combo bit: a stubby pilot drill sized correctly for 8‑32, then tap flutes behind it, and a shallow chamfer at the shoulder to deburr/countersink on the way out. The hex shank seats solidly with no wobble in my quick‑change holders, and the bit’s length offers enough reach to clear light lips and channel.

In use with impact drivers and drills

I tested the bit primarily in a 3‑speed impact driver (low speed) and a compact drill/driver. It will run in an impact, but here’s the honest take: while the shank and body handle the hammering load better than a typical tap, you still get the best results by keeping the tool at a controlled, low RPM with steady feed. I prefer the drill/driver for the tapping phase because it’s smoother and easier to keep square, but in a pinch the impact driver works fine if you feather the trigger and avoid letting it rattle.

A typical cycle for me:
1. Center punch the mark.
2. A drop of cutting fluid on the spot (even a dab of light oil is better than dry).
3. Start slow to let the speed tip seat; keep light, straight pressure.
4. Once the drill breaks through, back the pressure off a notch as the tap engages.
5. When the threads are to depth, reverse to back out. Let the countersink kiss the edge on the way out.

That last step is underrated—the integrated countersink leaves a neat chamfer that helps screws start and reduces raised burrs that can scratch painted surfaces.

Performance across materials

• Mild steel sheet and panels (16–12 gauge): Clean, consistent holes and threads. The bit tracks well in a center‑punch mark, and I had no issues with chip packing in through‑holes. Thread fit with standard 8‑32 machine screws was snug and repeatable.
• Angle iron and strut (around 1/8"): Still very manageable. Just slow the speed down as the tap flutes engage and give it a quick reverse every couple of turns if you feel chips building.
• Aluminum: Like butter. Keep the speed under control to avoid galling; the countersink leaves an especially tidy edge in softer alloys.
• Stainless (thin 304 sheet): Possible, but not ideal. The bit will cut if you go slow with plenty of lubricant, but you’ll pay for it in tool life. For stainless beyond very thin sheet, I’d reach for cobalt tooling or a dedicated tap.

Combo bits are happiest in through‑holes. In blind holes, chip evacuation becomes tricky—especially at this smaller tap size—so I avoid that scenario with this style of tool.

Thread quality and control

Thread quality is surprisingly good for a single‑step process. The screws start easily and seat without crunchy spots or rework. That said, the tool rewards good alignment. If you lean the driver off axis, you can load one side of the tap flutes and risk breakage in thicker stock. The bit’s size—small by nature for 8‑32—means finesse matters more than brute force. Pre‑punching and keeping your wrist square go a long way.

The countersink is subtle, not a deep cone, which I prefer for small screws. It removes the burr and leaves a slight chamfer so the screw head doesn’t ride up on the edge. If you want a large, decorative chamfer you’ll still want a dedicated countersink.

Durability and maintenance

High‑speed steel is a sensible choice here. In mild steel with cutting fluid, I was able to produce a couple dozen threads before noticing any drop in sharpness. Running dry or too fast will shorten that quickly. The leading drill point is what dulls first, which is typical—once the drill struggles, the tap portion ends up doing extra work and that’s when you risk snapping it.

A few practical tips to extend life:
- Use cutting fluid, even a light oil. The difference in heat and tool wear is substantial.
- Keep speeds low. Think “tap speed,” not “drill speed.”
- Reverse to break chips if you feel the tool laboring.
- Avoid side loading; keep the driver aligned.
- Store it in a sleeve or pouch so the tip doesn’t get dinged.

Where it fits in my kit

I think of this bit as a field convenience tool. It’s fantastic for one‑offs, service calls, and overhead work where changing tools would slow you down or tempt you to “make do” with a self‑tapper. For shop runs with dozens of holes, separate steps (dedicated drill, tap, and countersink) still win for control, serviceability, and tool longevity. And if you’re working heavy sections or stainless regularly, you’ll want cobalt taps and a drill press when you can get to one.

Limitations to keep in mind

• Thickness ceiling: On small sizes like 8‑32, I cap material thickness around 1/8" in mild steel for comfort. You can push a little more with perfect technique, but the risk/reward isn’t great.
• Impact driver reality: “Impact‑ready” means the shank survives the driver, not that hammering is ideal for taps. Use low speed and a gentle trigger.
• Blind holes: Not the right tool; chip packing is too easy.
• Stainless: Occasional thin sheet is OK; otherwise use cobalt tooling and slower methods.

None of these are surprises—they’re inherent to combo bits and small tap sizes—but they’re worth noting so you don’t expect it to be a miracle worker.

Practical tips for best results

• Center punch every hole; it dramatically improves starting accuracy.
• Start at the lowest speed setting your driver offers.
• Use lubricant; even a drop makes chips curl and clear better.
• Back out periodically in thicker stock to clear chips.
• Let the countersink do its job on the exit—don’t force a deep chamfer.

Recommendation

I recommend the DeWalt 8‑32 tap/drill bit for tradespeople and DIYers who need quick, reliable 8‑32 threads in mild steel or aluminum, especially in the field. It genuinely saves time by combining drilling, tapping, and deburring into one smooth operation, and the hex shank fits right into an impact driver or quick‑change chuck without fuss. With sane technique—low speed, a drop of oil, good alignment—it produces clean threads and a tidy edge. I wouldn’t lean on it for heavy stainless, thick sections, or high‑volume production, but as a go‑to convenience bit in the pouch, it earns its keep.
