DeWalt Nailer and Compressor Combo Kit

What’s in the box and who it’s for

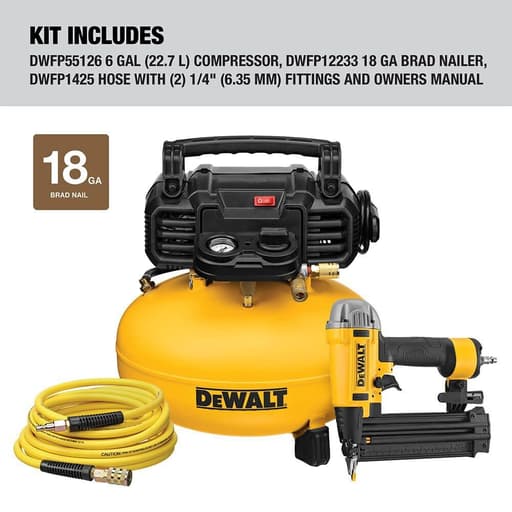

DeWalt’s brad nailer and pancake compressor combo is aimed squarely at trim carpentry, cabinetry, and general finish work. The kit pairs a 6‑gallon, oil‑free pancake compressor (165 psi max, 2.6 SCFM at 90 psi) with an 18‑gauge brad nailer that accepts 5/8 in. to 2‑1/8 in. brads. You also get a 25‑foot, 1/4‑inch hose with a coupler and plug, so you’re functionally ready to work as soon as you add nails. If you’re installing baseboard, casing, crown returns, shoe molding, cabinet trim, or light jamb work, this kit is right in the sweet spot.

It’s not a framing or roofing setup—nor is it meant to be. Think clean, accurate fastening on wood and MDF where hole size and surface marring matter.

Setup and build quality

The compressor arrives essentially ready to go: attach the hose, dial in the regulator, and you’re off. At roughly 30 pounds, the pancake tank is easy to carry room to room, and the footprint is compact enough to stash under a miter saw stand or in a closet during finish work. The control layout is intuitive: two clear gauges (tank and regulated pressure), a large regulator knob you can dial with gloves on, and a ball drain valve under the tank that makes purging moisture quick and tidy at day’s end.

DeWalt includes two universal quick‑connect couplers on the manifold, which means you can run a second tool without extra hardware. The included 25‑foot, 1/4‑inch hose is a practical length for most room‑scale tasks. As with most stock hoses, it’s happiest above freezing; it can get a little stubborn in cold weather, but it seals well and doesn’t kink excessively.

The brad nailer itself is compact with a Precision Point‑style nose, which is the right choice for tight corners and delicate reveals. The smaller nose gives a clear sightline and helps minimize surface imprinting. An oil‑free motor, rear exhaust, tool‑free depth control, and a front‑facing jam release round out the setup. There’s no bottle of tool oil to fiddle with, and there’s nothing in the box you’ll need to wrench on before first use.

Compressor performance

For trim work, the compressor hits the performance target. The 165 psi tank pressure offers a healthy buffer, and at 2.6 SCFM at 90 psi the compressor keeps pace with an 18‑gauge brad nailer in real workflow—not just single shots, but repeated fastening during baseboard and casing runs. Recovery is quick enough that I rarely found myself waiting. With the two couplers, I ran a brad nailer and a 16‑gauge finish nailer on intermittent cycles, and the compressor kept up during typical stop‑and‑go trim fitting. If you try to drive a 16‑gauge in sustained bump fire, you’ll eventually outpace the recovery, but that’s par for a 6‑gallon pancake.

The regulator is notably easy to dial. I could fine‑tune down to about 70–75 psi for thin MDF returns to avoid blowouts, then bump up to 100–110 psi for oak casing without the nail sitting proud. The gauges are accurate and stable. The ball drain valve is a small but appreciated upgrade over the fiddly petcock valves found on cheaper units; it encourages good habits because it’s so easy to flush condensation.

Power draw is friendly to household circuits—no issues sharing a 15‑amp breaker with a miter saw during normal use. Cold starts were uneventful in my shop at moderate temperatures; in freezing conditions I’d still give any oil‑free unit a few extra moments to come up to speed.

Noise and vibration

On paper, the unit is rated at 75.5 dBA. In practice, it’s quieter than many jobsite pancakes but not what I’d call “quiet” in the absolute sense. You can hold a conversation nearby, yet in enclosed rooms or long cycles you’ll still want hearing protection. Vibration is minimal and the compressor doesn’t wander across the floor, even on smooth concrete.

If I’m working in a finished space, I’ll often park the compressor just outside the room and run the hose through the doorway. The included 25‑foot hose helps here; add a short whip hose at the tool and you won’t feel tethered.

Nailer performance and accuracy

The 18‑gauge nailer is the standout half of the combo. The Precision Point‑style nose makes it easy to land nails exactly where you intend—inside corners, narrow bead, and cabinet face frames benefit from the improved sightline. Depth adjustment is via a simple thumb wheel near the nose, and it’s one of those rare depth dials that actually tracks predictably across different species. In pine and poplar, I was setting brads just below flush around 80–85 psi; in oak and maple, 100–110 psi with a slight turn on the depth wheel gave clean, consistent sets without crushing fibers.

Jam clearance is tool‑free and quick. I intentionally fed it a few gnarly strips of budget brads, and the front latch made short work of the occasional crumpled fastener. With good nails, misfires were rare. The rear exhaust keeps air and dust away from the work surface and your face—small detail, nice impact.

Triggering is crisp with a predictable safety contact. For trim where placement matters, the tool rewards a deliberate approach. If you’re used to blazing through material in bump mode, remember that precise, repeatable depth and placement is why you reach for 18‑gauge in the first place.

Ergonomics and handling

The nailer is compact and well balanced, easy to maneuver around casing returns and toe‑kicks. The nose leaves minimal witness marks, and the body clears most inside corners without contortion. I’d have no issue running this nailer all day on a trim‑out. The compressor’s carry handle is comfortable, and the weight is light enough that carrying it in one hand and a nailer in the other feels natural.

What I’d change

• The kit doesn’t include brads. That’s normal for most combos, but plan ahead and buy a variety pack (1‑1/4 in. and 2 in. cover most trim tasks; add 5/8–3/4 in. for delicate returns).
• The included hose is serviceable, but if you work in cold temperatures or want ultimate flexibility, upgrade to a premium polyurethane hose and add a short swivel whip at the tool.
• While the compressor is relatively quiet for its class, it’s still a pancake compressor—expect cycling noise. If you’re working in a quiet, occupied home, place it in an adjacent space when possible.

Durability and maintenance

The oil‑free pump and oil‑free nailer motor are the story here: no daily oiling, no oil mist near paint‑grade work. Maintenance is basically draining the tank at the end of the day and keeping water out of your lines—simple, repeatable, and quick. The build feels robust where it counts: fittings, regulator knob, and the jam door all inspire confidence.

Who will appreciate this kit

• DIYers and homeowners looking to install trim, build built‑ins, hang wainscoting, or tackle a kitchen refresh.
• Pros who want a compact, reliable trim setup for punch lists or room‑by‑room finish work.
• Anyone who values precise nail placement and consistent depth without fiddling.

If your work leans toward framing, roofing, or high‑demand pneumatic tools (die grinders, paint sprayers), step up to a larger tank and higher‑CFM compressor and pair it with the right nailers. This kit isn’t trying to be that.

Value

Given the compressor’s output, dual couplers, and the genuinely precise nailer, the kit makes sense as an all‑in one trim solution. There’s no fluff in the box, and there’s also nothing essential missing except nails. The ability to run two tools for intermittent finish work adds flexibility you don’t always get from compact setups.

Bottom line and recommendation

The combo kit nails the fundamentals: stable air delivery, quick adjustments, easy maintenance, and a brad nailer that places fasteners exactly where you intend with minimal surface impact. It’s portable, straightforward, and efficient for the kind of work 18‑gauge excels at.

I recommend this kit to anyone setting up for trim or cabinet finish work who wants a dependable, portable solution without chasing separate components. The compressor keeps pace with real‑world trim workflows, the nailer is accurate and easy to live with, and the overall package stays out of your way so you can get the details right. Add a couple boxes of quality brads and, if budget allows, a better hose—and you’ll have a trim setup that pulls its weight project after project.
