Skil Zero clearance table saw insert plate

Why a zero-clearance insert matters

Switching to a zero-clearance insert is one of those simple upgrades that pays off immediately if you care about clean edges and predictable cuts. The stock throat plates on many jobsite saws leave a generous gap around the blade; that’s convenient for manufacturing and blade swaps, but it’s not ideal for supporting fibers right at the cut line. With the Skil insert on my TS6307-00, the gap shrinks to essentially blade thickness. The result is less tear-out on plywood and veneered sheet goods, fewer splinters on rips, and small offcuts that don’t dive into the blade cavity.

Setup and first cut

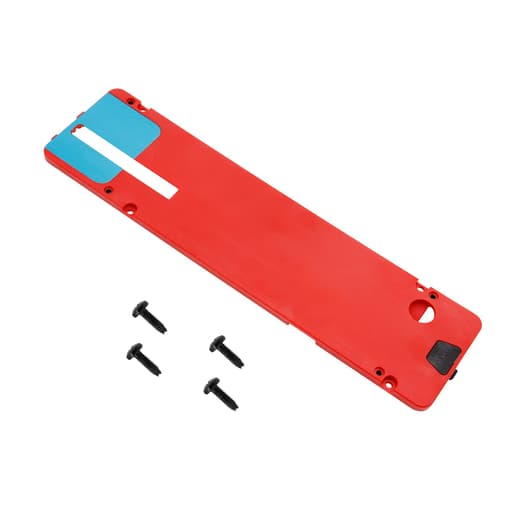

Out of the box, you get the insert and four leveling screws. Installation took a few minutes. I dropped the blade below the table, seated the insert, and used the included screws to micro-adjust the perimeter so it sat dead flush with the cast surface. The quick-release button locks the insert in place with a positive click; there’s no rattle and no rocking.

For the initial kerf, I followed the standard zero-clearance routine: installed the insert with the blade fully lowered, started the saw, and slowly raised the blade through the virgin plate. If you haven’t done this before, it’s a good idea to keep a firm hand on the insert or use a sacrificial board over the top as you raise the blade, just to keep everything steady. On my setup, the riving knife tracked perfectly with the blade and cleared the slot without interference. Once the slot was established, the insert behaved like it had always lived on the saw.

Fit, flushness, and rigidity

The fit is snug. The quick-release mechanism is genuinely useful here—the insert drops in square, and removal is a one-finger press. More importantly, the four adjusters make it easy to get flush. A throat plate that’s even a hair proud or recessed can snag stock, especially thin sheets or narrow rips. After leveling, I ran a dial indicator across the seams and couldn’t catch a fingernail. That’s critical for smooth feeding and consistent reference.

Rigidity is excellent. Under pressure from push sticks near the kerf, the insert didn’t flex or drum. That stability matters for two reasons: it keeps the workpiece fully supported as it passes the blade, and it removes one variable from the cut. Compared to typical plastic plates, this one feels more confidence-inspiring when you’re guiding small parts or nibbling thin rips.

Cut quality and accuracy at 90 degrees

With the insert in place, the improvement in cut quality on 90-degree work is obvious. Crosscutting prefinished plywood with a general-purpose blade, I saw crisp top edges with minimal to no breakout. Ripping face-frame stock, the fibers at the exit side stayed intact. Even on melamine—traditionally unforgiving without specialty blades—the top surface was notably cleaner than with the stock plate.

The benefit extends to accuracy in practical ways. Because fibers aren’t tearing out at the cut line, measuring off a fresh edge feels more trustworthy. Thin offcuts, which can chatter or sag into a wide throat opening, ride safely on the insert instead. That’s both a quality and a safety win, especially when you’re cutting small parts.

It’s worth calling out that this insert is designed for square cuts. If your workflow includes frequent bevel work, plan on using a dedicated insert for those angles (or swap back to the stock plate as needed). For 90-degree tasks, though, this is the plate you want to leave in.

Quick-release convenience

I underestimated how much I’d appreciate the quick-release until I had to swap plates twice in one session. Press the button, lift, and you’re out in a second. That’s handy for cleaning around the blade, changing blades, or swapping to a dado plate. The mechanism feels robust and hasn’t loosened over time. It’s a small convenience that you notice every time you touch it.

Compatibility and blade considerations

This insert is built around Skil’s 10-inch jobsite platform and fits the TS6307-00 perfectly. If you’re running that saw, there’s no shimming, trimming, or fussing—just drop it in and adjust height. On blade choice, keep in mind that “zero clearance” is only truly zero for the blade that created the slot. If you switch between thin-kerf and full-kerf blades, the existing slot will be slightly wider than one of them. The plate still works fine, but for the absolute cleanest results, consider dedicating an insert to each blade type you use most.

This isn’t a dado insert, and it’s not meant for wide stacks. Likewise, because the plate is shaped for 90-degree work, tilting the blade will contact the insert. None of that is a knock; it’s the nature of zero-clearance designs. The solution is simple: keep multiple labeled inserts for your common setups.

Safety and workflow improvements

Beyond cleaner edges, a good zero-clearance plate changes how you feel at the saw. Small parts don’t chatter as much. Narrow rips are more predictable because the work is supported right at the blade. Offcuts are less likely to disappear into the throat opening, reducing the chance of kickback or jams near the blade. Combined with a sharp blade and proper technique, the insert helps the saw behave more like a dialed-in cabinet machine—steady and predictable.

Dust control gets a modest bump too. With less open area around the blade, fewer chips drop straight into the cavity or ricochet back at you. On a jobsite saw, you won’t get cabinet-saw dust performance, but every bit of containment helps, and this plate contributes.

Durability and maintenance

After several weeks of routine use, the surface remains flat and unmarred, and the leveling screws stay put. The quick-release still engages positively. I’ve popped the plate out for blade changes and cleaning many times, and the fit hasn’t loosened. For maintenance, I occasionally check the flushness with a straightedge and make a quarter-turn tweak if needed—it takes seconds and keeps feed smooth.

If you routinely cut through stray brads in reclaimed stock or do a lot of abrasive composites, treat the insert like you would a good ZCI on any saw: inspect the slot occasionally for widening or burnishing. If you notice the kerf getting sloppy, dedicate a fresh insert to your finish work and press the older one into rough-duty service.

Tips for getting the most out of it

• Make the initial kerf with a sharp blade you plan to keep installed for clean work.
• Label the underside with the blade type (e.g., thin-kerf combo, full-kerf rip) and the date.
• Recheck flushness after transporting the saw; jobsite moves can shift set screws a touch.
• Keep a bevel or stock insert handy so you aren’t tempted to tilt the blade into a ZCI.
• Use a push shoe that rides the surface cleanly; the insert’s flushness makes feathering pressure more consistent.

Value and who it’s for

If you own the TS6307-00 and care about clean, square cuts, this insert feels like the right kind of upgrade: low effort, immediate payoff, and no learning curve. Yes, you can make shop-built inserts; I’ve done that for other saws. But on this platform, the dedicated fit, quick-release integration, and leveling hardware make the Skil insert a more polished solution—with less tinkering and better day-to-day convenience.

Recommendation

I recommend this insert to any TS6307-00 user who prioritizes clean 90-degree cuts and a smoother, safer workflow. It installs quickly, levels easily, locks in solidly, and delivers the core benefit a zero-clearance plate should: consistent support right up to the teeth, which means cleaner edges and more predictable cuts. If your work involves frequent bevels or dados, you’ll want additional dedicated plates, but as a primary 90-degree insert, this one earns a permanent spot on the saw.
