DeWalt Flaring Cup Guard

Why I reached for this guard

I spend a lot of time grinding and blending welds, and flaring cup wheels are a go-to when I want broad contact and a consistent finish. They can also throw an impressive amount of sparks and swarf. That’s where a purpose-built guard makes a difference. I mounted this DeWalt cup guard on a DW494 and spent several days using it on structural steel brackets, angle iron, and some plate clean-up to see how it changes both safety and workflow.

Setup and compatibility

Before anything else, check your grinder model. This guard is sized for 5-inch flaring cup applications and lists compatibility with the DW493 and DW494. On my DW494, the fit was straightforward: the guard used the grinder’s standard collar and clamp arrangement. Indexing the guard around the spindle to aim the spark stream took a minute, but it seated securely with no wobble or slop once tightened.

A few setup notes from my bench:

• Verify your wheel size. This guard is meant for 5-inch flaring cup wheels. Don’t try to shoehorn a larger cup under it.
• Dry-fit the cup and guard together before fully tightening. On my first attempt I had the guard slightly low, and the rim grazed the cup when I tilted the grinder. A small re-index solved it.
• Spin-test at idle for 30 seconds. I always do this after any guard or wheel change to confirm there’s no rubbing or vibration.

If you’re running a different DeWalt grinder or a third-party tool, don’t assume it’ll fit. The mounting collar and notch alignment matter, and this one isn’t a universal shroud.

Build quality and adjustability

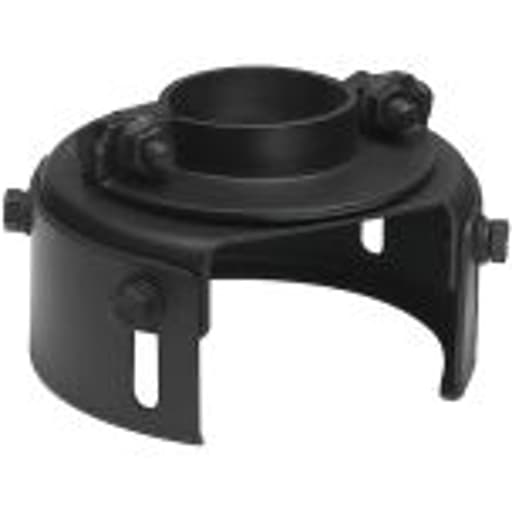

The guard feels like classic DeWalt stamp-and-bend steel, with a durable black finish that resists scuffs. Edges are clean—no burrs to catch gloves—and the formed lip does a good job channeling ejecta away from my hands. After several sessions, it shows the normal cosmetic wear you’d expect but no deformation or loosening.

Adjustability is simple. I could reposition the guard to change the throw of sparks without removing the wheel, though on my setup I did need to crack the clamp to re-index. There’s enough rotational range to cover most approaches: horizontal passes along a flange, vertical climbs up a bracket, and awkward angles when blending corners. The guard stays put once set; I never had it creep under load.

In use: shielding and sightlines

With a 5-inch flaring cup installed, the guard does two things particularly well:

1) It directs debris consistently. On long blending passes, I could angle the deflector so sparks sheeted away from my body and the workbench. Compared to running cup wheels “bare,” cleanup was noticeably improved and I had fewer errant flecks finding their way into cuffs or seams.

2) It protects hands without boxing you out. The profile is low enough that I could still get the wheel where it needed to be on welds in a channel and along the inside of angle iron. It’s not magic—you’re adding a physical barrier—so there are limits in tight, recessed spots, but I didn’t feel like I was fighting it.

Sightlines are always the trade-off with guards. On flat work the view is fine; the open side gives me a clear look at the contact patch. At steeper approach angles, the guard blocks the top edge, so I had to re-index it to keep a clean view of the grind. That’s standard for this class of accessory, and the adjustability makes it manageable.

Control and ergonomics

The guard adds a bit of mass out front, but on the DW494 the balance remained neutral. I appreciated being able to set the side handle position to complement the guard orientation—keeping my off-hand behind the deflector made long passes more comfortable. Heat didn’t build up in the guard in any worrying way; a quick cool-down between passes was enough, and the finish didn’t discolor.

One plus I didn’t expect: the guard makes it easier to feel when you’re getting too aggressive with a cup. If I rolled the wheel too far, the guard would gently cue the limit before I started to dig in. That feedback kept my cuts consistent and reduced chatter on thin stock.

Safety and compliance

Running a flaring cup without a guard is asking for trouble, especially when the workpiece throws edges back at you. This guard provides solid coverage over the top and trailing sides of the wheel, which is what I want for operator protection and to stay in line with shop safety policies. It’s not a dust shroud, and it doesn’t connect to extraction; if you need silica or fine particulate control, this isn’t the tool for that job. For metal grinding, it excels at blocking sparks and chunkier swarf.

I checked the guard and cup after each wheel change and after a couple of bumps against a bracket flange. The guard never shifted, and there were no hairline cracks or bent edges—reassuring for an accessory that takes a fair amount of incidental abuse.

Durability and maintenance

After a week of daily use:

• The clamp hardware stayed tight. I didn’t need threadlocker, but I did recheck torque at lunch and end of day.
• The finish held up to spatter and a few knocks. Wiping it down with a rag kept it looking decent.
• The pivot and indexing surface didn’t gall or bind. A light brush to remove packed swarf was all the maintenance required.

I expect long service life as long as it’s not used as a pry bar or dropped from height. It’s a simple, robust part—no moving parts to fail beyond the clamp.

Limitations

• Grinder-specific fit. If you don’t run a DW493 or DW494, there’s no guarantee it will mount correctly.
• Not a universal shield. It’s optimized for 5-inch flaring cup wheels, not flat discs, wire cups, or brush wheels. Some of those will physically fit, but you won’t get the intended coverage.
• Adds bulk in tight spaces. Inside corners and recessed welds may force you to remove the guard to reach—which I don’t recommend. Plan your grind paths accordingly.
• Adjustment may require loosening the clamp. If you’re used to fully tool-free, one-hand guard rotation, be aware you might need to stop and tweak.

Who it’s for

• Fabricators and maintenance techs who regularly run 5-inch flaring cups on compatible DeWalt grinders.
• Shops with safety policies that require cup-specific guarding and predictable spark management.
• Anyone tired of chasing hot debris across the floor and their sleeves.

If you mostly run flap wheels or thin cut-off discs, this is the wrong accessory; look for the guard designed for those wheels or a dust shroud if you’re grinding masonry.

Tips for best results

• Set the guard orientation to push sparks away from your body and any flammables. Re-index when you change approach angle.
• Use the correct wheel height relative to the guard lip to avoid contact at full tilt.
• Clean swarf out of the guard at breaks to maintain smooth adjustment and avoid heat soak.
• Never exceed the wheel size or RPM rating specified by your grinder and wheel.

Recommendation

I recommend this guard for anyone running 5-inch flaring cup wheels on a DW493 or DW494. It’s secure, straightforward to adjust, and offers meaningful protection without getting in the way of the work. The debris control alone makes a long day at the grinder safer and cleaner, and the build quality is what I expect from an OEM part. The caveats are simple: it’s a niche, model-specific accessory, and it won’t solve dust extraction. If those fit your use case, this guard is a practical, reliable addition to your grinder setup.
