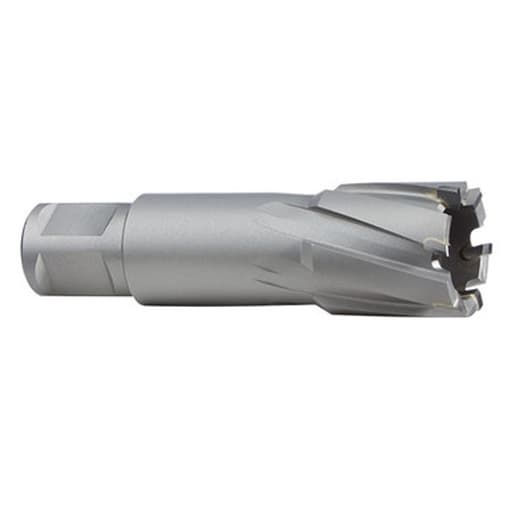

Milwaukee 1-3/16" TCT Annular Cutter 2" Depth

Drilling through tough materials can often be a daunting task, but the Milwaukee 1-3/16" TCT Annular Cutter with a 2" depth has proven to be a game-changer in my workshop. This cutter, model number 49-59-4119, is designed specifically for hard metal applications, including stainless steel and cast iron. It boasts a 3/4" Weldon shank, making it compatible with a variety of magnetic drill presses, which is a significant advantage for anyone who needs versatility in their tooling.

Design and Construction

One of the most impressive features of this annular cutter is its thin-wall construction. This design reduces the amount of material removed during drilling, which not only speeds up the process but also minimizes wear and tear on the tool itself. This is particularly useful when working with hard metals, where prolonged drilling can lead to significant tool degradation. The advanced tooth geometry further enhances cutting and cleaning efficiency, ensuring that the tool remains effective even after multiple uses.

Performance

In my recent project, I had to drill several 1-3/16" holes in heat-treated steel bars that were 3/4" thick. Using a vertical milling machine with a standard collet, I found that the annular cutter performed exceptionally well. Setting the machine to a speed of approximately 220 RPM and using plenty of cutting oil, I was able to make each hole in about three minutes. This was achieved with a conservative feed rate to ensure the carbide held up, and I have no doubt that this tool could easily handle many more holes without any issues.

The cutter's ability to maintain its sharpness and efficiency over multiple uses is a testament to its high-quality carbide insert. It's a much cheaper alternative to cobalt drill bits or carbide plunge end-mills of similar sizes, especially when dealing with hard or heat-treated materials. This cost-effectiveness, combined with its performance, makes it a valuable addition to any workshop.

Compatibility and Versatility

The 3/4" Weldon shank is a notable feature, providing compatibility with various magnetic drill presses, including my Milwaukee 4272-21 mag drill. This versatility is a significant advantage, allowing me to switch between different machines without needing to purchase additional tooling. The cutter is also designed to be used with the Milwaukee pin 49-59-0014, ensuring secure and stable operation during drilling.

Ease of Use

Using the Milwaukee annular cutter was straightforward and hassle-free. The tool's design facilitates easy chip clearing, which is crucial when working with hard metals. This not only speeds up the drilling process but also reduces the risk of overheating and tool wear. The cutter's efficiency in material removal means less time spent on each hole, making it an excellent choice for projects with multiple drilling requirements.

Durability

Durability is always a concern with any cutting tool, especially when used on hard materials. The Milwaukee annular cutter, however, exceeded my expectations. After drilling multiple holes in heat-treated steel, the cutter showed no significant signs of wear. The advanced tooth geometry and high-quality carbide insert contribute to its longevity, making it a reliable tool for repeated use.

Limitations

While the Milwaukee annular cutter has many strengths, it's worth noting that it cannot be resharpened. This means that once the cutter reaches the end of its usable life, it will need to be replaced. However, given its cost-effectiveness and durability, this is a minor drawback. The tool's performance and longevity more than justify its price, and the inability to resharpen it does not significantly detract from its overall value.

Final Thoughts

The Milwaukee 1-3/16" TCT Annular Cutter with a 2" depth is an exceptional tool for anyone needing to drill through hard metals. Its thin-wall construction, advanced tooth geometry, and high-quality carbide insert make it a highly efficient and durable option. The 3/4" Weldon shank adds versatility, allowing it to be used with various magnetic drill presses.

In my experience, this cutter has proven to be a cost-effective and reliable solution for drilling in heat-treated steel. Its performance, ease of use, and durability make it a standout choice for both professional and DIY projects. While the inability to resharpen the tool is a minor limitation, it does not overshadow the numerous benefits it offers.

Recommendation

I highly recommend the Milwaukee 1-3/16" TCT Annular Cutter for anyone working with hard metals. Its excellent performance, durability, and cost-effectiveness make it a valuable addition to any toolkit. Whether you're a professional tradesperson or a DIY enthusiast, this tool will undoubtedly enhance your drilling capabilities and make your projects more efficient.
