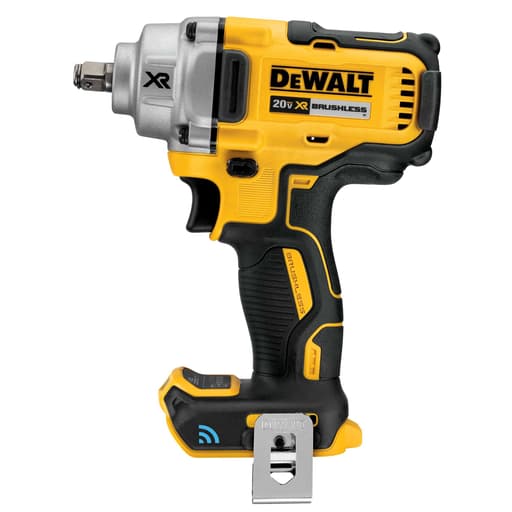

DeWalt 20V MAX XR Cordless Brushless 1/2 in. Mid-Range Impact Wrench with Hog Ring Anvil and Tool Connect (Tool Only)

Why this mid‑range impact earned a spot in my kit

I put the DeWalt mid‑range 1/2‑in impact (DCF896) through a mix of shop tasks—lug nuts, suspension hardware, stubborn fasteners on small equipment—and it hit a sweet spot I like: compact size with enough torque to matter, plus genuinely useful electronic control. It’s not DeWalt’s bruiser, and it’s not trying to be. But for day‑to‑day fastening and mid‑level breakaway work, it’s efficient, consistent, and noticeably easier to live with than many high‑torque bricks.

Design and ergonomics

At 3.9 lb bare and about 6.95 in long, the tool is compact for a 1/2‑in drive. DeWalt’s handle geometry continues to be comfortable, and the balance is excellent with a 5Ah 20V MAX pack. The brushless motor helps keep the head size down and reduces vibration; combined with the variable‑speed trigger, the tool feels predictable rather than twitchy.

The hog ring anvil does what hog rings do—fast socket swaps without chasing a detent pin. Retention is firm out of the box and stayed consistent for me over a couple weeks of daily use with impact‑rated sockets. If you’re constantly swapping deep wells and universals, expect normal hog‑ring wear over time. A quick wipe and a touch of light oil on the anvil face helps sockets slide without tearing up the ring.

The onboard LED is bright, and because brightness and delay are user‑configurable, it’s more than an afterthought. A small detail: the light’s throw actually reaches where you’re working around wheel wells and subframes, which isn’t always true with compact impacts.

Power where it counts

DeWalt rates the DCF896 at 330 ft‑lb fastening and up to 600 ft‑lb breakaway. Numbers aside, here’s how it behaved for me:

• Automotive: It zipped off passenger‑vehicle lug nuts torqued to 100–140 ft‑lb without drama and handled caliper bracket bolts and strut hardware cleanly. On rusted hardware, it benefits from a short soak with penetrating fluid, but so does every mid‑range impact.
• Light truck work: It removed many lug nuts and hitch hardware, but heavily corroded or over‑torqued fasteners on larger trucks occasionally needed heat or a breaker bar. That’s the reality of a mid‑range: it keeps the size and weight manageable, but it isn’t a replacement for a high‑torque 1/2‑in when you’re fighting the worst of the worst.
• Small equipment and fabrication: With the lower speed modes engaged, it’s controlled enough for assembly work without overdriving fasteners.

Max speed is 0–2000 rpm with up to 3100 ipm. The trigger modulation is smooth, and the ramp‑up is linear, which makes setting a fastener to snug before impacting very easy.

Precision controls that actually help

What sets this model apart is the electronic behavior you can tailor:

• Three programmable modes: You can set speed, LED brightness and delay, and even impact behavior for each mode. I set up Mode 1 as a low‑speed assembly mode, Mode 2 for general duty, and Mode 3 for breakaway work.
• Precision Wrench: This is excellent for aluminum wheels and repeatable torque targets. In forward, it pauses after seating to reduce over‑torque; in reverse, it slows when a nut breaks free so it doesn’t launch across the shop. Once you get used to it, you notice how many fasteners you’re not re‑hunting on the floor.
• Precision Tap: If you tap threads occasionally, the forward/reverse alternation actually works. It’s not a replacement for a tapping head, but for cleaning up threads or tapping softer materials, it’s a thoughtful addition.

These aren’t gimmicks. They reduce rework, protect parts, and make the tool feel more refined.

The Tool Connect app: more than a novelty

Bluetooth is built in, and pairing is painless. Within the app, you can:

• Configure modes in detail (speed ceilings, LED behavior, Precision Wrench parameters).
• See diagnostics like runtime, trigger pulls, and temperature trends.
• Track last‑seen location and enable inventory features like out‑of‑range disable.

Two notes from real use. First, once you set up the modes you like, you rarely need the app day‑to‑day; the tool retains settings. Second, out‑of‑range disable is great for shared shops, but if you enable it, be mindful that a dead phone or leaving the area could pause your work. I keep tracking on and the kill‑switch off unless I’m traveling between sites.

Battery and runtime

This is a “tool‑only” purchase. Paired with a 5Ah pack, I got a full day of mixed tasks (dozens of lug nuts, suspension bolts, equipment fasteners) without needing a swap. Heavy, continuous breakaway work will demand a second battery, as always. The brushless motor is efficient, and the tool doesn’t get uncomfortably hot—useful when you’re in and out of impacts during a job.

Durability and service

Fit and finish are solid, with tight housing seams and a well‑protected nose. The anvil shows normal wear marks but no slop after steady use. As with any impact, use impact‑rated sockets and extensions, keep debris off the anvil, and don’t run it into a bind with wobble sockets at odd angles—you’ll extend the life of the mechanism and the hog ring.

DeWalt backs it with a 3‑year limited warranty, 1‑year free service, and a 90‑day money‑back guarantee. That’s a respectable safety net, and parts support for DeWalt’s 20V MAX line is widely available.

What could be better

• More top‑end speed: 2000 rpm is fine for most jobs, but a slightly higher ceiling can speed up long fasteners.
• Hog ring longevity in high‑cycle environments: It’s the right choice for quick socket swaps, but heavy daily use can fatigue a hog ring faster than a detent pin. If you live under a lift all day, plan on periodic ring replacement or consider a detent‑pin anvil variant if retention is priority one.
• App reliance for deep configuration: You can change modes on‑tool, but detailed tuning requires the app. It’s a trade‑off for having that much control.

Who it’s for

• Automotive techs and serious DIYers who want one 1/2‑in impact that handles wheels, brakes, suspension, and general fasteners without the bulk of a high‑torque.
• Maintenance and MRO techs who benefit from programmable modes and tracking across a shared inventory.
• Fabricators who appreciate precise control and a compact head that gets into assemblies.

If your daily life involves seized hardware on heavy trucks and equipment, keep a high‑torque 1/2‑in or a 3/4‑in impact alongside this. The mid‑range class is about balance, not maximum brute force.

Practical setup tips

• Create three modes that match your workflow: a low‑speed assembly mode, a general‑purpose mode with Precision Wrench on, and a high‑power breakaway mode.
• Keep a light oil film on the anvil face and use quality impact sockets; it improves socket changes and extends hog ring life.
• If you share tools, enable last‑seen tracking in Tool Connect and label the tool in the app; skip out‑of‑range disable unless theft prevention outweighs convenience on your site.

The bottom line

The DeWalt mid‑range impact pairs real torque with best‑in‑class electronic control and a compact form factor. It’s powerful enough for most automotive and maintenance tasks, small enough to carry all day, and smart enough to save you from over‑torqueing and runaway fasteners. The app integration isn’t just window dressing; it meaningfully improves how the tool behaves in your hands and helps manage it in a team environment.

Recommendation: I recommend it for techs and advanced DIYers who want a versatile, compact 1/2‑in impact with thoughtful controls. It’s not a replacement for a high‑torque in heavy truck or severely corroded work, and hog ring users should expect normal wear with high‑cycle socket swaps. But as an everyday impact that prioritizes control, efficiency, and size without giving up real breakaway capability, it’s an easy choice.
