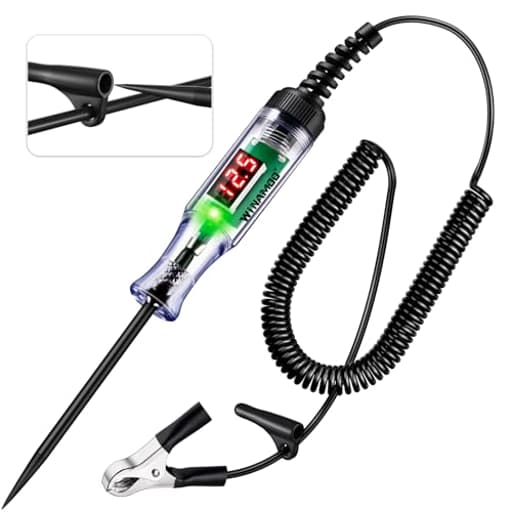

WINAMOO Automotive Test Light with 3-48V LED Digital Voltage Display, Auto Circuit Tester with Voltmeter & Dual Color Polarity Indicate, Electric Test Pen w/Stainless Probe for Car/Truck/SUV Checker

Why I reached for this test light

I keep a few quick-diagnosis testers in my truck because not every electrical problem warrants breaking out a full DMM and back-probing kit. The Winamoo test light has earned a spot in that everyday tier: it’s simple, fast, and gives me just enough information to move from “something’s wrong” to “this is where it’s wrong” without fuss. It’s a hybrid between a classic test light and a basic voltmeter, and that combo works surprisingly well for 12 V and 24 V automotive work.

Design and build

The housing is a clear, hard ABS shell with an ergonomic shape that’s easy to hold even when you’re stretched across an engine bay. It’s light, but it doesn’t feel flimsy. The stainless-steel probe is properly sharp—good for piercing insulation when you have to—and there’s a protective cap tethered to the lead so it doesn’t go missing. That tether sounds trivial until you’ve spent too long fishing around a toolbox for a tiny rubber cap.

A 96-inch coiled lead runs to a large alligator clip. Eight feet is the right call here; I can clip to the battery and reach a fuse box on a full-size truck without juggling extensions. The coil has enough spring to stay tidy, though like most coiled cords it has some “memory,” so you’ll feel a bit of tug if you stretch it close to its limit. The clip opens wide and grips well on clean metal. On painted or corroded surfaces, I still needed to hunt for a good bite or scrape a spot—par for the course with most budget clips.

One quirk: if you really torque on the body as you reposition, the internal board and display can rotate slightly inside the housing. It doesn’t affect function, and a small twist puts it back square, but it’s something I noticed.

Display and polarity indication

The LED display is the star of the show. It updates quickly and reads in 0.1 V increments from 3–48 V. In daylight, it’s more legible than I expected for an inexpensive tool—direct sun can wash it a bit depending on the angle, but I could still get a reading without shade in most cases. At night or in a garage, it’s bright and clear.

Polarity is handled with a simple color cue: red for positive, green for negative. That alone saves time. Clip to ground and probe for power, you’ll see red. Clip to power and probe a ground point, you’ll see green. It’s immediate feedback and avoids mental gymnastics when you’re checking mixed circuits or chasing a poor ground.

Accuracy and speed

For quick checks, it’s accurate enough to trust. On a fully charged battery at rest, the display showed 12.64 V while my benchtop DMM read 12.62 V. With the engine running, charging voltage bounced between 14.2–14.4 V on both instruments. During a crank test, I saw a dip to about 10.3 V, which matched what I expected. It’s not the tool I’d use to confirm a 0.02 V drop on a precision sensor line, but for automotive diagnosis, it’s right on the money.

Response time is snappy—tap a point and you get a stable number without hunting. I didn’t see jitter or flicker beyond what you’d expect from the electrical noise under the hood.

In use: quick diagnostics that matter

Where this tool shines is the bread-and-butter checks:

• Power present at the fuse? Tap and go.
• Bulb out on a trailer? Check for power at the socket, then check the ground in seconds by flipping how you clip.
• Charging system healthy? Clip to battery negative, probe the positive post and you have a charging voltage number immediately. Rev the engine, turn on headlights/blower/rear defrost, and watch the number—good enough for a first pass on alternator function.
• Voltage drop across a suspect connection? Probe before and after the connector and compare. You won’t get millivolt resolution, but you will spot the obvious offenders.

It’s rated from 3–48 V, which means it’s comfortable on 24 V systems and even low-voltage device checks. I used it on a bench supply to verify 5 V and 9 V outputs; the readings tracked well. On-vehicle ECU 5 V reference lines are always a judgement call with any probe, but the Winamoo behaves more like a high-impedance meter than an old-school incandescent test light, so it’s gentler on sensitive circuits. Even so, I still avoid piercing ECU reference lines unless I need to, and I recommend back-probing connectors where possible.

Ergonomics and day-to-day usability

The handle shape and balance are right; you can hold it like a pen, brace against a fuse box edge, and hit small terminals without drama. The stainless probe is long enough for tight spots, and the protective sleeve is actually useful in-pocket—it prevents accidental pokes and keeps the tip from chewing up a tool bag.

Storage-wise, it’s glove-box friendly. The coil wraps neatly, the cap stays put, and the overall footprint is compact enough to live in a door pocket. That matters to me; a tool I can keep close is a tool I actually use.

Durability and safety

The ABS shell has handled a few drops without cracking. The transparent body makes it easy to see if moisture has snuck in (I didn’t see any fogging after a damp morning under a hood). The probe hasn’t dulled after piercing a handful of jacketed wires. I didn’t find a user-serviceable fuse in-line, so treat it like any other powered test light—don’t use it as a substitute for a load tester or a power probe. It’s meant to measure, not to energize circuits.

On safety, the usual rules apply: watch where you place that sharp tip, cap it when you’re done, and avoid piercing wires on modern CAN lines unless you absolutely must.

What I’d improve

• The alligator clip is adequate but not stellar. A stronger spring or serrated jaws with a bit more bite through oxidation would make ground connections easier in the field.
• The internal board’s tendency to rotate under torque could be solved with an extra locating tab inside the housing.
• A small rubber boot or guard around the probe base would add confidence when working in crowded harnesses to avoid accidental contact with adjacent terminals.

None of these are deal-breakers; they’re the types of refinements you see on pricier shop-grade testers.

Where it fits in a toolkit

The Winamoo test light is a fast, one-handed way to confirm power, ground, and approximate voltage on anything from a headlight circuit to a trailer plug to a 24 V truck battery. It won’t replace a full multimeter for deep diagnostics, and it’s not a load tester. But it dramatically speeds up the first half of troubleshooting—finding where the voltage starts, where it stops, and what the system is doing under basic loads.

If you’re working in tight spaces or bouncing between checks, the display-plus-polarity combo is a real time saver versus a lamp-only test light. And if you’re a DIYer or a mobile tech who values compact tools, the reach and readability make it a practical everyday carry.

Recommendation

I recommend the Winamoo test light for anyone who wants a reliable, inexpensive voltage tester that’s faster to use than a multimeter and more informative than a bulb-style probe. It hits a sweet spot: 0.1 V readout, clear polarity indication, an eight-foot lead that reaches across full-size vehicles, and a sharp, protected probe—wrapped in a durable body that’s easy to stash in a glove box. The clip and internal fit could be a notch better, but those are minor compromises given the utility and price. For quick automotive and trailer diagnostics on 12 V and 24 V systems, it’s a tool I’m happy to keep within arm’s reach.
