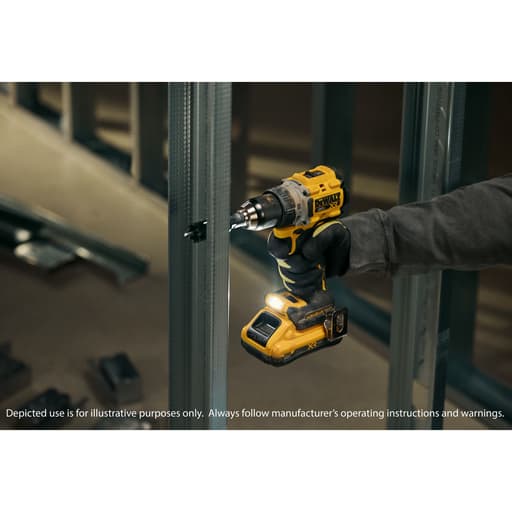

DeWalt 20V MAX XR Brushless Cordless 1/2 in. Drill/Driver

First impressions and setup

I spent the past few weeks putting DeWalt’s latest 20V compact drill/driver through typical jobsite and shop tasks—cabinet installs, pocket holes, hole saws, and some light exterior work. I’ll refer to it simply as the DeWalt 20V drill. It’s a tool-only purchase, so I paired it with a mix of 2.0Ah and 5.0Ah 20V MAX packs and a compact PowerStack. Out of the box, the drill feels stout and tight, with a compact nose (about 6.37 in. long) and a balanced stance even with a larger battery. The metal 1/2 in. ratcheting chuck and the brushless motor signal that this is a serious driver aimed at pros and demanding DIYers who want power without stepping up to a hammer drill or a right-angle specialty tool.

Ergonomics and build quality

The handle geometry and overmold hit a sweet spot for me—secure without being overly sticky. At 3.2 lb bare, it stays nimble when you’re reaching overhead or inside a cabinet. The belt hook is simple but reliable, and it’s the kind you actually use because the weight doesn’t turn it into a pendulum with every step. The chuck has high-quality knurling and closes true; bit retention has been excellent with everything from 1/16 in. twist bits to a 2-1/8 in. bi-metal hole saw arbor. The clutch collar clicks positively through 15 positions and the two-speed gearbox locks into place without vague half-stops.

The integrated LED work light is more useful than most. You can choose among three brightness settings, and at the top setting (rated 70 lumens), it throws a clean, usable pool of light without blowing out your target. The auto-shutoff prevents accidental battery drain. In cramped cabinets and dim basements, I relied on it more than I expected.

Speed, torque, and control

On paper, the drill runs 0–650 rpm in low and 0–2000 rpm in high, with a rated 1050 MWO (Max Watts Out). In practice, the trigger modulation is where it shines. Low gear offers excellent finesse for driving cabinet screws without overcooking the heads, and the clutch transitions cleanly when you need to protect a finish. High gear feels appropriately fast for small holes and pilot work, and it stays on plane when you lean in. For larger fasteners—structural screws and lag pre-drilling—low gear brings the grunt. I never felt it run out of breath on typical framing or cabinetry tasks.

Where many compact drills stumble is the handoff between speed and torque during a bind. This one keeps its composure. I ran 7/8 in. ship augers in SPF studs and a 2-1/8 in. hole saw through plywood and drywall stacks; the drill held speed well and didn’t chatter or pulse under load. It’s a controllable kind of power rather than a brute-force surge.

Anti-rotation safety that actually matters

One standout feature is the anti-rotation system. When a bit binds hard, the drill senses that spike and stops rotation to protect your wrist. I intentionally induced binds with a large hole saw and a spade bit meeting a hidden screw; the system shut the motor down quickly and consistently. There’s an indicator LED when it engages, so you know it wasn’t a dead battery or user error. If you’ve ever had a drill twist your arm when a bit catches, this is a meaningful safety net that doesn’t feel intrusive during normal use.

Precision driving and clutched work

The clutch is predictable and repeatable. For cabinet screws into hardwood carcasses, I used settings mid-range and got clean, flush seats without cam-out. The motor’s smooth start helps prevent “walking” on delicate surfaces. For pocket-hole assemblies and hardware installs, I appreciated the fine control at the low end of the trigger—no jerky start, no sudden ramp that can blow past the clutch setting.

Runtime and battery pairing

Runtime always depends on the battery you choose. With a 5.0Ah pack, I got through a full morning of drilling and driving on a deck fascia install without swapping batteries. With a compact 2.0Ah pack, I still made it through a full vanity install and hinge adjustments. The manufacturer notes up to 175 holes per charge with a 7/8 in. auger in 1-1/2 in. SPF when using their specified battery. My experience aligns with that level of efficiency—pair it with a larger-capacity pack for sustained boring, and a compact pack for trim and assembly work where weight matters.

Heat management felt solid; the tool never got uncomfortably warm, even after repeated hole-saw cuts. The brushless motor contributes to that efficiency, as you’d expect in this class.

Not a hammer drill—and that’s okay

It’s important to be clear: this is a drill/driver, not a hammer drill. In brick or block with a quality masonry bit, it will make neat, controlled holes at a reasonable pace. In old, hard concrete, you’ll want a hammer drill or, better yet, a rotary hammer. I did a handful of anchors in brick with no drama, but for concrete slab fasteners I switched to a dedicated hammer tool. If a significant portion of your work involves masonry, plan your kit accordingly.

Connectivity and fleet features

The tool is chip-ready for DeWalt’s Tool Connect system. If you manage a crew or simply like asset tracking, you can add the optional chip and integrate it into the app for location and management. It doesn’t change performance, but it’s a helpful insurance policy for shared tools and larger jobsites.

Everyday usability

Small touches add up. The short overall length lets you hit awkward angles inside carcasses and between studs. The two-speed switch is easy to find without looking. The chuck jaws are confidence-inspiring; I experienced no bit loosening, even on quick start-stop cycles. The variable-speed trigger is among the better ones in this segment, and the light output is high enough that I rarely reached for a separate task light.

If I had wish-list items, they’d be modest: a factory bit holder would be handy, and a dedicated “spotlight” timer mode would be nice for long-duration lighting while measuring or marking. Neither is a deal-breaker.

Durability and support

This drill feels like it will take jobsite abuse. The housing and gearbox show tight tolerances, and there’s no extraneous play anywhere in the controls. DeWalt backs it with a 3-year limited warranty, 1 year of free service, and a 90-day satisfaction guarantee, which is competitive and provides a comfortable buffer if you’re standardizing a kit or replacing an older drill.

Pros

• Compact, balanced form factor with excellent trigger control
• Strong low-gear torque and smooth power delivery
• Effective anti-rotation shutoff that reduces kickback risk
• Metal 1/2 in. ratcheting chuck with great bit retention
• Three-level LED work light with useful brightness
• Chip-ready for Tool Connect asset management
• Good runtime with both compact and high-capacity batteries

Cons

• No hammer mode; not ideal for frequent concrete work
• Tool-only purchase means budgeting for batteries/charger if you’re new to the platform
• Lacks a built-in bit holder

The bottom line

The DeWalt 20V drill hits a practical balance of size, power, and control that suits most pro carpentry, remodel, and maintenance tasks. It’s compact enough for finish work, powerful enough for framing odds and ends, and its safety shutoff is the kind of feature you appreciate the first time a bit catches. If you already live on the 20V MAX platform, it’s an easy upgrade from older brushed models and a strong complement to a dedicated hammer drill or rotary hammer.

Recommendation: I recommend this drill/driver to pros and serious DIYers who need a compact, high-control workhorse for wood, metal, and fastening tasks. It’s not the right primary tool if your workload is heavy masonry, but as a general-purpose drill/driver with real safety features, excellent ergonomics, and solid runtime, it earns a spot on the belt.
