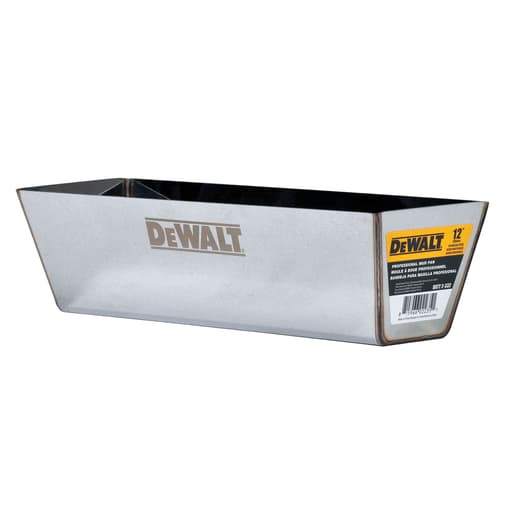

DeWalt 12 in. Stainless Steel Mud Pan with Curved Bottom

Why this pan has been living on my hip

I reach for stainless steel mud pans for most taping and patching, and lately I’ve been giving the DeWalt mud pan a steady workout across a bathroom gut, a basement skim, and a handful of ceiling patches. It’s a 12-inch, 21‑gauge stainless pan with a curved bottom and heli‑arc welded end caps. On paper, that checks the right boxes. In practice, it’s a thoughtfully executed mid‑weight pan that balances clean scraping, easy cleaning, and a comfortable grip—though those who like a tank‑like pan might want thicker steel.

Build, fit, and finish

Out of the box, the polish is even, the seams are tidy, and the heli‑arc welds at the end caps are consistent with no pinholes or wobbly beads. The inside corners are sealed, not just caulked with excess weld, which matters later when dried compound wants to hide in gaps. The 21‑gauge stainless (roughly 0.9 mm) keeps the weight to an easy 1.1 lb empty, and the body panels are straight with square alignment to the end caps—no twist or bow that would affect scraping.

A quick note on the edges: they’re sheared and straight. That’s the right call for reliable blade wipes, but it also means they arrive crisp. Not razor-like, but crisp enough that if you white-knuckle the rim bare-handed or run a fingertip along the edge, you’ll feel it. I gave mine a light pass with a Scotch-Brite pad just to knock down any micro-burrs, and that’s been perfect.

The curved bottom is more than a gimmick

The most obvious design choice is the contoured bottom. Compared with a flat-bottom pan, the curve does two things:

• Ergonomics: It nests into the palm when you cradle the pan, so your forearm and wrist carry the load without the hard pressure point of a flat seam. On longer taping runs, that’s noticeable.
• Mixing: Using a 4" or margin trowel, the compound folds back on itself along the curve. You get fewer unmixed pockets when you blend fresh mud with what’s left in the pan.

The curve also helps cleanout; a quick swipe with a 4" knife tracks along the contour and leaves minimal residue.

In the field: loading, scraping, and control

With a 12" length, it partners naturally with 6", 8", 10", and 12" knives. The edges are straight and true, so knife wiping is consistent end to end. I can load a 12" knife in one smooth pass without leaving a ridge on the blade. The 4" width is a good compromise: slim enough to keep the pan close to the body and wide enough to hold enough compound for a dozen seams before refilling.

The 5" depth is generous, which makes a difference when you’re feathering wide and want to keep a wetter load on one side and a stiffer mix on the other. Splatter control is better than shallower pans; the rim height keeps flick-off inside even when working above shoulder level.

Rigidity and weight

At 21‑gauge, the body has some spring if you intentionally squeeze it, but it doesn’t oil-can in normal use. That slight give is actually helpful with grip; the pan settles into the hand without feeling tinny. That said, if you are used to the absolute rigidity of an 18‑gauge stainless pan, you will notice the difference. For me, the tradeoff is worth it: the lighter weight reduces fatigue, and the pan still holds form when fully loaded.

Welds and watertightness

Heli‑arc welded end caps are a standout. I soaked and rinsed the pan repeatedly over a week of taping, and there was no seepage into the seams, no rust bloom at the welds, and no staining lines inside. Watertight seams also mean you aren’t scraping out mysterious gray slurry from a joint line months later. It’s one less source of contamination that can cause fisheyes or grit in your finish coats.

Daily cleanup and long-term maintenance

Polished stainless pays off at the sink. Dried mud releases with a nylon brush and warm water, and the sealed corners keep you from chasing hardened compound out of a tight V. The curved bottom lets you squeegee most of the leftovers with a knife before you even turn the water on.

Two practical tips:
- Knock the edges lightly with a Scotch-Brite once; you keep the straight wipe without the nicks on gloves.
- Don’t store knives inside the pan in transit; a bouncing blade can nick the edge and make it harsh on future wipes.

After several weeks, mine shows the usual hairline scuffs but no dings, no seam lifting, and no tarnish.

Ergonomics and handling

Polished steel can be slippery when your gloves are dusty. The contoured bottom helps, as does the pan’s moderate width—you can clamp it comfortably underhand. I never lost grip, even on a ladder. If you prefer an overhand pinch on the rim, consider adding a bit of cloth tape at your typical contact spots for extra bite. Balance is neutral with a half-load, slightly nose-heavy when full, which I prefer; the compound sits forward and is easy to reach with the knife.

Capacity and use cases

This size is a workhorse for:
- Taping standard seams and butt joints
- Corner work with inside/outside tools while keeping separate mixes
- Skim coating patches and small rooms

If you’re production-coating large surfaces daily, a 14" pan or a hawk and trowel might be more efficient. But for the broad middle—remodelers, punch-list pros, and serious DIYers—the 12" strikes a versatile balance.

Comparisons and tradeoffs

• Versus plastic pans: Lighter yet, quieter, and less expensive, but plastic edges wear and deform, and rubber wipers eventually peel. The DeWalt’s sheared stainless edges stay true.
• Versus heavier-gauge stainless: More rigid and bombproof, but heavier and pricier. If you routinely toss your pan into the truck with demo debris, you may prefer a thicker gauge. If you value a lighter carry with excellent edge performance, this DeWalt fits nicely.

What I’d change

• Offer an optional rolled-lip variant. The crisp edge is great for wiping but can be unfriendly to bare hands on long days.
• Add a subtle exterior texture band along the grip zone. The curved bottom helps, but a tactile strip would make it even surer in dust.

Specs that matter

• 12" length, 4" width, 5" depth: practical capacity without bulk
• 21‑gauge polished stainless: light, corrosion-resistant, easy to clean
• Heli‑arc welded end caps, sealed inside corners: watertight, low buildup
• Weight: 1.1 lb empty
• 90‑day return window provides a bit of safety if you’re on the fence

Pros and cons

Pros
- Straight, true sheared edges deliver consistently clean knife wipes
- Curved bottom improves grip, mixing, and cleanout
- Sealed corners and heli‑arc welds minimize buildup and leaks
- Light for its size, reducing fatigue over a full day
- Stainless construction resists rust and cleans quickly

Cons
- 21‑gauge has a touch of flex; heavy-gauge fans may want stiffer
- Crisp rim can be harsh on bare hands until you break it in
- Polished exterior can be slick with dusty gloves

Final take

I keep the DeWalt mud pan in rotation because it handles the fundamentals exceptionally well: it loads knives cleanly, carries comfortably, and rinses out fast without hiding crud in the corners. The mid‑weight 21‑gauge body is a smart compromise for most users—light enough to carry all day, sturdy enough to hold shape under load. If you prefer a rock‑solid, heavier pan, you may want to step up a gauge. For everyone else, this is a reliable, thoughtfully built pan that streamlines day‑to‑day drywall work.

Recommendation: I recommend it for pros and serious DIYers who value clean scraping, easy maintenance, and a comfortable grip in a 12" format. It’s not the heaviest stainless option on the market, but its balance of weight, weld quality, and edge performance makes it a strong, practical choice for most taping and patching tasks.
