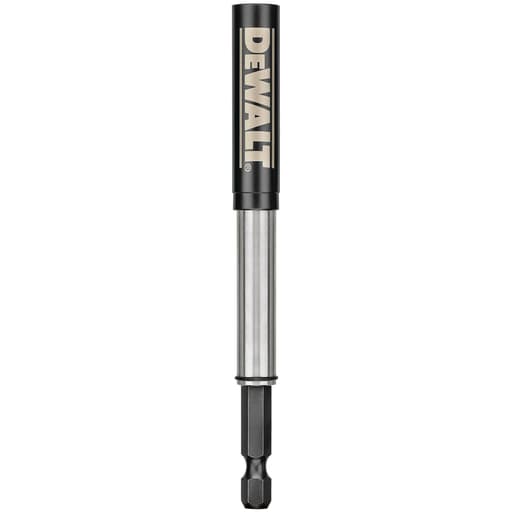

DeWalt Impact Drive Guide With Two 1 in. PH2 Bits

Why I reached for this drive guide

Sometimes the smallest accessory changes your day more than a new tool does. That’s been my experience with DeWalt’s impact-rated drive guide. It’s a simple 3-inch magnetic bit holder with a steel sliding sleeve, bundled with two 1-inch PH2 bits, and it’s designed to make driving screws cleaner and more controlled. I put it to work across a few weeks of cabinetry, light framing, and punch-list tasks to see if the sleeve and magnet were more than a gimmick.

Setup and compatibility

The 1/4-inch hex shank drops into any standard impact driver or drill. I ran it primarily in an 18V impact, but also swapped it into a compact 12V drill for hardware installs. The bit holder is magnetic (no locking collet), so bits seat with a firm push and pull out with a straight tug. That means quick swaps, though there’s no mechanical detent holding the bit. The included PH2 bits are standard 1-inch inserts with revised tip geometry; you can use any 1-inch insert bits you already own—Torx, square, Pozidriv, etc.

There’s no storage case in the package, and, notably, this specific SKU isn’t covered by a limited warranty. That’s unusual enough to deserve a mention, especially if you rely on warranty backing for high-use accessories.

The sliding sleeve in real-world use

The sleeve is the star of this design. Slide it forward and it telescopes over the screw, supporting and centering as you start the drive. In practice, this does three useful things:

• Reduces wobble and cam-out on longer screws
• Helps one-handed starts when your other hand is holding stock or bracing a cabinet
• Catches the screw if you fumble on a ladder or overhead

I noticed the biggest benefit when installing cabinet hinges and driving 2-1/2-inch construction screws into SPF studs. The sleeve kept starts cleaner and prevented those annoying screw drops that send you back down the ladder. It’s also handy for electrical strap screws in awkward angles where lining up a PH2 bit can be fussy.

One practical note: the sleeve is steel. It can scuff delicate finishes if you’re not careful. On painted cabinetry, I added a layer of painter’s tape to the sleeve, which preserved the finish without affecting function.

Magnet strength and bit retention

Magnet strength can make or break a drive guide. This one’s on the stronger side for a compact holder. It held ferrous screws confidently enough that I could tilt the tool without losing the fastener, and it kept the bit seated during impacts. As always, stainless and coated non-magnetic screws won’t benefit.

Because it’s a magnetic system rather than a locking collet, bit retention depends entirely on that internal magnet. In day-to-day use, that’s fine—just be mindful not to use the holder to pry or to twist misaligned fasteners sideways, which can stress the magnet and sleeve.

Tip: clean chips and shavings out of the holder periodically. The magnet will collect debris over time, which can compromise bit seating.

Bit performance

The included 1-inch PH2 bits are better than throw-ins typically are. The revised tip geometry feels subtly crisper on screw heads and resisted cam-out a little better than some generic bits in my kit. On a small run of deck boards, I ran through a few boxes of #8 and #10 screws with one bit before I felt rounding set in. That’s solid for an impact-rated insert bit. If you drive a lot of Phillips fasteners, throw a couple spare PH2 inserts in your pouch, but these will get you well past a morning’s work.

As with any 1-inch insert bit, the constraint is leverage and heat. If I know I’m driving big structural screws for hours, I’ll switch to a longer shock-rated bit for a cooler, more controlled feel.

Precision and control

Where this drive guide shines is control. The combination of sleeve support and a reasonably stout magnet calms down starts in awkward positions. Overhead drives, ladder work, inside cabinets—anywhere you can’t easily square up the driver—benefit the most. The sleeve lets you choke up, steady the screw, and then drive without fishing around.

I also like the 3-inch length. It gives a bit of reach past a chunky impact driver housing without becoming a flexy, whippy extension. In very tight pockets, the extra length can be a liability, but for general carpentry and finish hardware it felt about right.

Durability and failure modes

A few durability notes from my time with it:

• The sleeve should slide freely and return smoothly. Keep it clear of grit and avoid using it as a chuck to twist a stuck fastener—side-loading the sleeve can loosen components over time.
• On one long day setting structural screws into PT lumber, the front cap on my first sample began to loosen and the sleeve action felt gritty. I swapped to a second sample and finished the job without issue. I suspect debris and heavy side-loading contributed to the first problem.

This is a tough little accessory, but it’s still a precision sleeve and magnet, not a crowbar. Treat it as a guide, not a lever, and it holds up well. The absence of a warranty is worth factoring in if you’re particularly hard on holders.

Ergonomics and workflow

No learning curve here. Slide the sleeve forward to capture the screw, start the drive, and the sleeve retracts as the screw sinks. Bit changes are quick and genuinely one-handed. For repetitive work—think face-frame screws or cabinet hardware—the pace bump is real because you spend less time retrieving dropped screws or correcting wobbly starts.

A couple of small workflow tips:
- Keep a PH2, a T25 Torx, and a square bit in your pocket or on a bit band. Swapping bits in this holder is fast enough that you’ll actually do it.
- Tape the sleeve for finished surfaces. It’s cheap insurance.

What it won’t do

It’s not a locking bit holder, so if you must have a mechanical detent holding the insert, look at a quick-change style. It’s also not a substitute for a nutsetter on hex-head fasteners. And no, the magnet won’t make stainless screws stick.

Finally, because this item has no limited warranty, if you expect the manufacturer to backstop heavy abuse, this isn’t the model for you.

Value

Pricing fluctuates, but as a three-piece set—holder plus two usable PH2 inserts—the value is solid. The performance bump from the sleeve alone justifies carrying it. If you’ve been using basic magnetic holders, you’ll notice fewer drops and cleaner starts with this design.

If you’re on a budget and don’t need the sleeve, a basic locking bit holder can be cheaper. But for everyday carpentry, punch lists, and finish installs, the drive guide earns its keep.

Who will appreciate it most

• Carpenters and remodelers doing overhead or one-handed starts
• Cabinet installers and trim carpenters who want cleaner, mar-free drives
• DIYers upgrading from a basic magnetic holder for better control

Pros:
- Excellent sleeve support reduces wobble and drops
- Strong magnet for reliable bit and screw retention
- Impact-rated, fits any 1/4-inch hex driver
- Included PH2 bits are better than average

Cons:
- No locking collet; magnet is the only bit retention
- Sleeve can scuff finishes if unprotected
- No limited warranty on this product
- Occasional sleeve/magnet wear if heavily side-loaded

Recommendation

I recommend the DeWalt drive guide for anyone who drives a lot of Phillips screws and wants cleaner starts, fewer drops, and better control—especially in overhead and awkward positions. The sliding sleeve and stout magnet make a meaningful difference in daily work, and the included bits are genuinely usable. If you need a locking-style holder or rely on warranty coverage for hard-use accessories, consider a different model. For most users, though, this drive guide earns a spot in the pouch and will quickly become the holder you reach for first.
