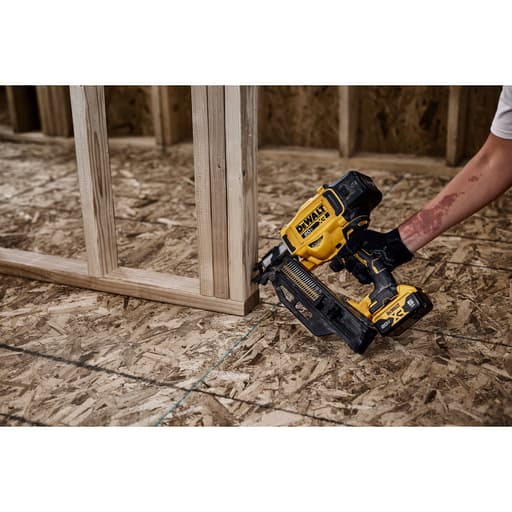

DeWalt 20V MAX XR Brushless Cordless 21° Plastic Collated Framing Nailer

Why I reached for this cordless framer

On a recent mix of wall framing and deck repair, I left the compressor in the shop and carried DeWalt’s 21° cordless framer instead. The promise was straightforward: full-round-head, plastic-collated nails without a hose, a brushless motor, and an “always-ready” flywheel to keep the shots coming. After several weeks with the DCN920 across studs, PT framing, and subfloor, here’s how it shook out.

Design and build

The DCN920 is a 21° plastic-collated framing nailer that takes 2"–3.5" full round head nails in 0.113"–0.148" shank diameters. Tool-only weight is 8.65 lb; add a 5Ah pack and you’re hovering near 10 lb. That’s on the heavy side compared to a pneumatic framer, and you feel it most overhead and at arm’s length. The upside is zero hose drag and much better mobility on ladders and roofs.

DeWalt uses a brushless motor and an active flywheel that stays spun up for a few seconds after each shot. Practically, that means a slight delay for the first nail after sitting, then quick follow-ups until it times out and spools down again. Noise-wise, there’s a distinct flywheel whine and a solid mechanical thump, but it’s less fatiguing than compressor cycling.

The magnesium magazine feels stout, with a positive pusher and good strip alignment. The front end is where the nailer shines: an aggressive nose that bites cleanly for toe-nailing, a sensible depth-adjust dial that holds its setting, and a no-mar pad when you’re working finished faces. The rafter/belt hook is large enough to trust on joists and ladders. You also get a hex wrench on board for service, and the tool is field-serviceable for springs and driver blade—handy for folks who actually maintain their nailers instead of waiting for a shop slot. It’s also chip-ready for DeWalt’s TOOL CONNECT if you track inventory.

One note on compatibility: this is strictly for 21° plastic-collated strips. Paper or wire-collated won’t fly. If you’re switching from a 30° paper-collated setup, budget for the right nails.

There’s an optional extended magazine (DZN920) that holds two strips. If you do a lot of sheathing, it’s worth considering—the standard magazine capacity means you’re reloading more often than with a big-stick pneumatic.

Power and driving performance

I ran common 0.131" x 3-1/4" nails into SPF studs and PT 2x without issue, typically setting heads slightly below flush with the depth dial around mid-range. Into denser stock—think LVL or knotted PT—stepping up to 0.148" x 3-1/2" pushes the limits. On a fresh 5Ah battery and a firm nose plant, the DCN920 will still set most nails, but you’ll occasionally see one sit proud by a millimeter. A quick bump or a second shot fixes it, but it’s a reminder: cordless framers, this one included, aren’t a substitute for clamps when you’re trying to pull gaps tight. It will “draw” a bit, but don’t expect it to suck twisted studs into submission the way a high-flow pneumatic sometimes can.

Toe-nailing performance is strong. The nose profile gives you a positive bite, the line of sight is decent for a bulky tool, and recoil is controlled enough to keep your second shot where you want it. I preferred sequential mode for accuracy in framing and bump mode for subfloor. In bump fire, once the flywheel is hot, there’s effectively no ramp—tap-tap-tap across a sheet feels almost pneumatic.

Speed and workflow

The flywheel behavior matters in real use. On a wall layout, you feel the first-shot latency only after you pause long enough for the wheel to coast down. Keep up a rhythm and the DCN920 keeps pace surprisingly well. It’s not matching a high-end pneumatic on pure cycle rate, but for remodel-scale work—removing hose management from the equation—it evens out.

Battery swaps are part of the cordless equation. With a 5Ah pack, I could frame a couple of 10-foot walls and stick a few sheets of OSB before reaching for a fresh battery. That roughly aligns with DeWalt’s productivity claims for subfloor and wall framing. A 10Ah pack stretches runtime, but the weight penalty is real; I landed on 5Ah as the best balance.

Jams, double-feeds, and nail choice

Here’s the part everyone asks about: jams. I had some, and they weren’t random. Two factors drove almost every hiccup:

• Nail quality and collation: Cheaper plastic-collated strips leave thicker shards that can accumulate in the track. Those chips cause intermittent misfeeds and the occasional double or light set.
• Technique and material: Rushing through knots or not firmly planting the nose increases the chance of a misfeed.

With decent nails—clean, straight strips with consistent plastic—I could go long stretches with zero issues. Switching to bargain-bin nails immediately increased stoppages. The LED will flash on a jam, and clearing it usually meant backing out two screws at the nose with the included hex wrench, popping the stuck fastener, and getting back to work. It’s not tool-free clearance, which is a drawback compared to some competitors. I also twice had the tool throw a fault blink that reset with a battery reseat—annoying, but not day-ending.

Practical tip: make cleaning the magazine and nose part of your routine. Quick blasts to clear plastic chips dramatically reduce problems. If you fasten a lot in PT and through knots, keep your depth-of-drive a touch shallower and let technique, not brute force, carry the shot.

Ergonomics and balance

At just under 10 lb with a 5Ah, the DCN920 is manageable on the deck and fine at waist height. Above-shoulder work accumulates fatigue quickly. The handle shape and overmold are comfortable, and recoil is tame for the class, but weight is weight. The rafter hook is strong and saves you when you’re climbing or staging. The included belt clip is there, though I trust the rafter hook more and often run a lanyard on roofs.

The body is compact for a 21° cordless, and the 21° angle does help get into tighter corners compared to steeper-angle nailers. Still, it’s a big head; plan your approach rather than trying to snake it into a boxed-in cavity.

Maintenance and service

A cordless framer lives or dies by upkeep. The DCN920 rewards basic care: keep the magazine clear of plastic debris, check the driver tip for wear, and don’t ignore a creeping increase in light sets—swap springs or the driver blade as needed. I appreciate that DeWalt designed this one to be field-serviceable; you can get it back on the job without shipping it off. The 3-year limited warranty, 1-year free service, and 90-day satisfaction window are also reassuring.

What it’s best at

• Remodel and repair work where dragging a hose is a pain: additions, decks, punch lists, roof patching.
• Small to medium framing runs where mobility trumps outright speed.
• Job sites with limited power or noise restrictions.

Where it falls short

• All-day production framing: the weight and jam-clear procedure slow you down compared to a lightweight pneumatic with tool-free access.
• Overhead work: balance is fine but fatigue sets in; you’ll feel it in your shoulders.
• Mixed nail ecosystems: if your crew runs mostly paper-collated 30° strips, this won’t slot in without changing inventory.

The bottom line

The DCN920 nails the hose-free promise with respectable power, a smart nose design for toe-nailing, and a flywheel system that keeps pace once you’re in rhythm. It’s heavier than a pneumatic and jam clearing requires a hex wrench, so it’s not my first pick for high-volume production. That said, with quality 21° plastic-collated nails and a little housekeeping to keep plastic chips out of the track, it fires reliably and saves real time on setups, ladders, and short runs.

Recommendation: I recommend this nailer for remodelers, service carpenters, and small crews who value mobility and the convenience of the 20V MAX ecosystem. It delivers solid driving performance on standard framing tasks, smart ergonomics at the nose, and practical serviceability. If your day is nothing but stick framing or high-speed sheathing, a pneumatic or a cordless with faster, tool-free jam clearance may be a better fit. For everyone else who wants to leave the hose behind without giving up full-round-head capacity, the DCN920 is a capable, job-ready choice—just pair it with good nails and keep the magazine clean.
