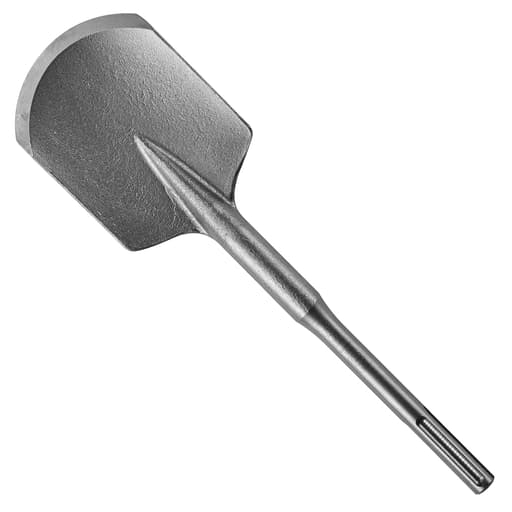

Bosch 4-1/2 in x 17 in Clay Spade SDS-max Hammer Steel

Why I reached for this clay spade

Digging through baked clay with a hand shovel is a morale test I try not to repeat. On a recent irrigation run across a yard of hardpan, I put away the mattock and slipped a clay spade onto my SDS‑max rotary hammer. The change was immediate: instead of prying inch by inch, the hammer did the work and I focused on guiding and clearing spoils. This Bosch clay spade has since become my go-to for trenching and excavation in tough soils where a standard chisel feels too narrow and a full shovel is too slow.

Setup and compatibility

This accessory uses an SDS‑max shank, so it drops into any SDS‑max rotary hammer without adapters. It seated firmly in my hammer with no slop in the shank, and the retention grooves engaged cleanly. That secure fit matters; with a broad blade like this, you don’t want rotational play telegraphing through the tool.

At 17 inches long, it strikes a good balance between reach and control. It’s not a deep-trenching setup—you’ll still be kneeling or crouched for some runs—but it’s long enough to keep your hands clear of the spoil zone while you guide the blade. The 4.5-inch cutting edge is wide for a chisel, and that’s the point: it moves material, not just fractures it.

In the dirt: how it performs

In compacted clay and hardpan, the spade shines. With the hammer in chisel-only mode and the blade set at a shallow angle, the edge slides under the surface crust and shears off slabs of material. The broad face distributes impact well, so you’re not punching narrow holes; you’re shaving and lifting. For trenching in cohesive soils (sprinkler lines, shallow conduit), that translates to faster progress and straighter sides.

Technique matters. I get the best results at a low to medium hammer speed, keeping the tool around 20–30 degrees to the surface. Short bursts prevent the blade from digging itself in or “surfing” upward. In heavy clay, any broad spade can ride up as it compacts the surface; feathering the trigger and sweeping the blade laterally between pulses helps the edge bite and keep the trench floor flat.

In mixed dirt with gravel or occasional cobbles, it still works but you’ll feel the deflections. The edge will skip off rocks, and you’ll end up switching back and forth between chiseling around obstructions and spading away the fines. In pure rock or heavily reinforced soils, this isn’t the right tool—use a pointed chisel first, then return to the spade to move the loosened material.

Edge, steel, and wear

Out of the box, the edge is not razor-sharp—and it doesn’t need to be. It has a forged bevel that’s robust enough to take hammer blows without folding. That said, I put a quick, conservative dressing on the bevel with a flap disc before the first job, and it improved the initial bite noticeably. After a week of trenching and a couple of sod-removal tasks, the edge had rounded slightly but didn’t mushroom or chip. A few passes with a file brought it back.

The hammer steel construction is clearly hard enough to resist deformation yet not so brittle that it chips when you catch aggregate. The shank shows normal burnishing from the chuck pins, with no galling. As with any SDS‑max accessory, a light film of tool oil on the shank helps with insertion and reduces wear.

Control and ergonomics

A clay spade pushes back more than a pointed chisel because you’re moving a wider cross-section of material. With a midweight SDS‑max hammer, the combo feels planted. The 17-inch length keeps the blade close to the hammer, which helps balance and reduces torque when the edge snags a root. The tradeoff is leverage: you’re not prying with a long bar; you’re letting the hammer do the work. Resist the urge to twist the spade aggressively—use sweeping motions and let the mass of the hammer carry the cut.

Because the blade is wide, it’s also a good scraper. Cleaning trench bottoms, removing crusted decomposed granite, and lifting sod are all realistic tasks. I was surprised at how well it cut through fibrous turf; a slightly steeper angle and short pulses make clean slices you can roll back in sections.

Where it excels

• Trenching for irrigation and conduit in clay and hard-packed soils
• Removing sod and turf without fighting a spade by hand
• Shaving high spots and flattening trench bottoms
• Breaking up compacted DG or caliche-like crusts
• Clearing frost-heaved soil and light roots in landscaping

If you’re moving a lot of material but don’t want the mess (or the expense) of a dedicated mini trencher, this accessory bridges the gap for short runs and touch-ups.

Boundaries and limitations

No single accessory does everything, and this one is honest about its niche.

• Depth: At 17 inches, you’re working shallow to medium-depth trenches. For deep footing work, it’s a step in a process, not the whole solution.
• Width: The 4.5-inch blade is efficient for material removal, but if you need a narrow slit trench, a trenching chisel or narrower spade is better.
• Material: It’s designed for soils. It will scrape dried mortar or asphalt crusts in a pinch, but it’s not a concrete breaker or asphalt cutter.
• Platform: SDS‑max only. If you’re running SDS‑plus, this isn’t compatible and an adapter won’t fix the power deficit.

These limitations aren’t defects; they’re inherent to what a clay spade is designed to do. Knowing where it fits keeps expectations realistic.

Tips for best results

• Use chisel-only mode with a shallow blade angle; sweep laterally between pulses.
• Dress the bevel lightly before first use and touch up as needed—don’t over-sharpen.
• Clear spoils frequently to keep the blade engaged; don’t force it to plow.
• Lube the shank, especially in dusty conditions, to minimize chuck wear.
• Let the hammer work. If you’re muscling the tool, adjust angle or speed.

Durability and maintenance

The accessory has held up well in hard use. The blade hasn’t warped, and the welds/forging lines are uniform. After multiple sessions, I’ve only had to refresh the edge lightly. As with any ground-contact steel, a quick wipe-down after use prevents rust bloom, and storing it with a thin coat of oil keeps the edge from flashing.

Because the blade is a single piece, there’s no replaceable cutting insert to track—maintenance is about edge care and sensible technique, nothing more.

Value

For an SDS‑max accessory, this clay spade delivers consistent, predictable performance in the tasks it’s built for. The single-piece pack keeps things simple. If you frequently fight hard or cohesive soils and already own an SDS‑max hammer, the time and labor savings make it an easy case to justify. If your soils are loamy and you trench rarely, you may not see the same return—but when conditions get ugly, this tool moves the needle.

Recommendation

I recommend this Bosch clay spade for anyone running an SDS‑max rotary hammer who needs to move tough, cohesive soils efficiently. The 4.5-inch cutting edge and 17-inch length hit a sweet spot for trenching, sod removal, and general excavation in clay and hardpan. It fits the chuck securely, holds an edge well with minimal maintenance, and rewards good technique with fast, clean results. It’s not a deep-trenching or rock-busting solution, and it won’t replace a narrow trenching chisel in tight runs, but within its lane it’s a reliable, productive accessory that takes the sting out of hard ground.
