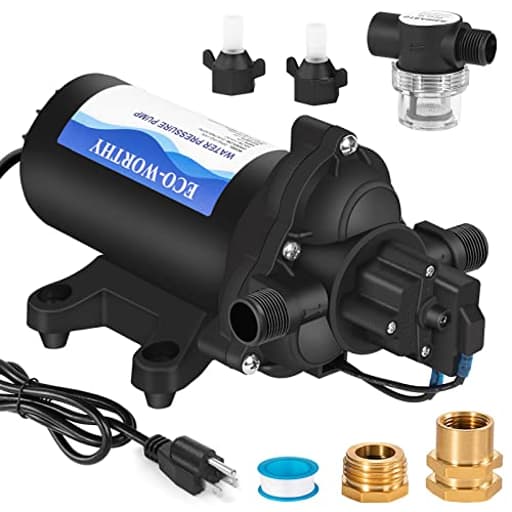

ECO-WORTHY 33-Series Industrial Water Pressure Pump 110V AC 4.0GPM 50PSI RV Fresh Water Diaphragm Pump include Garden Hose Adapters for Irrigation Marine Boat Sprinkler Faucet

Why I chose this pump and where it fits

I picked up the ECO-WORTHY 33-Series pump to solve two problems: boost pressure from a pair of rain barrels for drip and hose-end watering, and act as a portable source of steady flow for flushing and cleaning jobs around the property. I wanted AC power so I wasn’t tied to a battery, enough pressure to run a hose nozzle without sputter, and simple on-demand operation so I didn’t have to walk back to a switch every time I opened or closed a sprayer. After several weeks of use in a few different setups—rain collection, garden hose work, and a quick RV test—the 33-Series pump has proven to be a capable, quiet, and surprisingly versatile tool with a few quirks worth understanding.

Setup and installation

Out of the box, the pump includes garden hose adapters, which saves a run to the hardware store. The ports on the pump body are plastic, so I used PTFE tape and a light touch to avoid cross-threading or over-tightening. The adapters are brass, the pump threads are plastic—mixing those materials demands patience. Hand-tight plus a quarter turn with a wrench was plenty; no leaks.

I mounted the pump on a scrap of plywood with rubber isolators to cut down on vibration and set it close to the water source. It’s self-priming to 9.8 feet, but keeping the suction run short makes priming faster and reduces the chances of air leaks. I highly recommend adding a strainer or inline filter on the inlet, especially if you pull from barrels or tanks—anything that keeps grit out of a diaphragm pump pays off.

Because it’s an AC unit, I plugged it into a GFCI-protected outlet and gave it a weather cover when used outdoors. It’s not meant to live unprotected in the rain or snow. If you’re installing in an RV bay or a shed, ventilation and splash protection are all it really needs.

Performance in the real world

Rated at 4.0 GPM with a 50 PSI pressure switch (adjustable 45–70 PSI), the 33-Series pump hit the sweet spot for hose-end work. With a 50-gallon barrel feeding it and a 100-foot garden hose attached, I got a strong, consistent stream that handled a multi-pattern spray nozzle without annoying pulsing. Priming from a gravity-fed barrel took a moment on the first run; after that, it fired right up on demand.

For drip irrigation, the pressure was actually more than I needed. I added a pressure-reducing valve downstream to bring the pressure down to typical drip specs (around 20–30 PSI) and avoid blowing out fittings. Once that was in place, the system ran flawlessly.

On the RV side, I used it as a booster to simulate city water pressure and to flush an on-demand water heater through a service loop. The pump held a steady head of pressure and ran continuously for about 30 minutes without drama. The housing got warm to the touch but never hot. The built-in thermal overload protection is good insurance, but I didn’t trigger it.

In terms of capability, this is a great booster for one or two concurrent fixtures, a hose, or a modest set of emitters. If you’re trying to lift water long distances vertically or feed multiple high-flow pop-up sprinklers simultaneously, the pump’s 4 GPM limit will show. It’s strong on pressure, reasonable on flow; that combination suits point-of-use and small-zone tasks better than yard-wide irrigation with several heads at once.

Pressure switch and adjustment

The on-demand pressure switch is well tuned out of the box. With my hose nozzle closed, the pump shuts off crisply. Open the nozzle and it comes to life immediately. One tip: don’t rush to tweak the pressure screw. Connect your plumbing first and see how it behaves. If you adjust the setpoint too high, you can introduce rapid cycling or chase leaks that suddenly show up in old fittings.

When I did experiment with the pressure range, I found 50 PSI to be the best compromise between flow, noise, and wear on the system. Dialing closer to 70 PSI gives you a snappier spray but raises the stakes for every connection in the chain. If you need more smoothness at any pressure, an accumulator tank upstream of your outlets helps prevent short-cycling as you feather a sprayer.

It’s worth noting how the shutoff logic works: the pump stops when it senses backpressure downstream—closing the faucet, nozzle, or valve. Low pressure at the source won’t turn it off. If your intake is a soft-walled hose or a long run that collapses, you may see odd behavior; keep the suction line firm and airtight.

Noise, build, and usability

Compared to many diaphragm pumps I’ve used, the 33-Series is quiet—more of a muted hum than a buzz. Mounted on rubber, I can easily talk over it, and it’s hardly noticeable once water is flowing. Vibration is minimal if your lines are supported and you use flexible hoses on both inlet and outlet to decouple it from rigid plumbing.

The pump’s body and head are typical for this class—durable plastics with metal fasteners, and side-facing ports. I would have preferred both ports in line on one side for cleaner routing, but the included adapters gave me enough flexibility to make tidy runs. The overall footprint is compact and easy to stash in a tote with a short hose, strainer, and power cord.

Current draw is light for an AC pump, so it won’t stress a standard 15A circuit. That also makes it a good fit for portable power stations or inverters if you need to run off-grid occasionally.

Limitations and gotchas

• It’s not a substitute for a high-flow irrigation pump. Expect to power a hose, a single sprinkler, or a small drip zone—not a whole lawn of pop-ups at once.
• The plastic port threads can be damaged if you force brass fittings. Take your time, tape the threads, and avoid over-torque.
• While it’s self-priming, it’s still wise to avoid extended dry runs. Short, incidental dry operation didn’t harm mine, but I treat that as an emergency tolerance, not a feature to rely on.
• It’s an indoor/outdoor tool with conditions: protect it from direct weather, especially freezing. If you leave it where temperatures drop below freezing, drain and cover it. Water left inside any pump will expand and can damage seals or invite moisture into the motor, which in turn can trip GFCI protection.

Maintenance and care

My routine after each use from a barrel is simple: flush a minute with clean water if the source is questionable, check the strainer, and crack fittings just enough to drain if I plan to store it. Before winter, I fully drain the pump and hoses, and I bag the unit to keep dust and moisture out. If you’re using it frequently, keep an eye on mounting screws and hose clamps, and re-tape any fittings that show weeping.

If you ever notice rapid cycling, that’s usually a sign of one of three things: a small leak downstream, air on the suction side, or an overly aggressive pressure setpoint. Work through those in that order.

Use cases that suit it best

• Rain barrels to hose or drip zones, especially where city pressure is absent or too low
• RV booster duty for shower and toilet use, or appliance flushing
• Small marine and boat freshwater systems where AC power is available dockside
• Portable cleaning and rinsing with a spray nozzle from a tote or tank

In all of those, the on-demand behavior makes everyday use simple: open a tap, water flows; close it, the pump goes quiet.

The bottom line

The 33-Series pump hits a practical balance: easy to install, quiet in operation, and strong enough to make hose-end tasks feel like they’re on city water—all without relying on a battery. The adjustable pressure switch, self-priming capability, and thermal protection make it forgiving in the field, while the included hose adapters lower the barrier to getting started.

It’s not perfect. The side-port layout limits routing options, the plastic threads demand care, and it’s not the right tool for large multi-head sprinkler systems. But used for what it’s designed to do—point-of-use boosting, small-zone irrigation, and portable water tasks—it performs reliably and with minimal fuss.

Recommendation: I recommend the ECO-WORTHY 33-Series pump for anyone who needs an AC-powered, on-demand booster for rain barrels, RV/marine freshwater, or small-scale irrigation. It’s quiet, efficient, and straightforward to live with, provided you give it basic protection from the elements and respect its flow limits. If your plan is to drive several pop-up sprinklers across a big yard, look for a higher-flow centrifugal pump instead. For everything else on the light-to-medium duty list, this one’s a smart, hassle-free choice.
