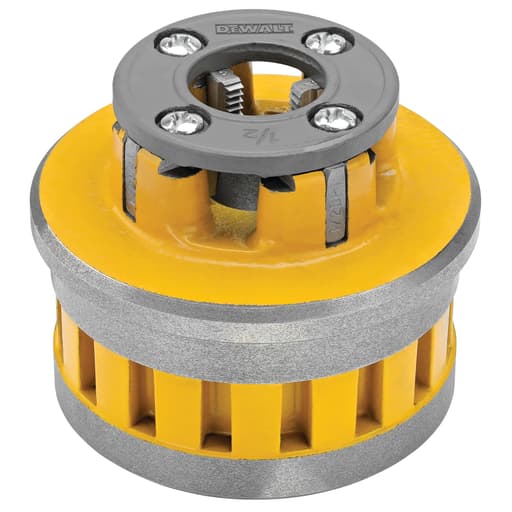

DeWalt Pipe Threading Die Head

Why this die head earned a spot in my threading kit

Pipe threading tasks reward simple, reliable tools. After a month of jobsite work with DeWalt’s die head in the 1/2-inch size, I came away appreciating how little fuss it adds to a process that’s already unforgiving. It fits the two power drives I reach for most—the RIDGID 700 and DeWalt’s FLEXVOLT 60V MAX pipe threader—cuts clean right‑hand NPT threads, and holds up to steady use on black steel and galvanized pipe when paired with proper cutting oil. There’s nothing flashy here, and that’s exactly the point.

Build and compatibility

The body is cast iron, which is what I want in a die head: rigid, stable, and serviceable. Four high‑speed steel dies (chasers) come installed from the factory, so there’s no initial setup beyond giving the screws a quick check for tightness. The die head I tested is the 1/2-inch size, but it’s available from 1/2 to 2 inches. That range covers most plumbing, gas, and general mechanical work without moving into the heavier, multi‑segment heads required for 2‑1/2 inches and up.

Compatibility matters, and this one locks into a RIDGID 700 (12R style) and DeWalt’s cordless threader without any drama. Engagement is positive, with no play once seated. That stability shows up in the thread quality—more on that below.

Specs are straightforward: right‑hand NPT threads only. If you need BSPT or left‑hand, you’ll need a different head. For most North American piping, NPT right‑hand is the standard, so this will be the workhorse.

Weight with the dies installed is a touch over four pounds, which is light enough to position easily while still feeling substantial on the drive.

Setup and ease of use

There’s almost nothing to set up, and that’s a compliment. With the dies pre‑installed, I checked clearances, lubricated the dies, and was cutting within minutes. On the RIDGID 700, the head seats firmly with a predictable snap; on the DeWalt cordless threader, the fit is equally secure.

Starting a thread is the make‑or‑break moment. With this die head, the lead‑in is forgiving—assuming you square the pipe and use adequate oil. It doesn’t “grab” aggressively or skate; it takes a bite and establishes the lead cleanly. I had consistent starts on schedule 40 black steel and galvanized with both power drives at a conservative speed.

Chip evacuation is good. As long as I paused briefly after the first few turns to re‑oil and let the chips clear, the dies stayed free‑cutting. I didn’t see any tendency to pack chips in the throat, which can cause tearing or leave ragged thread crests on some heads.

Thread quality and consistency

Thread quality was consistently within spec for right‑hand NPT when cut to depth and backed off properly. I checked finished 1/2-inch threads with an L1 ring gauge and test‑fit unions and couplings from multiple manufacturers. Engagement was smooth, and hand‑tight plus wrench‑tight landing points were where I expect them to be. Profiles looked clean with intact crests and well‑formed flanks.

A few notes from my passes:
- On black steel, the finish was excellent with a sulfurized cutting oil. The dies cut without chatter, even when the power drive encountered minor misalignment from a less‑than‑perfectly supported pipe.
- On galvanized, a little more oil helps. The die head maintained a clean finish without smearing the coating excessively.
- With aggressive feed and inadequate oil, I could induce slight tearing at the crest. That’s operator error more than a shortcoming of the tool. Backing off to break chips and re‑oiling solved it immediately.

This die head doesn’t magically fix improper prep. If your pipe is out‑of‑square or you skip reaming, you’ll see it in the start and the finish. With good prep, it delivers the dependable, repeatable NPT form you want.

Durability and maintenance

High‑speed steel chasers remain the standard for a reason: they balance toughness, edge retention, and cost. After routine use on mild steel and galvanized, the cutting edges are holding up as expected. I didn’t cut stainless with this set—HSS will work in a pinch but wears fast there—so if you spend your days on stainless, consider dedicated alloy chasers and adjust your expectations.

The cast iron body has shrugged off normal knocks and bench clamping without deforming. Screws haven’t loosened mid‑use, but I still check them at the start of each day. Maintenance is basic:
- Flush chips with solvent or oil after use.
- Wipe down and oil the dies and body to prevent corrosion.
- Inspect cutting edges for chipping or dulling.
- Store dry, with a light oil film on the dies.

Replacing the chasers is straightforward if you eventually wear them out. The fact that everything is standard, serviceable, and not reliant on proprietary gimmicks makes long‑term ownership easier.

Ergonomics and workflow

When you’re threading a dozen joints in a cramped space, how a die head feeds and releases matters. This head’s balance and compactness pair well with the RIDGID 700 and DeWalt cordless drive. I could keep the assembly square to the pipe with minimal effort, which reduces cross‑thread starts and saves wrists and shoulders.

The die head also encourages good habits. Because starts are predictable, it’s easy to standardize your process: oil, start, two to three turns, re‑oil, finish to depth, back off, brush, and gauge. That rhythm is where consistency comes from.

Limitations

• Right‑hand NPT only. If your work includes BSPT or left‑hand threads, you’ll need other heads.
• Not a cure‑all for stainless. HSS chasers aren’t ideal for frequent stainless threading.
• Size range tops out at 2 inches. For larger sizes, you’ll use different tooling.

None of these are surprises; they’re simply the boundaries of the tool’s intended use.

Comparison with common alternatives

If you’ve used RIDGID 12R‑style die heads, this DeWalt unit will feel familiar in all the good ways. In use, I didn’t notice any meaningful difference in start behavior, finish, or chip flow when both were equipped with comparable HSS chasers. What stands out is the plug‑and‑play compatibility across the RIDGID 700 and DeWalt’s FLEXVOLT threader. For crews mixing corded and cordless drives, that cross‑compatibility keeps inventory simple.

Practical tips for best results

• Prep the pipe: square cut, proper ream, and a light chamfer to help the dies start.
• Use a quality cutting oil generously; re‑apply after the first few turns and as needed.
• Let the drive do the work. Maintain alignment and moderate feed pressure.
• Break chips by easing off briefly if you feel the cut tighten.
• Clean and oil the dies after each session; inspect for dulling before the next job.
• Gauge critical threads with an L1 ring gauge and spot‑check with fittings from your stock.

Who it’s for

• Plumbers, mechanical contractors, and facility techs threading 1/2 to 2 inches on mild steel and galvanized.
• Crews running a mix of RIDGID 700s and DeWalt cordless threaders who want interoperable die heads.
• Shops that prioritize serviceable, standard tooling over niche, proprietary systems.

The bottom line

The DeWalt die head does exactly what I need a threading head to do: seat securely, start predictably, cut clean NPT threads, and stand up to everyday use. The cast iron body has the right heft and stability, the HSS chasers arrive ready to work, and compatibility with both RIDGID 700 and DeWalt’s 60V MAX threader keeps it versatile across common setups.

Recommendation: I recommend this die head for anyone threading 1/2 to 2 inches in NPT on black steel and galvanized, especially if you’re already running a RIDGID 700 or DeWalt cordless power drive. It’s dependable, easy to maintain, and produces consistent, gauge‑worthy threads without adding complexity to your workflow. If you regularly thread stainless or need left‑hand or BSPT threads, plan on different dies or additional heads—but for standard right‑hand NPT work, this one earns its keep.
