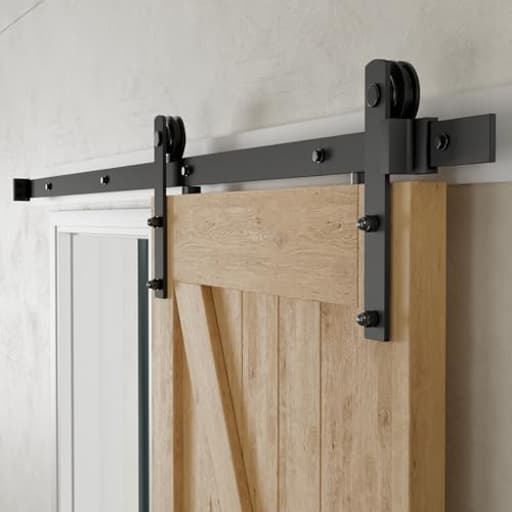

CCJH 6 Feet Heavy Duty Sturdy Sliding Barn Door Hardware Kit -Smoothly and Quietly -Easy to Install Fit 36" Wide Door Panel

Why I picked this kit

I needed a clean, sturdy way to hang a single interior barn door across a hallway opening without eating up floor space. The CCJH 6‑ft barn door hardware kit checked the right boxes on paper: heavy-duty rating (up to 330 lb), quiet nylon wheels, an I‑style hanger that looks at home in both rustic and modern spaces, and a track length suited for a standard 36‑inch door. After installing and living with it, I’m impressed by how solid it feels and how quietly it runs, with a few notes worth knowing before you start.

What’s in the box and first impressions

The kit is complete for a single door and arrives well protected. Inside you’ll find:
- A spliced 6‑ft steel track (in multiple sections with joiners)
- Two I‑style roller hangers with nylon wheels
- Rail spacers and fasteners
- Two end stops with spring dampers
- Anti‑jump disks
- A floor guide

The finish is an even matte black, and the steel pieces feel substantial. The rollers spin smoothly with no wobble, and the nylon treads are quiet against the track. The soft‑damping end stops aren’t a full “soft‑close” catch-and-draw system; they’re cushioned stops that absorb impact at each end of travel. That distinction matters if you’re expecting the last‑inch auto‑latch you see on cabinet hardware—this setup doesn’t do that, but it does prevent clangy, abrupt endpoints.

Planning and layout

If you’re new to barn doors, a little planning pays off:
- Door thickness: The kit fits 1‑3/16" to 1‑7/8" doors. I hung a 1‑1/2" solid slab, and the fit was spot on.
- Overhead clearance: You need at least 7" above the door for the hangers and track.
- Door width: A 6‑ft track is right for a door up to 36". If your opening is wide or you want more overlap, choose a longer track.
- Wall clearance: With the supplied spacers and a 1‑1/2" door, I measured roughly 0.7" from the wall to the back of the door. That’s enough to clear flat casing, but proud trim or thick baseboards may need a header board to stand the track off the wall.
- Floor guide: The included guide keeps the door from swinging. I routed a shallow groove on the underside of the door to pair with it. If you’d rather not route, there are surface‑mount guides on the market that work with square edges.

Installation experience

The install went smoothly overall, but there are a few practical notes.

• Track alignment: The spliced track sections are easy to manage solo, but aligning multiple joints perfectly level is trickier than a one‑piece bar. I recommend two people for marking and mounting, and a long spirit level or laser line. Dry‑fit the track sections on the floor first to understand how the joiners and bolt spacing land relative to studs.

• Fastening into structure: As with any sliding door, nothing matters more than anchoring the track to structure. If stud spacing doesn’t cooperate with the track holes, install a solid header board lagged into at least three studs, then mount the track to the header. That also buys you extra standoff if your trim is chunky.

• Metric vs. imperial: The hardware measurements and callouts are metric. For door hanger bolt holes, the kit references sizes like 4 mm and 15 mm. In practice, 5/32" works for the small pilot holes; the larger hole is close to 19/32". If you don’t have that bit, a good workaround is a step bit or a 5/8" hole paired with a snug washer—just keep everything square and consistent across both hangers.

• Hanger placement: The I‑style hanger plates sit a few inches inboard from the door edges. Measure carefully so your lag bolts land in solid door structure (stiles or a solid core), not just a thin face veneer. I set the top hole height based on the relationship between the wheel centerline and the door top from the manual, then checked real‑world reveal by temporarily hanging the door on one roller before committing both.

• Stops, guide, anti‑jump: The anti‑jump disks are a tiny but important safety step—don’t skip them. The spring‑damped stops are adjustable; I set mine so the handle stopped just shy of the adjacent wall. The floor guide needs to be true to the door’s travel; take a minute to shim it if your floor is out of level.

With two people, a drill, a stud finder, and basic layout tools, expect a leisurely afternoon’s work. If you’re comfortable with DIY, nothing here will surprise you.

Performance and day-to-day use

Once up, the door glides quietly with almost no effort. The nylon wheels roll smoothly; I hear more of the soft whisper of the seals than any mechanical noise. Because the stops are sprung, arriving at either end feels controlled rather than abrupt. There’s no “catch and pull” soft-close—the door will sit wherever you leave it—but the cushioned ends are kinder to both door and hardware.

I purposely loaded the door with a heavy slab to get a sense of headroom. The hangers and track didn’t flex or protest. The 330 lb rating is far beyond what most interior doors weigh, but the extra capacity translates into a sense of solidity. After a few weeks of use, all fasteners remained tight, and the rollers stayed true. There’s no need for lubrication on the nylon wheels, which keeps the run clean.

Fit, clearances, and trim

A couple of practical fit notes:
- If you have tall baseboards or door casing that projects more than about half an inch, plan on a header board or alternative spacers to keep the door from rubbing.
- The track sits high; mind crown molding and smoke detectors near the header line.
- Handle clearance is easy to forget. If you’re stopping close to a perpendicular wall, check that your handle won’t hit the wall or trim before finalizing stop positions.

Style and finish

The I‑style hangers are versatile—industrial without being fussy. The finish has held up to handling and minor bumps during installation without scratching through. Visually, the multi‑piece rail blends once installed; the join lines disappear behind the rollers and spacing hardware. If you’re standing under bright side light you can spot the joints, but they’re not distracting.

What I’d improve

• Instructions: The documentation is serviceable but light on detail for North American installs. A full‑size drilling template for the hanger holes and an imperial dimension chart would make the process easier. A diagram that calls out mounting height as “door height + X inches” plus a centerline template would be a big quality‑of‑life upgrade.

• Drill bit callouts: Specifying both metric and common imperial equivalents would reduce confusion. A note about acceptable tolerance (e.g., 15 mm ±0.5 mm) would help DIYers choose the right bit.

• Soft-close clarity: The spring‑damped stops are nice, but they’re not the same as a soft‑close catch. Clearer terminology—“cushioned end stops”—would set expectations.

None of these are dealbreakers, but they’re worth knowing so you can plan accordingly.

Tips for a cleaner install

• Use a laser level to mark the track height across the full span.
• Pre‑drill and mount a painted header board if studs don’t align with track holes or you need extra standoff for trim.
• Dry‑fit the hangers to the door and hang temporarily on one roller to confirm final reveal before drilling all holes.
• Blue tape and a center punch keep holes clean and drift‑free on painted or veneered surfaces.
• Recheck fastener torque a few days after install as the hardware settles.

Who it’s for

This kit suits anyone hanging a single interior door up to 36 inches wide who wants a robust, quiet track with a clean look. It’s a strong fit for bedrooms, offices, and hallways where a swinging door would be awkward. If you need bypass doors, an extra‑wide panel, or a fully integrated soft‑close mechanism, look at a different configuration or an upgraded system.

Recommendation

I recommend the CCJH 6‑ft barn door hardware kit. It’s sturdy, quiet, and genuinely easy to live with once installed. The multi‑piece track takes a little extra care to align, and the instructions could better serve imperial users, but the underlying hardware is solid and forgiving. If you’re comfortable doing a careful layout and have a second set of hands on install day, this kit delivers a smooth, dependable slide at a fair price.
