Vent Systems 6" to 5" Inch Pipe Reducer Adapter - Duct Connector Fitting for HVAC Ventilation Heating, Cooling, ABS Plastic PVC Pipe - Inline Duct Reducer - PVC Pipe Fittings - Ducting Converter

What it is and where it fits

The Vent Systems 6-to-5 reducer is a compact, molded ABS transition that steps a 6-inch run down to 5 inches. I brought it into two real-world scenarios: tying a 6-inch galvanized trunk to a 5-inch flexible run on a downdraft hood, and mocking up a short jump from a 6-inch rigid line to a 5-inch inline fan. In both cases, its small footprint (about 2.25 inches tall) let me make the turn without reworking adjacent runs or adding extra couplers. That low profile is the big draw here—if you’re working in tight ceiling bays, behind a dryer, or inside a cabinet chase, every inch matters.

Design and build

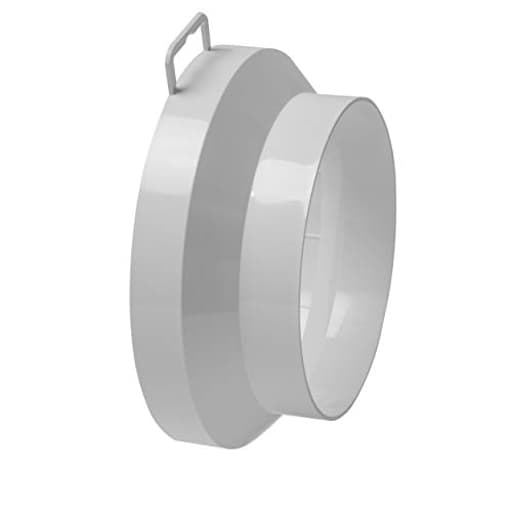

This is a single-piece, injection-molded reducer with a straight, tapered profile. The plastic is ABS, smooth inside and out, with no bead or rolled edge. My calipers read roughly 6.18 inches OD/6.06 inches ID on the 6-inch side and about 4.88 inches OD/4.76 inches ID on the 5-inch side. In practical terms, the 6-inch end acts as a female socket over most 6-inch metal duct, while the 5-inch end behaves like a male spigot that flexible hose can slip over and clamp to.

Wall thickness on my sample averaged around 1.4–1.6 mm. That keeps weight and cost down, and it also means the reducer won’t fight you during installation. The trade-off is robustness: this is not a part you crank hose clamps down on or hang duct runs from. Treat it like a plastic fitting, not a structural member.

The molding quality on my piece was clean—no flash, no warping, square cuts at the rims. Edges are un-beaded, so they’re a little sharp; deburring the mating metal duct helps avoid scraping or nicking the plastic during assembly.

Fitment and sizing

Nominal duct sizes are notoriously inconsistent across brands and materials, so I always test-fit before committing with tape or adhesive. Here’s how the reducer behaved for me:

• 6-inch side: Slid over 6-inch snap-lock galvanized duct and over a 6-inch crimped takeoff. It also seated into the female collar of a 6-inch wye. Friction fit was decent; a band clamp and foil tape made it airtight.
• 5-inch side: A 5-inch aluminum flex hose slipped over the outside easily and clamped down evenly. It also inserted into a 5-inch PVC coupling with ABS-to-PVC transition cement.

Because there’s only about an inch of insertion depth per end, you don’t get the long engagement you’d have with a beaded metal reducer. If your run sees vibration (inline fan, shop dust collection), plan to use both a clamp and foil tape, and support the adjacent duct within a foot of the fitting to take stress off the plastic.

Installation notes that helped

A few small choices made the difference between a tidy, airtight install and a fussy one:

• Deburr the metal. A quick pass with a file on the inside edge of galvanized duct prevents the ABS from catching or shaving.
• Use the right adhesive. If you’re bonding to plastic pipe, use ABS cement for ABS, and ABS-to-PVC transition cement where appropriate. Do not try to solvent-weld ABS to metal; use foil tape and mechanical clamps instead.
• Don’t over-torque. Worm-drive bands can easily crack thin plastics. Snug just enough to resist pulling off, then seal with UL 181 foil tape.
• Add a buffer. For very sharp metal collars, a single wrap of foil tape over the metal lip protects the ABS during assembly.
• Support nearby. Hangers or strapping within 12 inches of the reducer keep weight and vibration off the joint.

Performance in use

Once taped and clamped, the reducer sealed well. I smoke-tested the downdraft run at 0.4–0.5 in. w.g. and didn’t see leakage at the transitions. The smooth interior and gentle taper do their job; you will still see a static pressure increase stepping down from 6 to 5 inches, but that’s a function of diameter, not the fitting’s design. For bathroom fans, inline boosters, and short dust-collection branches, it’s a practical compromise.

Noise transmission was neutral—the ABS doesn’t ring like thin metal, and I didn’t pick up whistling or turbulence at normal flow. In the shop, a 6-to-5 step on a small tool branch didn’t clog fines during a couple of hours of planing; the interior is slick enough that chips don’t snag on seams or screw heads because there aren’t any.

Durability and limitations

ABS is tough for its weight, but thin-walled ABS has limits. Two areas to watch:

• Clamp pressure and point loads. If you tighten a hose clamp until the band dimples the rim, you’re flirting with cracks. If you need to screw through the wall to pin it to metal, pre-drill and use small, blunt-tip screws; don’t rely on screws for structural support.
• Heat and code. I would not put this part anywhere near a high-temperature flue or a wood/pellet stove pipe, and I don’t use plastic fittings in dryer exhausts in jurisdictions that require all-metal UL 2158A components. For general HVAC air, bathroom vents, inline fans, and low-temp dust collection, it’s fine.

I’ve tossed one of these in a tote with other fittings and had it arrive to the job in good shape, but I wouldn’t expect it to survive being crushed under a toolbox. Store it where it won’t get kinked or bent.

How it compares to metal reducers

Metal reducers are stronger, can be screwed and crimped, and better tolerate clamp pressure. They’re also bulkier for a given transition and often require more clearance. The Vent Systems reducer wins on:

• Compact size and low profile
• Smooth interior with no seams
• Quick, tool-light installation
• Corrosion resistance

Metal wins on:

• Structural strength and lifespan under abuse
• Heat tolerance and code acceptance in certain applications
• Ability to accept screws and beaded ends for positive engagement

If you’re outfitting a code-inspected dryer vent or a high-heat stack, use metal. If you need a fast, neat transition in tight residential HVAC or a hobbyist dust setup, the ABS part is hard to beat for convenience.

Who it’s for

• DIYers and pros needing a low-profile 6-to-5 step in a tight chase or cabinet
• Ventilation projects with inline fans, filters, or bathroom exhausts
• Light-duty shop dust collection branches where weight and simplicity matter

Who should look elsewhere:

• Anyone working on high-temperature flues or stove pipes
• Dryer exhaust runs in areas that mandate all-metal components
• Jobsites where fittings get tossed around and stepped on

Wish list

A couple of tweaks would make this part more forgiving:

• Slightly thicker walls at the rims to resist clamp-related cracking
• A shallow bead or molded groove to guide clamps and increase grip
• Published inside diameters in addition to outside measurements

None of these are deal-breakers, but they’d add confidence without sacrificing the compact form factor.

The bottom line

Used within its lane, the Vent Systems 6-to-5 reducer is a handy, compact adapter that installs quickly and seals well. It’s not a brute; it’s a tidy problem-solver for cramped spaces and light-duty transitions. I recommend it for general HVAC ventilation, inline fan setups, and small dust-collection branches where you value low profile and smooth flow and can support the joint properly. I don’t recommend it for high-heat applications, code-sensitive dryer vents, or anywhere the fitting will see clamp abuse or mechanical stress.
