DeWalt TOUGHSYSTEM 2.0 DXL 30 in Dolly

What it is and why I used it

I needed a low, stable base to move heavy workstation modules around a mixed environment—polished concrete in the shop, uneven sidewalks outside, and the occasional cracked driveway. The DXL dolly promised three things that mattered to me: a true 440 lb (200 kg) rating, 6 in casters to roll over jobsite debris, and direct compatibility with the 30 in ToughSystem 2.0 DXL workstation format. On paper, that combination is rarer than you’d think. After a few weeks of hauling stacked modules, awkward appliances, and even a couple of planters, here’s how it actually performed.

Setup and first impressions

Out of the box, this isn’t a snap-and-go dolly. It arrives in a well-protected carton and requires installing the four casters. Plan on 25–35 minutes if you have a ratchet and a wrench ready. The hardware is stout and the mounting points are reinforced; it’s not a difficult install, but attention to orientation matters. Two casters have foot brakes (red levers), and you’ll want those on the same side so you can lock both with one foot when parking the load.

A quick tip from my assembly: ignore any temptation to force-fit a caster to “match a picture.” The sockets are keyed; line up the hardware by the keyed features and make sure the plastic sleeves sit squarely through the metal apertures before tightening. If the caster doesn’t seat flush with light hand pressure, something’s misaligned—back off and rotate it instead of muscling it in.

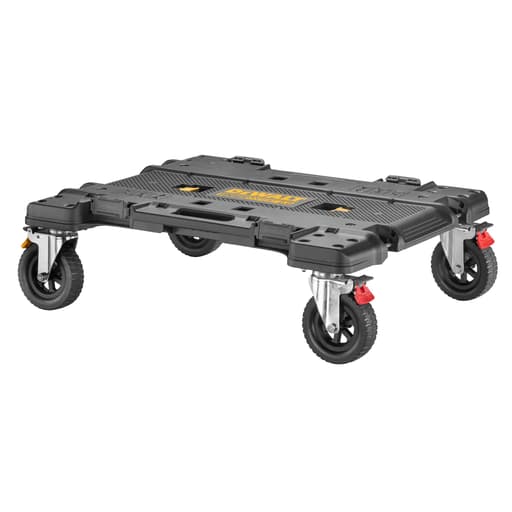

Once assembled, the dolly feels like a dense, reinforced slab. The platform measures roughly 32 x 26 x 10 in (L x W x H) and weighs about 27 lb (12 kg). That heft is noticeable, and it does telegraph durability.

Build and design

The chassis is an impact-resistant composite over integrated steel bars. That combination is the right call for a mobile base: the steel carries the load; the shell shrugs off scuffs and keeps the weight reasonable. It’s also low—only about 10 in tall—so stacked modules sit close to the ground, which helps stability. The side handles are a highlight: large enough for gloved hands, centered well, and confidence-inspiring when lifting the empty dolly into a truck or onto a rack.

Four metal rail inserts at the perimeter are a thoughtful addition. They make it easy to run cam straps or bungees across odd-shaped loads, and they’re properly reinforced so you can tension the straps without worrying about deforming the plastic.

Fit and finish are solid throughout. There’s nothing sharp or flimsy; corners are radiused, and the latching interface for the workstation modules is precise. The compatibility story is important: this base is designed for the 30 in ToughSystem 2.0 DXL footprint. Standard 22 in ToughSystem boxes don’t lock into it. If you’re in the DXL ecosystem, the interface is excellent—the modules drop on, locate positively, and lock with a reassuring click. If you aren’t, treat this as a premium furniture dolly that happens to be great for heavy, flat-bottomed items.

Mobility and handling

Casters make or break a dolly. Here, all four wheels swivel, which gives you true 360° maneuverability. Two have foot brakes that hold the dolly steady during loading. The 6 in diameter helps clear thresholds, cords, and small debris that tends to stop smaller casters cold. On open floors, the dolly tracks straight and feels planted; you can push with one hand and make small course corrections easily.

There are trade-offs. The big wheels and square footprint add a few inches beyond a stacked module’s edges. That extra width is welcome for stability but can be the difference between gliding through a narrow hallway and bumping baseboards. In tighter spaces and crowded vans, the combination of large wheels and full-swivel casters requires a bit more finesse. I could still snake it through, but pivoting in place takes a wider arc than on smaller, softer wheels.

Rolling resistance varies by surface. On smooth concrete and epoxy floors, it’s excellent—quiet and predictable. On coarse broom-finished concrete or asphalt, you can feel the wheel hubs flex slightly under heavier loads. It never felt unsafe, but under near-capacity loads the push effort increases, and the wheels transmit more vibration. If you routinely run at the top of the weight rating over rough ground, upgrading to higher-spec casters would meaningfully improve the experience.

Stability and load capacity

DeWalt rates this platform at 440 lb (200 kg), and structurally the chassis supports that claim. I loaded it with a stacked workstation, hand tools, and a pair of boxy components totaling a bit over 300 lb. The deck didn’t oil-can, and the latches kept modules from creeping. Low height and the wide stance make tipping unlikely unless you’re doing something ill-advised, like fast turns with a top-heavy load.

The side rails for strapping are not marketing fluff. I used them to secure irregular items—a compressor tank and a pail stack—and the ability to cinch a strap to steel-backed points is a big step up from improvising around plastic.

Day-to-day use

• Shop moves: For rearranging benches and moving a loaded workstation across 50–100 feet of concrete, it’s great. The brakes let me lock it at the bay door on a slight pitch without worry.
• Outdoors: Over pavers and expansion joints, the 6 in wheels do their job. You still feel the bumps, but you’re not getting hung up.
• Tight quarters: In narrower passages, the overall width is noticeable. Plan your route, and be mindful of door casings and drywall corners.
• Loading and transport: The side handles are genuinely helpful. I could lift and slide the empty dolly into a pickup without hunting for a comfortable grip.

Noise is average for hard wheels—fine indoors, a bit rattly over rough exterior surfaces. There’s no IP rating to consider here, and there’s no lock; those are box features, not dolly features.

Integration with the DXL system

If you’re already committed to the 30 in DXL format, this base is the foundation the system deserves. Modules interface securely, ball-bearing drawer units (sold separately) ride smoothly once installed on the base, and the low platform height keeps the center of gravity manageable. The latches align consistently, so stacking and unstacking doesn’t turn into a wrestling match.

If you’re not in the DXL ecosystem, be realistic. As a general-purpose dolly, it’s overbuilt and more expensive than a basic furniture dolly. You’re paying for the integrated structure, the strap points, the large swivels, and the system connectivity. If those don’t matter to your workflow, there are cheaper ways to move a dresser.

What could be better

• Maneuverability in tight spaces: The big casters and square footprint make it less nimble where inches count. A narrower option or dual-size lineup would be welcome.
• Casters under heavy rough-surface loads: They do the job, but the hubs flex perceptibly over coarse concrete with heavier weights. Upgraded, higher-durometer casters would reduce push effort and vibration.
• Assembly clarity: The caster orientation is easy to get wrong if you’re going by color cues alone. A clearer note about brake-side placement and keyed alignment would prevent misinstalls.

None of these are deal-breakers, but they are things you’ll notice if you use the dolly daily across mixed environments.

Value and warranty

This is a premium base with a premium price. The limited lifetime warranty is reassuring, and the chassis feels like it will outlast several sets of casters. If you leverage the system integration and strap points, the value is there. If you only need a generic mover, you’ll find cheaper options that are “good enough.”

Who it’s for

• Trades and shops invested in 30 in ToughSystem 2.0 DXL modules who want a stable, rollable foundation with real load capacity.
• Home shops and garages moving heavy, boxy items over mixed surfaces who appreciate large casters, brakes, and tie-down points.
• Not ideal for users working predominantly in very tight interiors or those who just need a one-off, budget furniture dolly.

Recommendation

I recommend the DXL dolly if you’re using (or planning to use) the 30 in DXL ToughSystem setup, or if you need a low, stable, 440 lb–rated platform that can handle rougher surfaces without drama. It’s genuinely stout, thoughtfully designed, and backed by a limited lifetime warranty. Be aware of the wider footprint in tight spaces and the fact that the casters, while large and versatile, aren’t magic on coarse surfaces at max load. If you’re outside the DXL ecosystem and simply want an inexpensive mover, you’ll save money with a basic furniture dolly. But for system users and anyone who values load rating, strap-ready rails, and a secure module interface, this is a solid foundation to build on.
