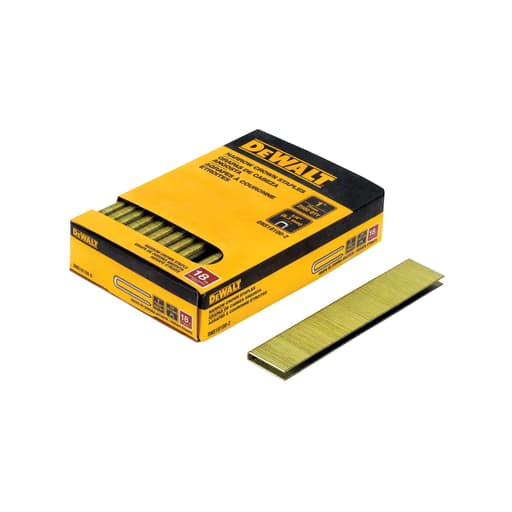

DeWalt 1 in. 18 Gauge 1/4 in. Narrow Crown Staples (2500 pk)

Why these staples earned a spot in my finish kit

I reach for narrow-crown staples a lot more than I used to—cabinet backs, light trim, drawer bottoms, underlayment tacking, and jig building. After running a full box of these DeWalt staples through both a cordless narrow-crown stapler and a compact pneumatic, I’ve come to trust them for that kind of everyday finish work. They’re 18-gauge, 1/4-inch crown, 1-inch leg length—right in the pocket for fastening thin stock to thicker material without blowing through or compromising holding power. And they behave like a good fastener should: they feed cleanly, drive consistently, and leave small, tidy marks that finish well.

Compatibility and setup

I used these in a DeWalt 20V cordless narrow crown stapler and an older Senco pneumatic. No fitment issues—the strips seat properly, the crown matches what both tools call for (1/4 inch), and the legs are straight and true. If your stapler is spec’d for 18-gauge, 1/4-inch crown fasteners, these should slot right in. As always, double-check your tool’s manual; a few staplers on the market use slightly different crown widths.

On the pneumatic, my sweet spot was 90–100 PSI for hardwood plywood and poplar. For softwood and MDF, I dropped closer to 85–90 PSI to avoid overdriving. The cordless stapler had no trouble sinking to depth on standard settings. Depth-of-drive adjustment was predictable—one click changes were visible and repeatable in the workpiece.

Drive quality and wood behavior

The chisel points do their job. In poplar face frames and pine trim, I had very little splitting when I oriented the crown with the grain and avoided shooting too close to end grain. In birch ply cabinet backs, the legs penetrated without flaring the veneer or telegraphing through. On red oak stair riser skins glued to construction-grade treads, I used these staples to tack the skins while the adhesive set; the legs bit firmly without bruising the surface, and the visible crown marks were easy to fill.

A couple of pointers if you’re new to 18-gauge staples:
- Keep the crown parallel to the grain when possible to minimize splitting.
- Back your pressure off in softer materials; these will happily overdrive if you let them.
- In thin back panels (1/4 inch), aim for framing members behind the panel, not just the panel itself. A 1-inch leg length is ideal for panel-to-frame fastening.

Collation and feeding reliability

These are glue-collated, and the strips hold together well in the box, in the pouch, and in the magazine. I didn’t have the annoying mid-strip crumbles that cheaper staples sometimes suffer. Over roughly 2,000 shots across a few projects—cabinet backs, shop jigs, some stair trim work, and tacking down a thin plywood underlayment prior to screwing—jams were essentially a non-issue. One partial seat at the very end of a strip was on me for outrunning the tool while the magazine was nearly empty.

Glue collation can sometimes leave residue on a driver blade in hot conditions. I didn’t see that here. After a long day in a warm shop, the driver was clean and the staple legs didn’t pick up glue smears that could drag in hardwood.

Coating, corrosion resistance, and where to use them

These are galvanized/coated staples, which is useful insurance for moisture-prone interior spaces—kitchens, bathrooms, basements—especially when you’re fastening plywood backs or underlayment that may see humidity swings. That said, they’re not stainless. For exterior trim or cedar/redwood where tannins and weather are in play, I’d move to stainless staples to avoid staining and longer-term corrosion. For interior cabinetry, furniture, trim returns, drawer boxes, and underlayment, the coating here is perfectly appropriate.

The galvanization is even and doesn’t seem to add burrs—the legs are smooth. I didn’t see any finish discoloration migrating through primer or paint around filled staple heads, which can happen with some low-grade coatings.

Holding power and surface appearance

One reason I like 18-gauge staples over brads in some applications is the two-leg grip. You get a broader footprint that resists racking and pullout better than a brad of similar gauge. That played out in practice: drawer bottoms stayed tight with just a bead of glue and a pattern of these staples, and a cabinet back didn’t drum even before I added screws. For face-grade work that will remain visible, I still go to brads or pins; a 1/4-inch crown leaves a wider impression than a brad head. But for hidden fastenings, jig building, cleats, and anything that will be covered with scribe molding or filler, the compromise is worth it.

Drive marks are consistent and shallow. With depth set correctly, the crown sits just below flush without tearing fibers. Filled with a lightweight filler and sanded, the spots disappear under paint. On stain-grade work, I avoid exposing the crown anywhere it might show; that’s more about staple geometry than this specific product.

The 1-inch leg length sweet spot

At 1 inch, these staples are versatile. They’ll bridge 1/4-inch material into 3/4-inch without punching through, and they provide solid bite for 1/2-inch ply to 3/4-inch frames. For underlayment, I prefer longer legs if the substrate allows it, but used in combination with adhesive and supplementing screws, 1 inch is effective and doesn’t risk hitting plumbing or electrical in shallow floors. If you routinely fasten thick material or need deeper penetration into subfloor, keep 1-1/4-inch legs on hand as well.

Quality control and packaging

Consistency matters more than any single feature with staples, and these are consistent. Legs are straight, crowns are square, and the point geometry is uniform strip to strip. I didn’t pull any obviously bent or malformed staples out of the box. The bulk packaging is practical: the box is compact, holds up to jobsite jostling, and the strips don’t explode when you open it. At 2,500 count, it’s a good middle ground—enough for several projects without committing to warehouse quantities.

Price and value

These DeWalt staples sit on the higher end of the price spectrum compared to off-brand 18-gauge narrow-crown staples. If you’re burning through tens of thousands a month on production work, the price gap adds up. For small shops and remodelers, the math tilts back toward reliability. A jam or a misfeed during finish work costs more than the per-strip premium: rework, touch-ups, and broken rhythm. In my use, the absence of jams and the consistent sinking depth save time, and that offsets the cost difference.

If budget is a top priority and you’re working in forgiving materials, you can make cheaper staples work. I keep a bulk box of generics for rough shop projects. But when I’m inside a client’s house or installing cabinets, I prefer the predictable behavior I get here.

Tips for best results

• Orient the crown with the grain where possible to reduce splitting.
• Test depth settings on scrap; these will overdrive if you push pressure too high.
• Keep a small brass punch handy to set any proud crowns without marring the surface.
• For hardwoods, slow your cadence slightly with a cordless stapler; it improves depth consistency.
• Pair with adhesive when fastening panels or underlayment to lock out squeaks and add stiffness.

Who these staples are for

• Finish carpenters and remodelers who need dependable feeding and consistent drive quality.
• Cabinetmakers and furniture builders for backs, bottoms, light assembly, and jig construction.
• DIYers tackling trim, built-ins, or shop storage who want a forgiving, all-around size and gauge.

If your work lives outside, near salt spray, or demands invisible fasteners on show faces, you’ll want different fasteners—stainless for the former, brads or pins for the latter.

Recommendation

I recommend these DeWalt staples for anyone doing interior finish work who values reliable feeding, clean drive quality, and consistent manufacturing. The chisel points help minimize splitting, the glue collation keeps the strips intact and the magazine happy, and the galvanized coating is appropriate for most interior environments. They cost more than bargain brands, but in my experience the lack of jams and the predictable set depth justify the premium, especially on projects where rework isn’t an option. If you need stainless for exterior use or you’re chasing the lowest possible price for rough work, look elsewhere. For day-in, day-out finish tasks, these have earned a permanent spot in my fastener drawer.
