ATIE Upgraded Pool Check Valve Rebuild Kit Compatible with 263042Z Check Valve Rebuild Kit for Pentair 2" Check Valve 263042 ONLY (Not Compatible with FullFLOXF Check Valves 263060 & 263077)

Why I reached for this kit

A failing check valve is one of those small pool problems that quickly becomes a big headache—air in the lines, a spa that drains overnight, or a chlorinator that backflows when the pump stops. I picked up the ATIE rebuild kit specifically for a Pentair 2" CPVC check valve (model 263042) that sits between my pump and filter. The existing flapper’s rubber had hardened and was no longer sealing reliably. Instead of replacing the whole valve body, I wanted an economical, quick, and clean rebuild. This kit promised upgraded materials, a reinforced cover, and a stronger spring—exactly the refresh I was after.

Before I go further, compatibility is critical here. This kit is for the eight-screw Pentair 263042 valve with an oval flapper. It will not work with Pentair’s FullFLOXF valves (12 screws, models 263060 and 263077) or Jandy valves (rectangular flappers). If you’re not sure what you have, count the screws and look at the flapper shape before ordering.

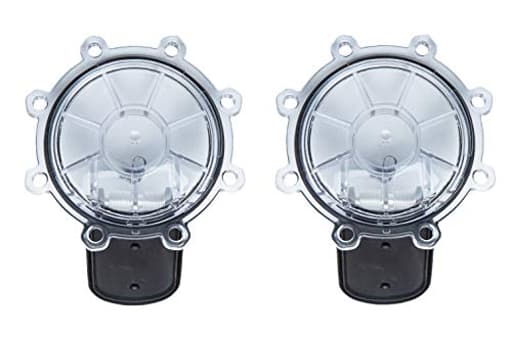

What’s in the box

The kit includes:
- Replacement flapper assembly
- Stainless-steel spring and hinge pin
- New cover
- Cover O-ring

No screws were included with mine, which is fine; the originals transferred over without issue. Everything arrived clean and free of flashing, with the flapper’s sealing surface looking uniform and the cover feeling slightly sturdier than the original.

Installation experience

The swap is straightforward if you’re comfortable with basic pool plumbing work. My steps:

1. Shut the pump off, close valves to isolate the section, and relieve pressure at the filter’s air relief.
2. Put a towel under the valve—some water will spill when you open it.
3. Remove the eight screws holding the cover. Keep track of orientation; there’s an arrow on the valve body showing flow direction.
4. Pull the old cover and flapper. Inspect the seat inside the valve body—this is where the new flapper will seal.
5. Clean the sealing surfaces. I used a nylon brush and a rag; any grit here will undermine the new seal.
6. Drop in the new flapper with the pin and spring in the same orientation as the original (spring closes the flapper against backflow).
7. Lightly coat the new O-ring with silicone-based lubricant and press it into the cover groove.
8. Install the cover and hand-tighten the screws in a cross pattern. Do not use a drill; it’s easy to crack pool plastics with uneven torque.

On my first attempt the O-ring slipped slightly out of its groove, weeping a small amount of water when I restarted the system. Removing the cover, re-seating the O-ring with a touch more lube, and retightening carefully solved it. The groove in the cover holds the O-ring, but it’s not overly deep, so take your time and tighten evenly. Once set, I had no drips.

Total time: about 20 minutes, including cleanup.

Design differences vs. OEM

The flapper shape in this kit isn’t a clone of the OEM part—it’s close, but the contour is a bit different. The spring is notably stronger than the one I pulled out of my aging valve, which I appreciated. A firm spring reduces chatter and helps the flapper snap closed when the pump shuts off, improving backflow prevention. The trade-off is a slightly higher cracking pressure: it takes a touch more force to open the flapper. In my system, even at low variable-speed settings (around 1200–1400 RPM), flow started without hesitation. If you run extremely low RPMs, it’s something to keep an eye on, but for typical pool circuits it’s a non-issue.

The included cover feels stiffer than the original. That matters because over-tightening or UV-baked plastics can lead to hairline cracks. While I didn’t torque-test the part, the material does seem less brittle than what I removed.

Performance and sealing

The real test was overnight. Prior to the rebuild, my spa was dropping several inches by morning. With the ATIE flapper installed, the spa level held steady and the chlorinator—downstream of the valve—stayed dry with the pump off. I also checked for creep by isolating the spa and cracking the chlorinator’s lid to see if water pushed back through; none did. That tells me the flapper is seating well against the valve body.

Two tips that seemed to make the difference:
- Clean the valve seat thoroughly. Old rubber can leave a hard ring or residue that prevents a perfect seal.
- Inspect for warping or scratches inside the valve body. If the body is damaged, any flapper may struggle to seal consistently.

Once dialed in, the cover remained dry and the system primed normally. I noticed no unusual water hammer or flapper chatter on pump stop/start cycles.

Material choices and durability

This is a chlorine-rich, high-UV, high-temperature environment. The kit’s selling points—stainless spring/pin and improved chlorine/corrosion resistance on the flapper and seal—are well chosen. After several months in service, the flapper edge is still pliable and not chalking, and the spring shows no discoloration. That’s not a long-term endurance verdict, but it’s encouraging. Historically, soft flapper material hardens long before the plastic body fails, so if the rubber compound holds up, the rebuild interval stretches.

Quirks and gotchas

• Compatibility is not optional. Count the screws (eight, not twelve) and confirm the flapper shape (oval, not rectangular).
• The O-ring groove could be more positive. A dab of silicone lube and a careful cross-tightening pattern solve it, but don’t rush this step.
• The stronger spring is a feature, but in edge cases with extremely low flow it might raise cracking pressure enough to matter. Most pool pumps have more than enough head to open it cleanly.
• If your valve body seat is nicked or out-of-round, no rebuild kit will save it. Inspect before you commit.

Value

This kit costs a fraction of a full OEM replacement and includes the parts you’re most likely to need: flapper, spring/pin, cover, and O-ring. Considering the ease of installation and the performance I saw, the value proposition is strong. If you’re maintaining multiple check valves in a larger pad, stocking one of these on the shelf is an easy win.

Practical tips for a first-time installer

• Use a hand screwdriver. Over-torquing is how covers crack and O-rings pinch.
• Clean everything. A single grain of sand under that O-ring will haunt you.
• Lubricate, but don’t drown, the O-ring. Too much lube can make it wander.
• Mark flow direction before disassembly if the valve body arrow is faded.
• Test for backflow intentionally: shut the pump, isolate circuits, and watch levels. Fix small seeps now rather than discovering a drained spa in the morning.

Who it’s for

• Owners of Pentair 2" CPVC check valves model 263042 with eight screws who want to stop backflow without cutting plumbing.
• DIY pool caretakers comfortable with basic pad work.
• Anyone looking to refresh a flapper that’s hardened, swollen, or pitted from chlorine exposure.

It’s not for:
- FullFLOXF owners (12-screw bodies, models 263060 and 263077).
- Systems with Jandy rectangular flappers.
- Valves with damaged or warped seats where a rebuild won’t restore sealing.

Recommendation

I recommend the ATIE check valve rebuild kit for the Pentair 263042 to pool owners who confirm compatibility and are willing to take a careful, methodical approach to installation. It installs quickly, the reinforced cover and stainless hardware feel up to the job, and the stronger spring delivers confident closure without introducing noticeable flow penalties in a typical pool system. My spa level stabilized immediately after the swap, and the cover has remained dry.

Be mindful of the O-ring seating and don’t over-torque the screws; those are the two common missteps. Provided your valve body is in good shape and you have the correct eight-screw, oval-flapper model, this kit is a cost-effective, reliable way to restore proper check-valve function without replumbing.
