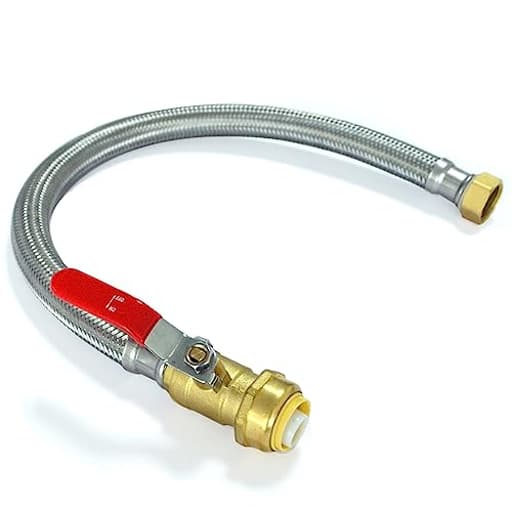

TT FLEX Stainless Steel Braided Flexible Water Heater Connector, Push To Connect Brass Plumbing Fitting,3/4" Ball Valve x 3/4" FIP, 24" Length

Why I reached for this connector

Replacing a water heater is one of those projects where small choices make a big difference in how smoothly the job goes—and how tidy the result looks. On my last swap, I used the TT Flex water heater connector, a 24-inch braided stainless line with a push-to-connect fitting on one end and an integrated 3/4-inch ball valve with 3/4-inch FIP on the other. It promised a no-solder, no-crimp install and a cleaner shutoff solution on the cold side. In practice, it did exactly that, and it did it without fuss.

What it is

Think of this as a flexible, stainless-braided jumper hose with a built-in shutoff. One end threads directly onto the heater’s 3/4-inch nipple (FIP on the connector to the heater’s male NPT). The other end pushes onto your supply piping—PEX, PE-RT, CPVC, or copper—without any tools. It’s lead-free and rated to 200°F and 200 PSI, which puts it comfortably above typical residential service conditions. It’s designed for both gas and electric water heaters, including units with flue vents.

Installation experience

The standout here is how little gear you need. On the heater side, I applied thread sealant (PTFE tape plus a dab of pipe dope is my preferred belt-and-suspenders method) to the nipple, started the FIP nut by hand to avoid cross-threading, and snugged it with a wrench while holding the valve body with a second wrench to keep the hose from twisting. The integrated quarter-turn handle is nicely sized and ends up right where you want it—easy to access above the tank jacket.

On the supply side, the push-to-connect fitting is as straightforward as it gets:

• Cut the pipe square and clean (no burrs, no scratches on the sealing surface).
• Mark the insertion depth for 3/4-inch (check the fitting or a depth gauge; marking ensures you seat it fully).
• Push until the mark disappears and give a gentle tug to confirm engagement.

I connected copper on the hot side and PEX on the cold; both sealed up immediately with no weeping. The 24-inch length gave me plenty of play to relieve stress on the nipples without an awkward loop.

A couple of small tips:

• Don’t twist the braided line to make the valve “look right.” Set the valve orientation with the wrench at the FIP nut, not by twisting the hose.
• Plan the hose routing before you tighten everything fully; give the braid a smooth radius and avoid any kink or hard bend at the fittings.

Design and build

The stainless braid feels properly dense and the crimps are clean. The valve is a true quarter-turn ball valve with a positive stop and a smooth action. It’s not bulky, which matters when you’re trying to keep the top of the heater uncluttered. The push-to-connect end has a solid brass body with a cleanly machined release collar. It’s compatible with the typical disconnect clips and tongs used for this style of fitting, which makes future maintenance straightforward.

Like most braided stainless connectors, this one arrived with a bit of “coil memory.” Even after being installed, it preferred a gentle arc rather than lying perfectly straight. That’s not a flaw—just a reality of braided lines—and it’s easy enough to work with if you route thoughtfully. If you need a dead-straight run, a rigid nipple might be better; but for bridging offset piping cleanly, this flexibility is a plus.

Performance and sealing

Once pressurized, I didn’t see any leaks at startup or after thermal cycling. I brought the heater up to temperature and checked the fittings again after a few hours; still dry. Flow is what I expect from a 3/4-inch connector. I didn’t notice any meaningful pressure drop at fixtures, including high-demand ones like showers running alongside the dishwasher. The ball valve seals cleanly in both directions, and the handle gives good feedback—no squish or vague travel.

Thermal expansion and contraction are where a flexible connector shines. It absorbs minor shifts without imparting leverage onto the heater nipples or your household piping. That relief can prevent nuisance leaks over time, especially in older houses where alignment is less than perfect.

Compatibility and code notes

The push end supports 3/4-inch copper, CPVC, PEX, and PE-RT, which covers most residential scenarios. A few practical reminders:

• If you’re pushing onto CPVC, confirm you’re using the correct schedule and temperature rating (180°F service at a minimum for hot).
• If you’re pushing onto PEX, use inserts or stiffeners only if the fitting requires it; this unit has the stiffener built in, so no extra parts needed.
• Keep the pipe end clean and free of paint or debris; push-to-connect fittings seal on a pristine surface.

On the code side, the integrated valve simplifies compliance where a cold-water shutoff within sight of the heater is required. Always check local amendments; some jurisdictions have preferences about flexible connectors versus hard piping and may have seismic bracing requirements that influence how you support the lines. In my case, the 24-inch length also satisfied minimum clearances near the flue.

Maintenance and longevity

Any push-to-connect system relies on an O-ring seal. Treat it accordingly:

• Don’t solder near it.
• Don’t expose it to abrasive cleaners or pipe dope on the sealing surface.
• Give it a quick look during annual water heater checks—wipe it dry and watch for any weeping at the collar.

I like to exercise the valve a couple of times a year. Quarter-turn back and forth helps keep the ball lubricated and confirms it’ll shut when you need it. Because the valve is integrated, if it ever fails or feels gritty, you’re replacing the entire connector. That sounds like a con, but reducing the number of separate fittings actually cuts down on leak points and usually improves reliability overall.

What could be better

• Coil memory: The line retains a gentle curve from packaging. Not a dealbreaker, but plan your routing so that curve works with you, not against you.
• Integrated valve serviceability: If the valve ever wears or a packing seal dries out years down the line, your only remedy is swapping the connector. On the flip side, that’s a two-minute job with a push-to-connect fitting.
• Clearance at the release collar: In tighter mechanical rooms, give yourself finger room to operate a disconnect clip later. Mounting heights and orientation matter.

Who will appreciate it

• DIYers replacing a heater without a torch or crimp tools
• Pros who want to move quickly while maintaining a clean, code-compliant shutoff
• Anyone transitioning from mixed piping types (PEX to copper, CPVC to copper, etc.) with minimal adapters
• Homes where minor misalignment between existing lines and the new heater would otherwise force a lot of custom rigid piping

Pros and cons

Pros:
- Tool-free push-to-connect installation on multiple pipe types
- Integrated 3/4-inch ball valve reduces parts and leak points
- Solid stainless braid and clean crimping
- Generous 24-inch length eases alignment and strain relief
- Lead-free, 200°F/200 PSI rating provides ample headroom

Cons:
- Braided line has some curve memory; not perfectly straight
- Valve is not individually serviceable
- Requires attention to proper insertion depth and pipe prep for reliable sealing

Final thoughts and recommendation

The TT Flex water heater connector hits the sweet spot between speed, reliability, and neatness. It saved me time on installation, gave me a confident shutoff right at the tank, and handled thermal cycling without complaint. The push-to-connect end inspires confidence when you prep the pipe correctly, and the stainless braid feels up to the task for long-term service. While the line’s natural curve and the one-piece valve design are minor trade-offs, they’re easy to accommodate with thoughtful routing and periodic checks.

I recommend this connector. If you want a clean, tool-free install with fewer potential leak points and a built-in shutoff, it’s a smart choice. It’s especially compelling for mixed-material plumbing or tight spaces where soldering or crimping is a headache. Keep a depth gauge handy, mark your pipe, and give the hose a smooth arc—you’ll be rewarded with a tidy, leak-free installation that’s ready for the long haul.
