Why I chose an angled emitter

I’ve fought my share of soggy lawn edges and sluggish downspout runs that “daylight” in flat yards. Traditional pop-up emitters have never been my favorite—great when they work, but they can freeze, stick, or trap debris. I installed the Holdly angled emitter to finish a 4-inch drain run from a back gutter with minimal slope. The promise was simple: keep water moving, keep critters and big debris out, and sit low and safe in turf.

Build and design

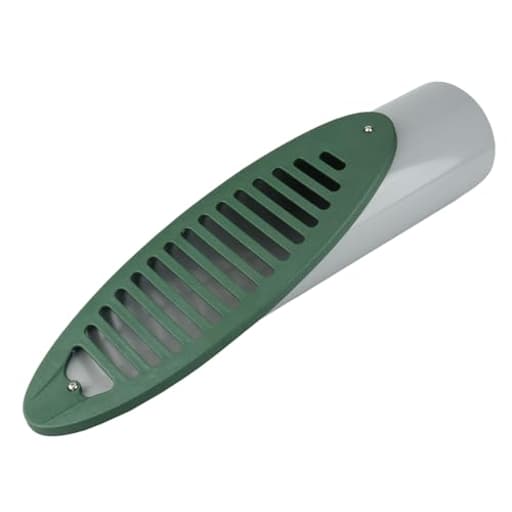

Out of the box, the emitter is substantial. The body is built to 4-inch Schedule 40 dimensions, with a thick wall that feels closer to what I expect from heavy-duty pipe than thin-walled landscape fittings. My calipers read roughly 4.46 inches OD and about 4 inches ID—right in line with Sch 40. The green grated face is mitered to the pipe at roughly 15–20 degrees, which puts the opening in plane with a gentle yard slope and keeps discharge directional rather than vertical.

The grate itself is robust. The ribs have a T-shaped cross section that resists flex, and the opening is long and wide—about 15 by 5 inches—so it handles a surprising amount of flow without backing up. Two screws let you remove the grate for cleaning. In turf, the green blends in better than black or white fittings and it sits low enough that it’s not a toe-stubber.

Material-wise, the body appears to be a tough, heat- and UV-resistant plastic rather than typical white PVC. Functionally, that’s not a problem, but it does matter for how you connect it (more on that below).

Installation: what worked, what didn’t

If you’re used to snapping corrugated drain right onto every fitting, plan for adapters. The emitter is sized like Sch 40 pipe, so you’ll need a transition fitting for SDR 35 (green sewer/drain) and a different one if you’re using black corrugated. I connected mine to SDR 35 solid using a Sch 40-to-SDR adapter. For corrugated, a rubber transition with a corrugated clamp ring and Sch 40 hub or spigot end will do the trick.

A couple of practical notes from my install:
- Don’t count on solvent welds. The body didn’t react to standard PVC cement in my tests. Treat it like a non-PVC component and use mechanical couplings or rubber boots.
- Dry-fit everything to ensure the mitered face lands where you want water to go. The angled geometry helps shed water away from beds or foundations, but rotation matters.
- Set it in compacted gravel. The piece is heavy for what it is, but with a long grate it can be pushed out of alignment by mower tires or spring thaw. I bedded it in 3/4-inch crushed rock and backfilled with topsoil for turf.
- Anchor if needed. In soft ground, a short length of rebar and perforated strap around the barrel kept mine from creeping. A small collar of concrete is another option if you want it absolutely fixed.

Once aligned and backfilled, the emitter sat flush with the lawn, and I could mow across it without a thunk.

Performance in the yard

This is where the angled design shines. Replacing a 90-degree elbow and round grate at the outfall with this emitter eliminated the stagnant water that used to sit in my pipe between storms. With minimal slope upstream, any vertical rise at the end of a run becomes a sediment trap; the Holdly lets the line run straight through to daylight, so flow stays laminar and sediment moves out.

In a couple of strong summer storms, the emitter kept up without pooling at the face. The long, wide grate spreads discharge across more area than a circular cap, which keeps velocities down and protects the turf. I noticed far less splashing than you get from a straight-cut open pipe, especially on clay-heavy soils.

Debris management is good, not magical. Larger leaves and cones stay out, which is the whole idea, and small shingle grit passes straight through without building a mat. Pine needles will still collect, but they’re easy to brush away; if you battle fine debris, a piece of coarse stainless mesh under the grate is a simple upgrade.

As a bonus, the grate blocks burrowing critters and curious rodents that like to turn yard drains into homes. After a season, I haven’t found any evidence of animal intrusion.

Using it as an inlet

The mitered face is equally useful as a low-point inlet in a shallow swale. I tested it temporarily as a collector for a rain chain, and the wide opening captured sheet flow reliably. If you plan to use it that way, I’d add a small gravel apron around the face to keep mulch from migrating, and raise it a touch to avoid burying the lip.

Durability and weather

The manufacturer calls out UV and heat resistance, and that tracks with my experience. After months of full sun exposure, I’m not seeing chalking or brittleness. The grate has taken foot traffic and a couple of passes from a mower tire without deforming. I still straddle it with a riding mower out of habit, but the structure feels up to normal residential use.

Winter performance was part of my decision to ditch pop-ups. The open, angled outlet doesn’t freeze shut the way spring-loaded caps can. In freeze–thaw cycles, not having a vertical riser right at the outfall also reduces heaving and the associated cracking you get in elbow fittings.

Maintenance

Maintenance is straightforward:
- Pop the two screws and the grate lifts off to flush the line.
- After big leaf drops, sweep the grate clean.
- Inspect alignment each spring if your soil heaves.

I’ve found service intervals to be quarterly at most. If your upstream gutters are screened, you’ll likely need even less attention.

What I’d change

• Include or clearly specify adapters. Most DIYers are connecting to SDR 35 or corrugated. Having an appropriate transition in the box—or at least clear guidance on the exact adapters—would save a trip to the store.
• Clarify solvent compatibility. If the body isn’t PVC, say so prominently. It’s not pressurized, so a rubber or mechanical connection is fine, but people will try to glue it.
• Offer a smaller footprint option. The large grate is excellent for flow, but it requires space. A shorter-face variant would help tight planting strips.

Who it’s for

• Flat or near-flat runs that struggle with standing water at the outfall
• Replacements for pop-up emitters in freeze-prone climates
• Daylight terminations where you want low trip risk and lawn-friendly discharge
• Simple yard inlets in shallow swales or for rain chains

If you’re building a system with steep slope and clean flow, a basic open pipe may suffice. If you need to keep water moving and keep junk and paws out, this design is a meaningful upgrade.

Cost and value

It’s pricier than a round grate or open elbow, but you’re paying for a heavy-walled body, a long, rigid grate, and a geometry that solves a common drainage flaw. The reduction in maintenance and ponding has been worth it for me, especially compared to replacing gummed-up pop-up caps every couple of seasons.

Tips for a clean install

• Use a Sch 40-to-SDR adapter for green drain pipe, or a corrugated-to-Sch 40 transition for black flex.
• Avoid solvent welds; use rubber couplings or mechanical adapters.
• Bed in compacted gravel and anchor in soft soils.
• Orient the grate so discharge runs with the slope you have, not across it.
• Add a small gravel apron if you’re in mulch-heavy beds.

Recommendation

I recommend the Holdly angled emitter for anyone finishing a 4-inch drain run to daylight, especially on low-slope yards or where pop-up emitters have been problematic. It’s robust, thoughtfully shaped, and it keeps water moving without creating a trip hazard. Plan on buying the right adapter for your pipe type and set it well in the ground; do that, and you’ll get a durable, low-maintenance outfall that actually improves how your drainage system performs.
