CHENBO 620pcs 2.54mm/0.1" Connectors Wire Jumper Cable Pin Header Connector Housing Assortment Kit Male Female Crimp Pin Connector Terminal Pitch With Plastic Box

Why I reached for this kit

I’m forever wiring up quick sensor harnesses, PWM fan leads, and microcontroller breakouts, so a reliable stash of 2.54 mm connectors is non-negotiable for me. The CHENBO 2.54 mm connector kit has lived on the corner of my bench for months, and it has quietly replaced the pile of mismatched housings and terminals I used to keep around. It’s not flashy, and it doesn’t try to be. It’s a straightforward collection of male/female housings, crimp pins, and straight headers that cover most everyday prototyping needs.

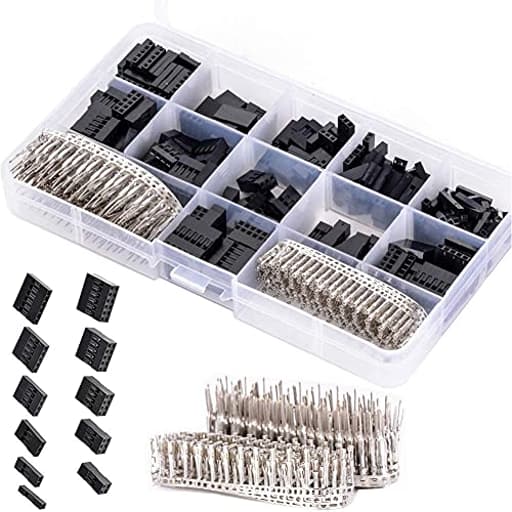

What you actually get

The kit centers on the standard 0.1 inch (2.54 mm) ecosystem—the same pitch you see on breadboards, Arduino headers, and a lot of breakout boards. Inside the plastic organizer are:

• Black plastic housings from 1x1 up to 2x6
• A healthy supply of tin-plated crimp terminals (male and female)
• Straight 0.1 inch header strips
• Compatibility with 18–26 AWG wire (in practice, I found 22–26 AWG to be the sweet spot)

It’s a practical spread. The single-row housings cover most point-to-point and signal harnesses, while the 2-row housings are useful for denser connections to board headers. The included straight headers make it easy to add posts where you need them or create quick test tails.

Build quality and fit

The housings are rigid enough to hold shape but not brittle. I’ve crammed them into tight spots and yanked them by the wire more times than I care to admit; the retention tabs inside the housings have held up without deforming. The terminals arrive clean with consistent plating and no obvious burrs. That matters: cheap terminals with rough edges love to snag on the housing and refuse to seat. I didn’t have that problem here.

Mating fit is on spec. Female housings seat onto standard 0.1 inch headers without slop, and the male pin + housing combos mate reliably with standard female sockets. Straight headers are straight—no banana bends from poor packaging—and they take solder well with no unusual flux drama.

One small detail I appreciate: once a terminal snaps into the housing, the retention barb actually catches. That means fewer instances of pins backing out when you tug on a harness to re-route it.

Crimping experience

If you own a proper Dupont-style crimper (the common SN-28B variant, for example), you’ll be up and running in minutes. The terminals in this kit crimp cleanly with predictable “wings”: one set bites the conductor, the other grabs insulation for strain relief. With 24–26 AWG silicone or PVC wire, I can do a tidy two-stage crimp without having to pre-tin or over-squeeze.

A few practical notes from my bench:

• Wire gauge: 22–26 AWG works best. You can use 20 AWG with careful prep, but the terminal starts feeling bulky. 18 AWG is at the edge; I only use it if absolutely necessary and with a very careful crimp to avoid splaying the wings.
• Pliers in a pinch: You can crimp these with needle-nose pliers for a one-off repair, but it’s slower and easier to misalign the wings. If you plan to make more than a few leads, invest in the proper crimper—it pays for itself in time saved and fewer scrapped terminals.
• Insertion: Orient the terminal so the retention barb faces the latch side of the housing. Push until you hear/feel a click. If you need to remove one, use a thin pin or extraction tool to depress the tab—don’t force it, or you’ll bend the contact.
• Strain relief: Add a small length of heat shrink over the back of the housing if the harness will see a lot of movement. These are friction-fit connectors; a bit of mechanical reinforcement goes a long way.

In use: prototyping to light-duty installs

For day-to-day prototyping—sensor breakouts, UART/ISP jumpers, LED strips, small fans—this kit hits the mark. I regularly build custom 3- and 4-pin fan leads (12 V, GND, tach, PWM) and the terminals handle that current without issue. I avoid pushing high current through 2.54 mm Dupont-style connectors anyway; for anything past low amps or with significant vibration, I’ll move to a locking, higher-current family.

On breadboards and microcontroller headers, the fit is just right. I appreciate having 2x housings in the kit: they make compact board-to-harness connections cleaner than stacking single-row connectors. Straight headers from the kit serve well as temporary posts on perfboard or as quick disconnect points in test fixtures.

For automotive or other high-vibration environments, I’d use this kit for cabin or protected applications only and add strain relief. Under-hood, I prefer sealed, locking connectors. That’s not a knock on this kit—Dupont-style connectors simply aren’t designed for harsh environments.

Organization and assortment

The included box is basic but serviceable. The compartments keep sizes separated, though there are no labels, so I added my own. The count of terminals is generous enough that I didn’t run out mid-project, which is more than I can say for a lot of budget assortments. If I could change one thing, I’d add a few keyed or latch-style housings for polarization. As is, you’ll need to pay attention to orientation, especially with multi-pin harnesses.

The selection from 1x1 to 2x6 covers almost all the pin counts I care about for prototyping. If you regularly work with large IDC-style runs, this isn’t that. But for modular, small harnesses, it’s the right spread.

Compatibility and performance notes

• Pitch: 2.54 mm (0.1 inch), the hobbyist and dev-board standard.
• Mates with: Arduino/ESP/RPi-style headers, breadboards, and most generic 0.1 inch sockets and pins.
• Wire: Rated for 18–26 AWG; 22–26 AWG is the best day-to-day experience.
• Current: I treat these as signal/logic and light power lines. For higher current or critical power, step up to a connector family designed for it.

I tested continuity and contact resistance across a handful of crimps and saw consistent, low-resistance joins, with no intermittency when flexing the wire at the strain relief. After a few dozen mate/unmate cycles, the terminals remained snug. As with all friction-fit connectors, long-term reliability comes from proper crimping and minimal side loading.

What works well, what could be better

What I liked:
- Reliable crimps with a standard Dupont-style tool
- Clean seating into housings with positive retention
- A practical spread of housing sizes, including 2-row options
- Straight headers that are actually straight and solder cleanly
- Cost-effective for building a “shop stock” of 0.1 inch connectors

Where it falls short:
- No keyed/latching housings; easy to reverse-connect if you’re not careful
- Organizer isn’t labeled; expect to sort and label compartments yourself
- 18–20 AWG can be finicky; the terminals will take it, but it’s not as graceful as 22–26 AWG

Who this kit suits

• Hobbyists and makers building Arduino/ESP projects
• PC modders wiring custom fan and RGB leads
• Technicians doing light-duty harness repairs and rebuilds
• Educators and labs that need a replenishable stock of standard connectors

If your work lives in the 2.54 mm world and you value building custom cables instead of relying on pre-made jumpers, this kit is the right kind of boring—the dependable kind.

Final thoughts and recommendation

The CHENBO 2.54 mm connector kit doesn’t try to be everything to everyone. It’s a well-rounded assortment that nails the basics: good terminals that crimp properly, housings that hold them, and headers that fit. It has earned a spot on my bench because it removes friction from the little tasks—making a quick three-pin sensor lead, rebuilding a fan cable, or adding a modular connector to a perfboard.

I recommend this kit for anyone who regularly works with 0.1 inch connectors and wants a dependable, cost-effective assortment. It’s ideal for prototyping and light-duty installations, provided you use the right crimper and respect the limitations of friction-fit, non-locking connectors. If you need sealed, keyed, high-current, or vibration-proof connections, you’ll want a different family—but for the vast majority of bench and enclosure projects, this kit is exactly what it should be.
