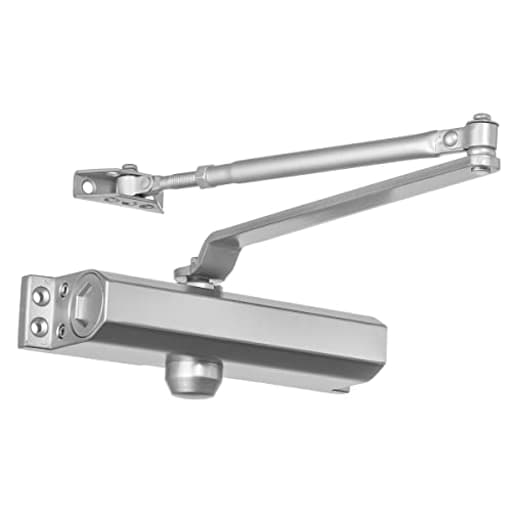

Dynasty Hardware Door Closer, Commercial Hydraulic Closer, Self-Closing, Spring Size 4, ADA Compliant, Surface Mount, Sprayed Aluminum, Series 4000

Why I reached for the Series 4000 closer

I needed a no-drama closer for a busy utility door that sees a steady mix of foot traffic, deliveries, and the occasional gust of wind when the bay opens. I wasn’t looking for bells and whistles—just a straightforward, commercial-grade unit with smooth action, reliable closing, and sane installation. The Series 4000 closer from Dynasty Hardware checked those boxes on paper: surface mount, non-handed, ADA compliant, and a fixed spring size 4 for medium to heavier traffic. After a full install and several weeks of daily use, here’s how it did.

What’s in the box and first impressions

The closer feels substantial right out of the packaging. The cast body has a clean sprayed aluminum finish, the arm is stout, and the hardware isn’t an afterthought—full-length screws with decent thread engagement for wood or metal doors/frames are included. An Allen key is provided for the valve adjustments, and the mounting templates cover the three common install configurations: regular arm, top jamb, and parallel arm. Nothing exotic here; it’s the kind of kit that lets you get straight to work.

Fit and finish are appropriate for commercial duty at this price point. There’s no rough casting, the finish is uniform, and the arm hardware mates up nicely without slop. It looks utilitarian on the door in the best possible way.

Installation and setup

This closer is non-handed, so I didn’t have to worry about right- or left-swing orientation. The included templates are accurate; tape them up, mark your holes, and you’re well on your way. If you’ve installed closers before, the process is familiar. If you haven’t, study the template carefully—each mounting method has slight differences in hole patterns and arm orientation, and mixing them up is an easy mistake.

I installed this in a parallel-arm configuration on a metal door/frame to keep the arm tucked away. The screw bite into the metal frame was solid, and there was enough hardware for a secure mount without a trip to the fastener bin. The body went on square, the arm attached easily, and the adjustment valves were accessible with the door open.

Out of the box, the closer had a balanced closing speed, but I took a few minutes to dial in two settings:
- Sweep speed: the main closing speed from fully open to about 10–12 degrees.
- Latch speed: the final few degrees where you want a confident but not aggressive close.

Both adjustments responded predictably to minor turns of the Allen key. The closer doesn’t have a power adjustment—a size 4 spring is fixed—so your “strength” tuning is about speed, not force. That’s typical for this class and price.

ADA considerations

ADA compliance with closers is mostly about controlled, consistent closing speed and opening resistance that isn’t excessive. With this unit set conservatively, the door takes a compliant amount of time to close from 90 degrees to near latch, and the action is smooth throughout the sweep. As always, whether an opening meets ADA for force depends on the entire assembly—hinges, seals, weatherstripping, and door weight. The closer makes it easy to hit the time-based requirement; just don’t crank the valves down to make the door slam shut.

In use: smooth, predictable, and quiet

Day to day, the Series 4000 has been pleasantly invisible. The hydraulic action is smooth with no mid-stroke stutters, it doesn’t hiss excessively, and once adjusted it holds those settings. Latch engagement is authoritative but not rude, so you’re not rattling the frame or aggravating anyone on the other side of the door. In a typical indoor or sheltered exterior location, it behaves like a higher-end unit than its price suggests.

On a windy day with the bay door open, a fixed size 4 closer won’t bully a heavy door through a sustained gust; that’s true of most size 4 units. It still managed to close consistently once the wind eased. If your opening sees regular, strong crosswinds or you’re dealing with an oversize, high-pressure exterior door, I’d step up to a stronger spring size or a closer with adjustable power. For standard commercial and residential applications, size 4 is a sensible middle ground.

Build quality and durability

The closer body and arm feel robust, and the sprayed aluminum finish has resisted fingerprints and scuffs well so far. The pivot points and arm shoe show minimal play after installation and normal use. Crucially, I haven’t seen any oil seepage from the body or valves. Hydraulic closers live and die by their seals and fluid retention—no leaks and consistent speed are what you want to see in the first weeks, and that’s what I’ve observed.

Because this is a fixed-power unit, there’s less to go out of adjustment over time. The two speed valves are the main user adjustments; set them once, check them after a day, and you’re typically done. If you’re installing on a door with worn hinges or misaligned hardware, no closer will save you—fix the fundamentals first.

Where it fits—and where it doesn’t

Best fits:
- Commercial interiors or semi-sheltered exterior doors in medium to heavy traffic
- Workshops, utility doors, storefront vestibules, garage-to-house entries
- Replacements where a surface-mounted, non-handed size 4 closer is already specified
- Installers who want straightforward templates and predictable valve adjustments

Think twice if:
- The door is extra wide/heavy, or constantly exposed to strong crosswinds
- You need features like adjustable spring power, delayed action, or hold-open (this model doesn’t include those)
- The opening is exposed to harsh environments without any protection (salt spray, direct heavy rain); in that case, a closer with additional corrosion protection may be a better fit

Tips for a clean install

• Pick your mounting method before you start. Regular arm provides the strongest closing leverage; parallel arm is cleaner-looking and keeps hardware out of the way but sacrifices a bit of power. Top jamb is a good compromise on outward-swinging doors with narrow frames.
• Use the templates and double-check hole positions, especially on metal frames where a mis-drill is costly.
• Start with both sweep and latch valves opened enough for a slow, safe close. Then increase speed incrementally. It should take at least five seconds to close from 90 degrees to roughly 12 degrees for accessibility.
• Don’t use closing speed to overcome a misaligned latch or a tight weatherstrip. Fix the door/frame, then tune the closer.
• Recheck adjustments after a day and again after a week. Temperature changes can subtly affect hydraulic behavior.

Value

For a budget-friendly commercial closer, the Series 4000 punches above its price. The hardware is complete, the action is consistent, and the install is approachable whether you’re replacing an existing unit or starting from scratch. The fixed size 4 power is an honest specification; it’s right for a broad swath of doors without pretending to be a cure-all for high-wind or oversized openings.

The bottom line

The Series 4000 closer delivers exactly what I want from a workhorse surface-mounted closer: smooth hydraulic control, predictable adjustments, a clean non-handed install, and a durable, low-profile finish. It won’t replace a high-power, fully adjustable closer on a wind-battered exterior door, and it doesn’t offer specialty features. But for general commercial and residential use, it’s a dependable, well-executed option that installs without fuss and performs quietly in the background—exactly where a closer belongs.

Recommendation: I recommend the Series 4000 closer for medium to heavy traffic doors where a fixed size 4 spring is appropriate and a clean, reliable surface-mount is desired. It’s an affordable, durable choice with smooth operation and straightforward installation. If your opening regularly faces strong winds or you need adjustable spring power, consider stepping up to a higher-power model; otherwise, this one is easy to live with and hard to fault.
