FLEXIMOUNTS 4x8 Overhead Garage Storage Rack, Adjustable Garage Storage Organization System, Heavy Duty Metal Garage Ceiling Storage Racks, 600lbs Weight Capacity, Black

Ceiling space is the most underused square footage in my garage. After too many seasons of shuffling totes, skis, and camping gear around the floor, I installed the Fleximounts 4x8 overhead rack. The change was immediate: cleaner floor, better visibility of stored items, and a dedicated home for bulkier, long-term storage—all without building custom shelves or giving up wall space.

What it is and why it works

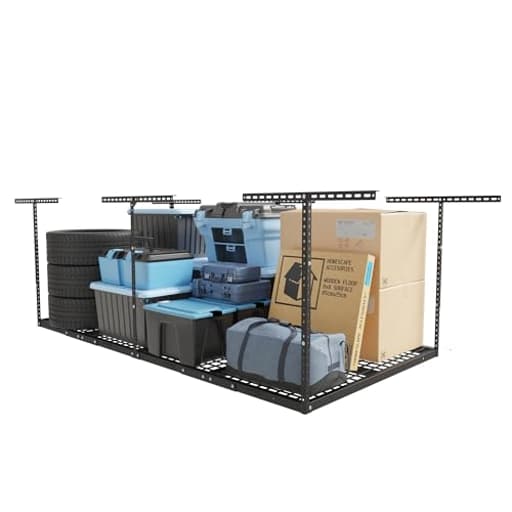

The Fleximounts 4x8 overhead rack is a ceiling-mounted, steel storage platform that measures 96 by 48 inches with an adjustable drop height from 22 to 40 inches. It’s rated to hold 600 pounds (factory tested to double that), and it spans multiple ceiling joists using long brackets that attach to two studs. The platform uses an integrated grid deck (the wire mesh is part of the frame), supported by six vertical posts. That structure is more rigid than racks that rely on separate wire panels, and I could feel the difference when I loaded it with heavy totes.

In terms of usable volume, the rack provides up to 105 cubic feet, which is a lot for seasonal gear, bulky items, and rarely used tools. Fleximounts sells hooks separately; they’re handy for hanging ladders, extension cords, and bikes under the grid.

Installation: plan carefully, then it goes smoothly

This isn’t difficult, but it’s not a slap-it-up project either. Precision matters. Here’s how my install went and what I’d do again:

• Preflight checks: The rack is designed for wood joists spaced 24 inches on center or less. If your garage has wider spacing, the rack can still work at 48-inch spacing, but not at in-between dimensions. Measure first and verify where your joists run. If you have metal joists or furring channels, consult an engineer or use the manufacturer’s approved hardware; the included fasteners are for wood.
• Stud finding: A good stud finder is helpful, but I confirmed locations with small pilot holes to guarantee I was on the center of the joist. The long ceiling brackets need to hit two joists, so accuracy is non-negotiable.
• Tools: Impact driver (used cautiously), drill bits for pilot holes, socket wrench, long level, tape measure, chalk line, and a ladder. A second pair of hands is very helpful when lifting the grid sections into place.
• Assembly approach: I assembled the deck in two 4x4 halves on the ground, then lifted and secured each half to the vertical posts before bolting the halves together. That sequence made it easier to manage solo for much of the job.
• Fasteners: The included M8 hardware is beefy. I drove fasteners with a drill on low torque to start, then finished by hand to avoid cross-threading or stripping. That approach saved time and preserved threads.

Total time was a couple of hours with one helper for the lifts. The included template and layout guidance were useful, but I still recommend sketching your joists on paper and snapping chalk lines so everything stays square.

Fit, clearance, and placement

The 22–40 inch drop range gives flexibility. I set mine to clear the open garage door by a couple of inches, then checked that my tallest totes could slide in from the side. A few placement notes:

• If you mount near a wall, leave enough clearance on the wall side to get a socket on the bolts during assembly and for future adjustments.
• Spanning multiple joists provides the strength you’re paying for. Orient the rack so the long brackets cross as many joists as possible.
• Over-the-door installs are a good use of otherwise dead space, but measure carefully with the door open to ensure proper clearance.
• Watch for garage door springs, opener tracks, lighting, and sprinklers; the rack is big, and it’s easy to encroach on something by an inch that matters.

Build quality and stability

The steel frame, integrated grid, and six-post support give the rack a confidence-inspiring feel. With a balanced load of totes and gear within the rated capacity, I noticed very little deflection. Like any hanging platform, there’s a small amount of side-to-side give if you push on it, but nothing that affected use. The finish is an even black powder coat that’s held up to scuffs from bins.

The long ceiling brackets are a standout feature. Because they catch two joists each, they spread the load and reduce the risk associated with hitting just one joist and calling it good. That, more than anything, makes this style of rack feel secure.

Day-to-day use

The main advantage is visibility and access. The grid lets you see what’s up there, and the 4x8 footprint accommodates large totes or odd-shaped items like coolers and holiday decorations. A few practical tips from living with it:

• Use uniform totes. Standard 27-gallon bins with latching lids pack efficiently on a 4x8 and prevent small items from falling through the grid.
• Label the short sides of bins so you can read them from a ladder. Keep “once-a-year” items toward the center and slightly lighter, more frequently needed bins near the edges.
• If you add hooks underneath for bikes or ladders, keep the heaviest hanging items near the vertical posts rather than mid-span.

I don’t climb on the rack, and I don’t recommend it. It’s designed as a storage platform, not a catwalk. A stable step ladder and a second person for heavy totes is the safer approach.

Capacity and confidence

Fleximounts rates the rack at 600 pounds, and that’s a realistic ceiling assuming proper installation into wood joists and a balanced load. The integrated deck distributes weight well, and the six vertical posts keep the platform from racking under load. As with any overhead storage, treat the rating as a limit, not a target—especially if your joists are older, undersized, or spanned longer than typical garage bays.

What I’d improve

No product is perfect. Here are a few areas where the experience could be better:

• More guidance for tricky ceilings: The instructions cover standard wood joists well, but a supplemental guide with best practices for non-standard construction (vaulted ceilings, furring channels, engineered trusses) would help a lot of garages out there.
• Hardware tolerance: I had a couple of bolts that felt tight threading into the deck. Working them in by hand solved it, but slightly looser coating in threaded holes would make assembly smoother.
• Optional lateral bracing kit: The rack is stable as designed, but an add-on diagonal or tension cable kit for users in high-seismic regions would be a thoughtful accessory.

Who it’s for

• Homeowners who need to reclaim floor space and have standard wood-joist ceilings at 24 inches on center or less.
• People with lots of seasonal gear, totes, and bulky items that don’t need frequent access.
• Those comfortable with careful measuring and drilling, or willing to hire installation help for the joist layout and mounting.

If you have unusual joist spacing, metal framing, or very low ceiling heights, you may need a different solution or professional guidance.

Safety notes

• Hit the center of every joist with your pilot holes. The long brackets depend on full fastener engagement for their rated strength.
• Pre-drill to the recommended diameter for the included M8 hardware to avoid splitting joists and to ensure proper torque.
• Balance your load and keep the heaviest items near the posts. Avoid point loads at the very edges.
• Don’t store liquids or chemicals overhead that could leak, and keep clear of openers and door hardware.

Bottom line

The Fleximounts 4x8 overhead rack is a strong, thoughtfully designed way to convert unused ceiling space into real storage. The long two-stud brackets, integrated grid deck, and six-post support create a platform that feels secure under meaningful load. Installation demands careful planning and accurate joist location, but with basic tools and a helper for the lifts, it’s a straightforward project that pays off immediately in usable space.

Recommendation: I recommend this rack for most garages with standard wood joist construction. It’s sturdy, space-efficient, and adaptable to a range of ceiling heights, and it cleans up a cluttered garage in an afternoon. The few nitpicks I have are about documentation and minor hardware fit—not performance. If you want an overhead solution that you can trust with real weight and daily use, this one earns its spot.
