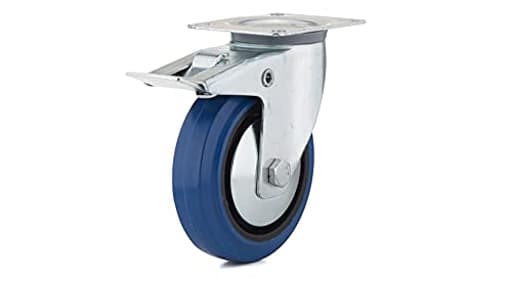

Richelieu Hardware (125 mm) F08339 Industrial Elastic Rubber Swivel Casters with Double-Lock Brake, 4-29/32 Wheel Diameter, Blue

Why I swapped my shop cart over to this caster

I needed a set of swivel casters with brakes for a shop cart that sees everything from indoor stocking runs to quick trips across a rough loading dock. After a few months on the Richelieu 125 mm elastic rubber swivel caster with the double-lock brake, I’m confident in what it does well—and where you should pay attention before you buy.

What stood out right away

The first thing I noticed is how compliant the elastic rubber tread feels compared to hard poly or phenolic wheels. At 125 mm (4-29/32 in) diameter and a 40 mm (1-9/16 in) tread, this caster rolls over expansion joints, small debris, and floor transitions without that jarring clatter you get from harder wheels. The tread is blue and non-marking; on sealed concrete and epoxy floors I saw no scuffs or streaks, even after tight pivots under load.

The double-lock brake is the other headline feature. It locks both the wheel and the swivel at the same time, which matters when you’re parked on a slight grade or loading a tall cart. With the brake engaged, the cart stayed planted and didn’t “hunt” as the swivel rotated—exactly what I want during loading and unloading.

Installation and fitment notes

• Mounting plate: 80 x 105 mm (3-5/32 x 4-1/8 in)
• Mounting hole diameter: 9 mm (11/32 in)
• Total installed height: 155 mm (6-3/32 in)

The plate size is common for medium-duty industrial casters, but it’s not universal. If your cart uses a compact 76 x 76 mm (3 x 3 in) pattern, you’ll need to drill new holes or add an adapter plate. The 9 mm holes fit M8 or 5/16 in hardware nicely. Use all four holes with grade-appropriate bolts, flat washers, and nyloc nuts or threadlocker—don’t skimp here. The installed height is worth noting too; switching from a smaller wheel will raise the deck, which can change ergonomics and center of gravity.

On my steel cart, the plate seated flat, the bolt pattern cleared the frame members, and the caster swung a full 360 degrees without interference. The brake pedal sits slightly outboard; give yourself a finger’s width of clearance so the pedal doesn’t nick the frame.

Rolling performance and maneuverability

Under an evenly distributed load around 250–300 kg across four casters, rolling effort stayed manageable. The swivel action feels smooth and predictable, with no gritty “detents” as you change direction. It’s easy to thread through narrow aisles, and the elastic tread maintains contact without feeling spongy.

The 125 mm diameter is a good sweet spot. It’s large enough to roll over cords and thresholds, yet compact enough that the cart doesn’t feel top-heavy. The 40 mm tread width adds lateral stability, which you notice when you side-load a cart against a wall or steer one-handed.

Brake behavior in real use

The double-lock pedal is shoe-friendly and takes a firm but reasonable press to engage. When locked, the caster truly stops moving—both the wheel and the swivel are fixed. That’s a meaningful upgrade over single-wheel brakes, which still allow the stem to pivot and the cart to “walk.”

Two notes from daily use:
- On very smooth floors with heavier loads, I prefer to lock at least two casters to resist torsional forces. That’s standard practice and not a knock on the mechanism.
- Releasing the brake requires a clear toe or heel strike on the release tab; if your cart’s lower shelf overhangs the caster, make sure the geometry gives you clear access.

Load rating and safety margin

The published capacity is 100 kg per caster. In the real world, casters rarely share load perfectly—turning, uneven floors, and starting/stopping shift weight to individual wheels. If you’re planning a four-caster setup, I treat the practical rolling capacity as roughly 60–75% of the simple sum to keep a safety margin. For a 4-caster cart, that puts you in a comfortable 240–300 kg working range. If you routinely need more, step up to a higher-rated caster or add a fifth wheel for center support.

Floor protection and cleanliness

The non-marking tread behaved as advertised on polished concrete, vinyl, and epoxy. No gray ghosts, no blue smudges. The tread stayed clean longer than I expected; when it did pick up dust, a quick wipe with a damp rag brought it back. I intentionally ran it through a detergent spill and a small petroleum drip, then cleaned both with mild solvent. No swelling, tackiness, or surface cracking—exactly what you want from a mixed-environment caster.

Temperature and environment

I put one caster on a cooler cart that moves in and out of a walk-in. The elastic rubber didn’t harden noticeably in the cold, and the brake still engaged positively after a few cycles. On a hot day across sunlit concrete, the tread didn’t soften or smear. I wouldn’t use any rubber caster on truly extreme, continuous heat, but for typical shop, warehouse, and light outdoor use, this one handled temperature swings without drama. Resistance to detergents, solvents, and water is a practical plus in maintenance and retail settings.

Noise and vibration

These run quieter than hard poly wheels, especially on imperfect concrete. The elastic tread damps high-frequency chatter, which translates to less operator fatigue and fewer rattles from what’s on the cart. If you work around customers or in an environment where noise matters, that difference is noticeable.

Build, bearings, and maintenance

The yoke feels rigid with clean fabrication, and the swivel head ran smoothly out of the box. The wheel rolls freely without wobble. There’s no obvious need for frequent maintenance—keep the tread clean, inspect fasteners periodically, and add a light lubricant to the swivel/wheel bearings as part of your routine if your environment is dusty or wet. I didn’t see grease fittings, so plan on wipe-and-lube rather than pump service.

One nit: blue tread shows dust sooner than black or gray. Purely cosmetic, but in customer-facing spaces you’ll be wiping wheels more often.

Compatibility and small caveats

• Plate size and hole pattern are the main fit check. Measure twice.
• The brake pedal needs clearance. If your cart apron sits low, mock up the swing arc before final tightening.
• Total height could shift shelf ergonomics. If you’re retrofitting from smaller casters, confirm reach and sightlines for the operators.

None of these are dealbreakers; they’re normal considerations for a caster upgrade.

Who this caster suits best

• Stock and utility carts that navigate mixed floors and need non-marking tread
• Light to medium industrial and retail settings where chemical resistance matters
• Workbenches or mobile machines that benefit from a true double-lock brake
• Applications where noise reduction and floor protection are priorities

If you’re building a very heavy cart, a high-speed platform, or using on rough outdoor surfaces daily, look at higher-capacity polyurethane or pneumatic options. For the typical shop, warehouse, or retail cart, this caster hits a practical balance of grip, protection, and control.

Final take

After months of use, this Richelieu 125 mm elastic rubber caster has proven reliable, easy to live with, and kind to floors. The double-lock brake is effective, the rolling action is smooth, and the material shrugging off water, detergents, and occasional petroleum drips makes day-to-day maintenance simple. Just confirm your plate pattern and allow space for the brake pedal, and you’ll be in good shape.

Recommendation: I recommend this caster for medium-duty carts and benches that need secure braking and non-marking, low-noise rolling. It offers a thoughtful mix of capacity, control, and durability without complicating installation or maintenance. If your loads are within the realistic working range and you value a true swivel lock, it’s an easy pick.
