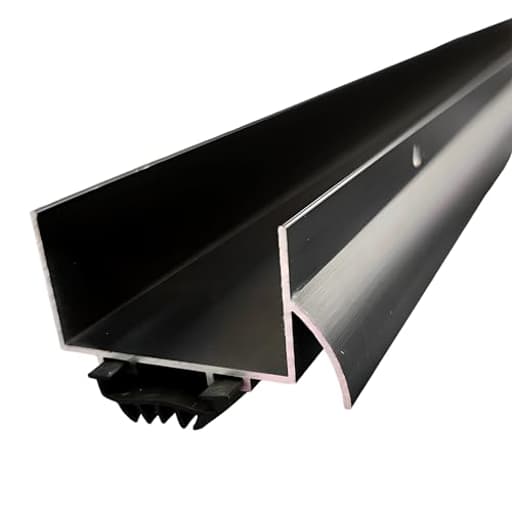

KC Hardware U Shaped Aluminum Door Bottom Sweep with Drip Cap, Weather Stripping Seal for Exterior Doors, 1 3/4" Width, Black

Why I chose this sweep

I’ve installed more door sweeps than I care to admit—everything from flimsy stick‑on vinyl to heavy extruded aluminum. I picked up the KC Hardware aluminum door sweep for a recent front‑entry refinish where I wanted a tougher, cleaner‑looking solution than the usual flexible spoiler-style sweeps. The brief was simple: stop drafts, shed rain, and look like it belongs on a proper exterior door. This one checked the right boxes on paper: U‑shaped wrap, aluminum body, integrated drip cap, replaceable rubber/vinyl insert, and a standard 36-inch length for a 1‑3/4-inch thick door.

Build quality and design

This is a classic U‑channel sweep in black with a formed drip cap on the exterior face. The aluminum stock is straight and adequately rigid; it won’t kink under normal handling, and it’s more substantial than the big‑box plastic sweeps. The finish is a uniform black that blends well with darker hardware and modern doors; it’s not a glossy powder coat, so minor scuffs are less conspicuous, but you can still scratch it if you’re careless during cutting.

The seal itself is a press‑in insert. It has enough compliance to bridge small irregularities at the threshold without dragging. On a properly set threshold, you’ll get a firm contact line without the “door slam” effect that comes from overly stiff fins. I also like the built‑in drip cap: it stands proud just enough to push water off the face and away from the threshold, which helps reduce splashback and the little puddle that often forms right at the sill.

A couple of design realities to note:
- It’s sized for standard 1‑3/4-inch exterior doors. If your door is a nonstandard thickness, this won’t be a happy fit.
- There’s no built-in height adjustment. The U‑channel sets the sweep’s position; the seal compresses, but you can’t raise or lower it independently. You’ll want a threshold that’s set correctly.

Compatibility and fit

On a typical prehung exterior door with a metal or composite sill, the KC Hardware sweep wraps cleanly and seats square. It’s 36 inches long, so you’ll almost certainly need to trim it. The channel depth is forgiving enough to swallow a slightly out‑of‑square bottom edge, but if your door is severely cupped or your threshold has a pronounced crown, expect to spend time dialing in contact.

If aesthetics matter, the clean black extrusion compliments modern and painted doors. On a door with highly figured wood and hand-cut moldings, it reads more “hardware store tough” than bespoke—functional, not fussy.

Installation: what worked for me

You can install this in place, but I prefer pulling the door. The cut is cleaner, deburring is easier, and you can align the sweep precisely without fighting hinges.

Tools and steps I recommend:
1. Measure and mark. Close the door and mark the inside of the jambs onto the door bottom. Subtract 1/8 inch total (1/16 per side) to avoid rubbing the jamb weatherstrip.
2. Slide the rubber/vinyl insert out of the channel before cutting the aluminum. This prevents chewing the insert and gives you a clean cut.
3. Cut the extrusion with a fine‑tooth hacksaw or a non‑ferrous blade on a miter saw. Keep the cut square.
4. Deburr aggressively. Inside and outside edges matter—sharp burrs will gouge your door skin and make sliding the channel on frustrating.
5. Dry fit. Slide the channel on and check reveal, latch clearance, and threshold contact. The drip cap belongs to the weather side.
6. Fasten. Screws give the most secure hold. Pre‑drill and use stainless or coated exterior screws through the provided holes (or create your own evenly spaced along the interior leg). If you’re avoiding holes, an exterior‑grade construction adhesive or VHB tape can work, but screws outperform in seasonal movement.
7. Seal the seam. A thin bead of color‑matched exterior sealant along the exterior top edge of the U‑channel keeps blown rain from wicking into the slot.
8. Reinsert and trim the seal. Once the aluminum is set, slide the insert back in and trim it flush with a sharp utility knife.

Two quick pro tips:
- If you find the insert a little loose, a discreet crimp with pliers at the ends of the slot or a dot of silicone keeps it from migrating.
- The ends of the drip cap are square. If your jamb seals are delicate, file a tiny relief notch on each end so the drip edge doesn’t scuff your side gaskets when the door closes.

Total time with the door off hinges: about 30–45 minutes including careful deburring. In place: closer to an hour.

Performance in daily use

After installation, the immediate difference was the absence of daylight at the sill and a noticeable reduction in winter drafts. The door now meets the threshold with a soft, continuous contact, and the latch doesn’t feel like it’s fighting against a rubber wall. The drip cap quietly does its job in the rain—water is thrown clear rather than washing back under the door. On a windy day, there’s far less cold air spilling onto the entry flooring.

Noise transmission at the bottom edge is also reduced. It’s not marketed as acoustic sealing, but plugging that gap noticeably dampens street noise and insect ingress. The seal glides over a smooth aluminum threshold without chatter; on rough concrete or pitted sills, you’ll hear some scrape because the insert is not a brush—address the threshold surface if that’s you.

Durability and maintenance

The aluminum body is the main reason to choose this style: it shrugs off bumps from shoes and delivery packages, and it won’t droop with age like all‑vinyl sweeps. The black finish has held up, though I do see light wear lines where grit occasionally rides between the seal and sill—normal for any sweep. The insert wipes clean with a damp cloth; a quick clean before winter and a dab of silicone spray keeps it supple.

If you ever need to replace the insert, it’s a press fit, so swap‑outs are straightforward. Just be mindful of the retention; a pinch at the ends helps keep new inserts put.

Where it shines

• Solid weather protection. The combination of a firm channel and compliant insert does a better job than flex-only sweeps at stopping drafts and water.
• Clean, purposeful look. On painted or dark doors, it reads as original hardware rather than an afterthought.
• Serviceable construction. You can remove, recut, refinish, or replace the insert without junking the whole piece.
• Straightforward install. With basic tools and a careful cut, you get a pro-looking result.

Where it falls short

• No height adjustment. If your threshold isn’t true, you can’t micro‑tune the seal height. You’re relying on insert compression alone.
• Insert retention can be loose. It’s fine in use, but I recommend securing the ends to prevent the insert from creeping.
• Square drip-cap ends. Without a small relief notch, the cap can kiss your vertical weatherstrips and leave a mark.
• Finish sensitivity. The black coating resists scuffs but will show a missed burr or an errant tool slip during install.

Alternatives worth considering

• Adjustable sweep/threshold combos if your sill is out of level or you need seasonal tuning.
• Brush-style sweeps for rough surfaces or uneven concrete where a rubber/vinyl lip will snag.
• All‑vinyl wraparounds if budget is critical and aesthetics are secondary—though they tend to deform sooner.

Final thoughts and recommendation

The KC Hardware aluminum door sweep hits the mark for a durable, tidy-looking upgrade that actually improves comfort. It installs with straightforward shop skills, it seals reliably against wind and blown rain, and it brings a professional finish most plastic sweeps can’t match. You do need to give the installation the care it deserves—remove the insert before cutting, deburr meticulously, and consider notching the drip cap ends to be kind to your jamb seals. Once in, it’s set‑and‑forget apart from occasional cleaning.

I recommend this tool for anyone with a standard 1‑3/4-inch exterior door who wants a long‑lasting, low‑maintenance solution and a better seal than stick‑on or flexible-only sweeps can provide. If your threshold is out of plane or you need adjustable height, look to an adjustable system instead. But for a typical front or back door with a decent sill, this sweep is a smart, sturdy choice that looks like it belongs and performs like it should.
