Orbit 57894 4-Station Outdoor Swing Panel Sprinkler System Timer

Why I picked this controller

I needed a dependable, no-drama way to automate four irrigation zones without adding another app to my phone. My old mechanical timer was limping along, and I wanted something I could mount outside, wire cleanly, and set once with confidence. The Orbit 4‑station timer fit that brief: a weather-ready cabinet, a straightforward interface, and enough scheduling flexibility to handle lawns, beds, and a slope that’s prone to runoff.

Setup and build

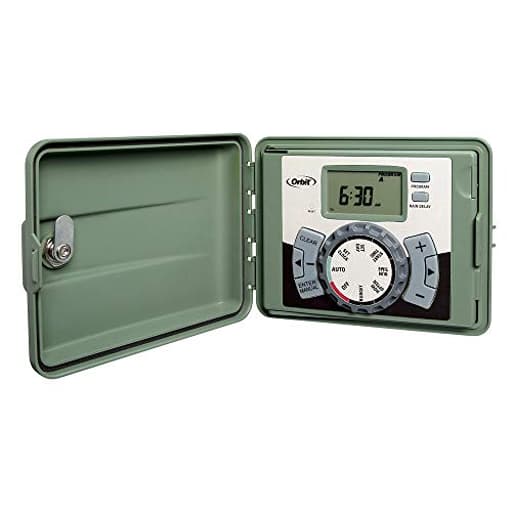

The cabinet is solid for the price and purpose. It’s designed for indoor or outdoor use and ships with a locking door and two keys—handy if you’re installing it where curious hands might wander. The swing panel is more than a nicety; it makes wiring practical. Instead of fighting the cabinet door or contorting a screwdriver at odd angles, I could swing the faceplate out and get full access to the push‑wire terminals.

Wiring with push‑in connectors is quick and tidy. I terminated four 24 VAC valves and a common, and the labeling inside is clear. The controller uses standard 24 VAC output, so it plays nicely with valves from Orbit, Hydro‑Rain, and other big brands—nothing proprietary or fussy here.

A note on power: this model is built for North American 120 V mains. It belongs on a properly protected circuit (GFCI if outdoors) and shouldn’t be plugged into 230 V regions as‑is. That may sound obvious, but it’s worth stating if you’re outfitting a property outside the U.S.

Mounting was straightforward: two screws into a stud outside my garage, a bit of conduit to tidy the low‑voltage bundle, and the unit was secure. The enclosure seals well enough for rain and dust, and the hinge action feels durable, not flimsy.

Programming: simple where it should be, flexible where it matters

Orbit’s “Easy Set Logic” is essentially a dial‑and‑button interface with a readable display. If you’ve used a traditional irrigation controller, you’ll feel at home. You build schedules around three programs (A, B, and C). Each program can have multiple start times and applies to any stations you assign to it. Run times are set per station.

That architecture has pros and cons:

• Pros: It mirrors how many yards are organized. You can put turf zones on Program A at dawn, beds on Program B in the evening, and, say, drip lines on Program C every few days. It’s easy to see what’s scheduled and when.
• Cons: If you prefer to craft a completely independent calendar for each station—start times, days, intervals all separate—you’ll need to adjust to the “program” model. The controller doesn’t let every station have its own stand‑alone start times outside of A/B/C. That’s normal in this class, but it’s still worth noting.

Two features stand out:

• Cycle and soak. For a sloped lawn, I split a 15‑minute watering into three five‑minute cycles with soak windows in between. That alone reduced runoff and got more water into the root zone.
• Stacking (overlapping runtime management). If two programs would otherwise run at the same time, the controller queues them so only one valve runs at once. That’s a lifesaver if your water pressure can’t support simultaneous zones.

There’s also a rain‑delay function that skips watering without forcing you to edit programs. It’s quick to reach on the dial, and it’s the right feature for a controller that isn’t tied into weather services.

One extra I tried: running an indexing valve. By wiring the single valve to the common and a single station and setting multiple start times with short pauses, the controller advanced the mechanical indexer cleanly through four outlets. It’s a niche use case, but it worked reliably.

In use

Once programmed, it’s been hands‑off. Start times fired consistently, and stacking prevented any accidental double‑runs. The cabinet lock has already proven useful with kids bouncing basketballs nearby; the door stayed secure, and the faceplate hasn’t taken any abuse.

The display is utilitarian but legible outdoors. The UI choices are logical: set date/time, pick your program, choose watering days or intervals, pick start times, assign station run times, and you’re finished. Making a seasonal tweak is a matter of bumping run times or adjusting the interval—no need to tear up the whole schedule.

Pressure management is a quiet win here. Because the controller doesn’t try to run multiple zones at once, I didn’t see sprinklers sputter or mis‑pattern due to low pressure, even with a well pump supplying the system.

What it isn’t

This is not a smart, Wi‑Fi‑connected controller. There’s no app, no remote alerts, no automatic weather skipping or ET‑based adjustments. If you want real‑time rain forecasts, flow sensing, or voice integration, you’ll be happier stepping up to a connected model. Likewise, it’s a four‑station unit. If you need six, eight, or twelve zones, pick the appropriately sized model from the same family or another brand’s expanded lineup.

It’s also not the controller for someone who insists on per‑station schedules completely decoupled from programs. You can get very granular by using all three programs and multiple start times, but the mental model remains “programs first.”

Finally, because it’s designed for 120 V regions, it’s not a drop‑in for 230 V mains. Using a step‑down transformer or a different region‑specific model is the safer route.

Strengths

• Hardware that feels built to last: sturdy outdoor cabinet, lockable door, and a swing panel that actually makes wiring easier.
• Clean, reliable operation: stacking ensures single‑zone operation, and cycle‑and‑soak reduces runoff on challenging soils.
• Straightforward programming: three programs, multiple start times, per‑station run time control—no complicated menu labyrinth.
• Broad compatibility: standard 24 VAC outputs work with major valve brands, and it handled an indexing valve with the right programming.
• Good value for a four‑zone, outdoor‑rated unit without superfluous frills.

Trade‑offs

• No network features: you won’t get weather‑based skips or app control.
• Program‑centric scheduling: powerful enough for most yards but less flexible than true per‑station calendars.
• Region limitation: intended for 120 V mains; not suitable for direct use on 230 V systems.

Who it’s for

• Homeowners who want a reliable, easy‑to‑program controller for up to four zones, especially where outdoor mounting is needed.
• Anyone who prefers physical controls over smartphone apps and cloud accounts.
• Yards that benefit from stacking and cycle‑and‑soak—slopes, clay soils, or systems with marginal pressure.

If you need more than four zones, insist on app control, or want weather‑aware automation, look higher in the range or toward a smart controller.

Recommendation

I recommend the Orbit 4‑station timer for straightforward, durable irrigation control where simplicity and reliability matter more than connectivity. It installs cleanly, the interface makes sense, and its watering features—cycle‑and‑soak, stacking, and rain delay—solve real problems without overcomplicating the setup. The lockable outdoor cabinet and standard 24 VAC compatibility round out a package that should keep most four‑zone systems on schedule with minimal fuss. Skip it only if you require app‑based control, need more zones, or are installing in a 230 V region.
